150 pcs Quick Splice Wire Connectors, Solderless Snap Electrical Connector, Blue, Wire Splice Connector, Insulated Wire Crimp Connectors Terminal Joint 22-10 AWG

Brand: PRECIHW

Color: Mix-150pcs

Features:

• Package Included: 150 quick splicers for gauges 22-18 (T-tap female) Red 60PCS; 16-14 Blue 60PCS; and 12-10 gauge Yellow 30PCS .
• Wire Splice Connecors: The wire splicers connectors is a very quick and reliable method, Join 2 lengths of wire together or tap into existing line. No need to strip the wire, ideal for complex circuits.
• Just Insert Wires and Snap Shut: Solid, Permanent Connection without Solder. Fast and easy way to splice an electrical circuit into an existing wire.

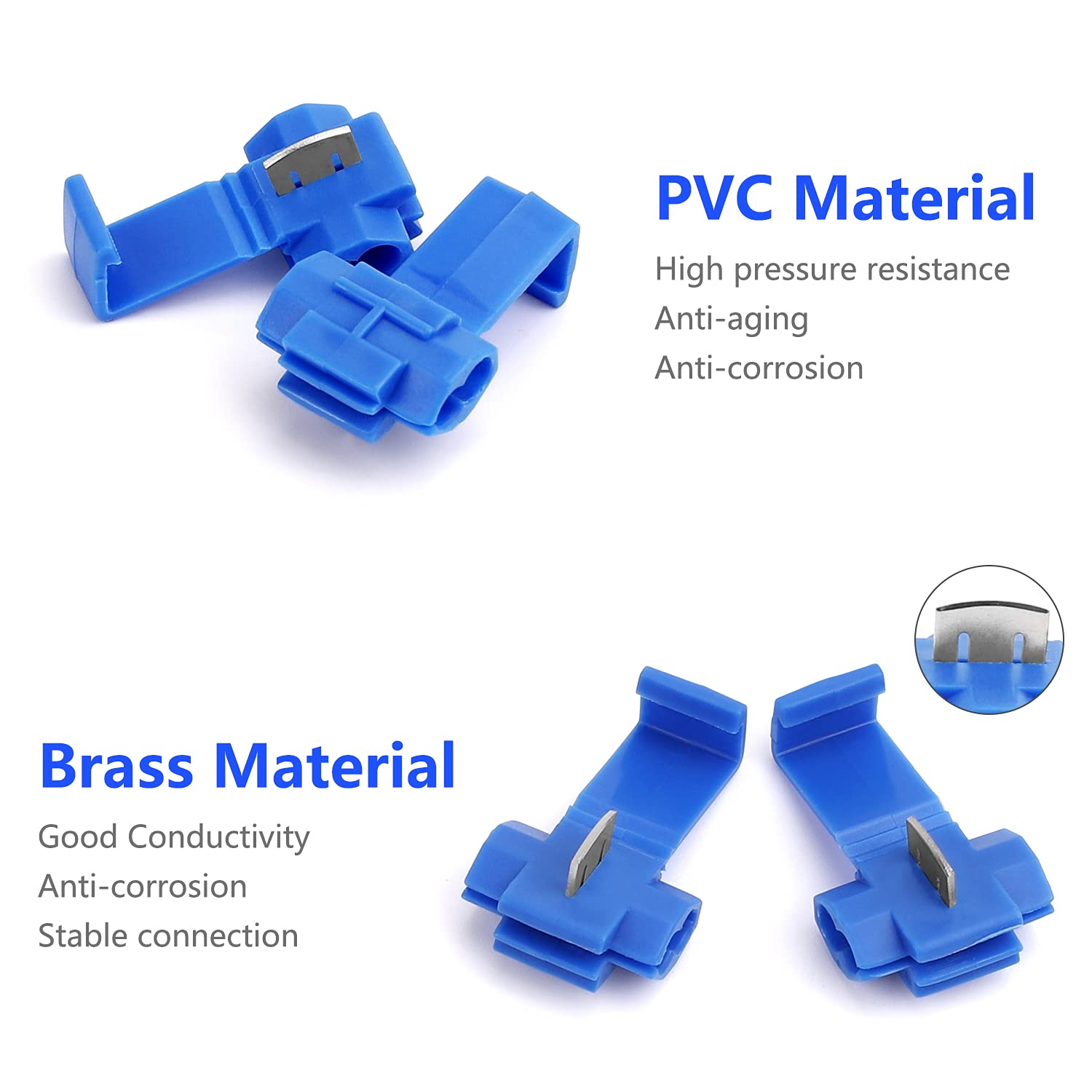

• High Quality: Made from excellent insulated and fire-retardant PVC materials and high purity copper, good insulation and conductivity.
• Wide Application: The quick splice connectors are widely used in the wire connection for household and industrial purposes. Ideally used in marine and automobile applications.

Binding: Tools & Home Improvement

model number: L3004-JXJM-V2

Part Number: L3004-JXJM-V2

Details: 100pcs Solderless Quick Splice Snap Wire Connector, Splice Connector Double Run Solderless Inline Splice Connectors, Blue Electrical IDC

Specifiation:
Type: Quick Splice Wire Terminals
Color: Blue, Red and Yellow
Conductor CSA (Cross Sectional Area): Wire Range:
Red for 0.75-2.5mm²;
Blue for 0.75-2.5mm² ;
Yellow for 4-6mm²
Suits Cable / Wire Sizes:
Red: 22-18 AWG;
Blue: 18-14 AWG ;
Yellow: 12-10 AWG
Voltage Level: 300V Max. 75℃
Application: Ideally used in automobile audio equipment, lighting, electrical control, fixtures, control circuits, home appliances, machinery and other electrical connection parts.

Features:
● No stripping of the wire is necessary
● Quickest & easiest way to splice, split, or tap wires
● Non-corroding metal contact blade, durable insulating clam body
● Adding a tap to an existing wire without cutting it is easier, safer and quicker

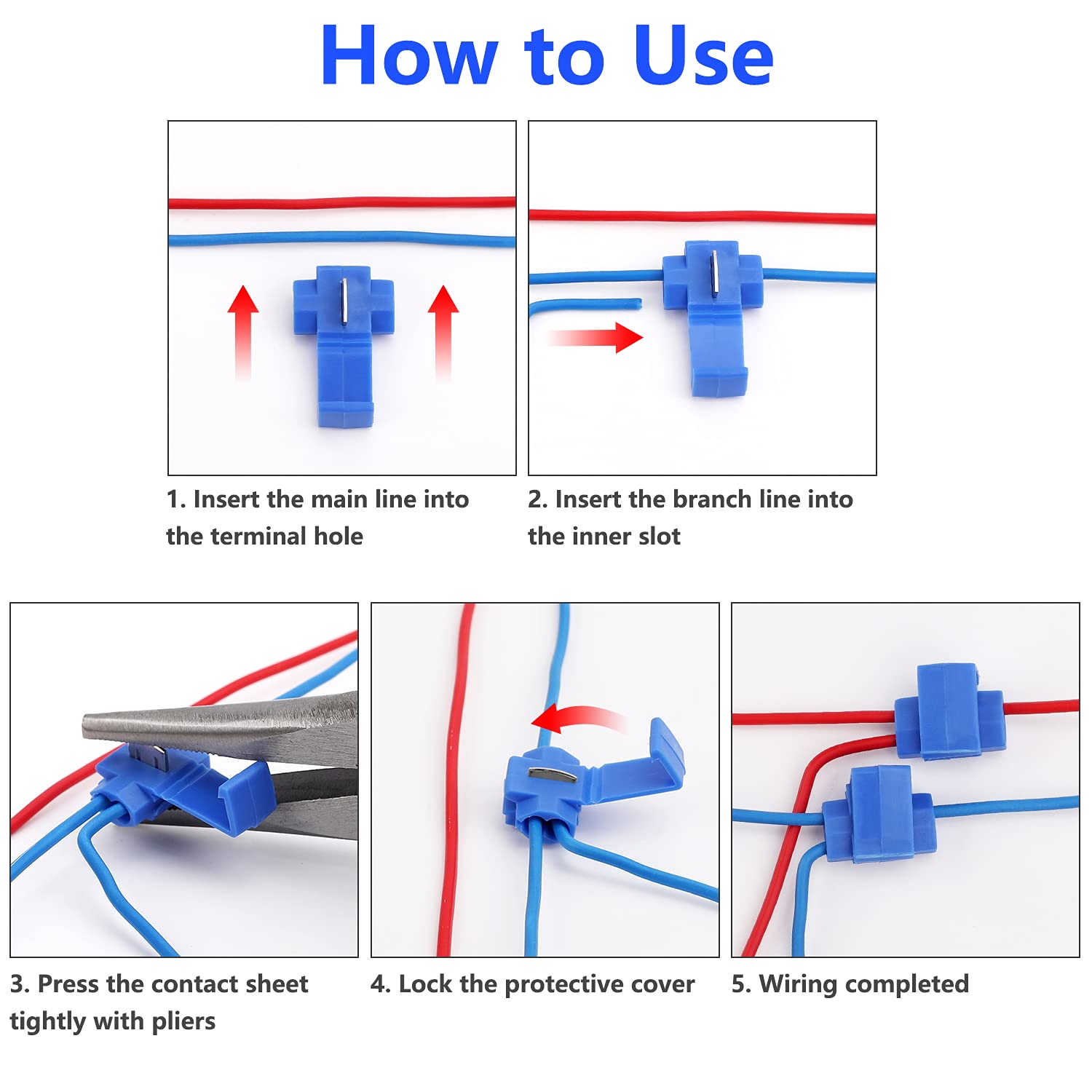

How to Use:
1. Insert the main line into the terminal hole.
2. Insert the branch line into the inner slot.
3. Press the contact sheet tightly with pliers.
4. Lock the protective cover and complete the connection.

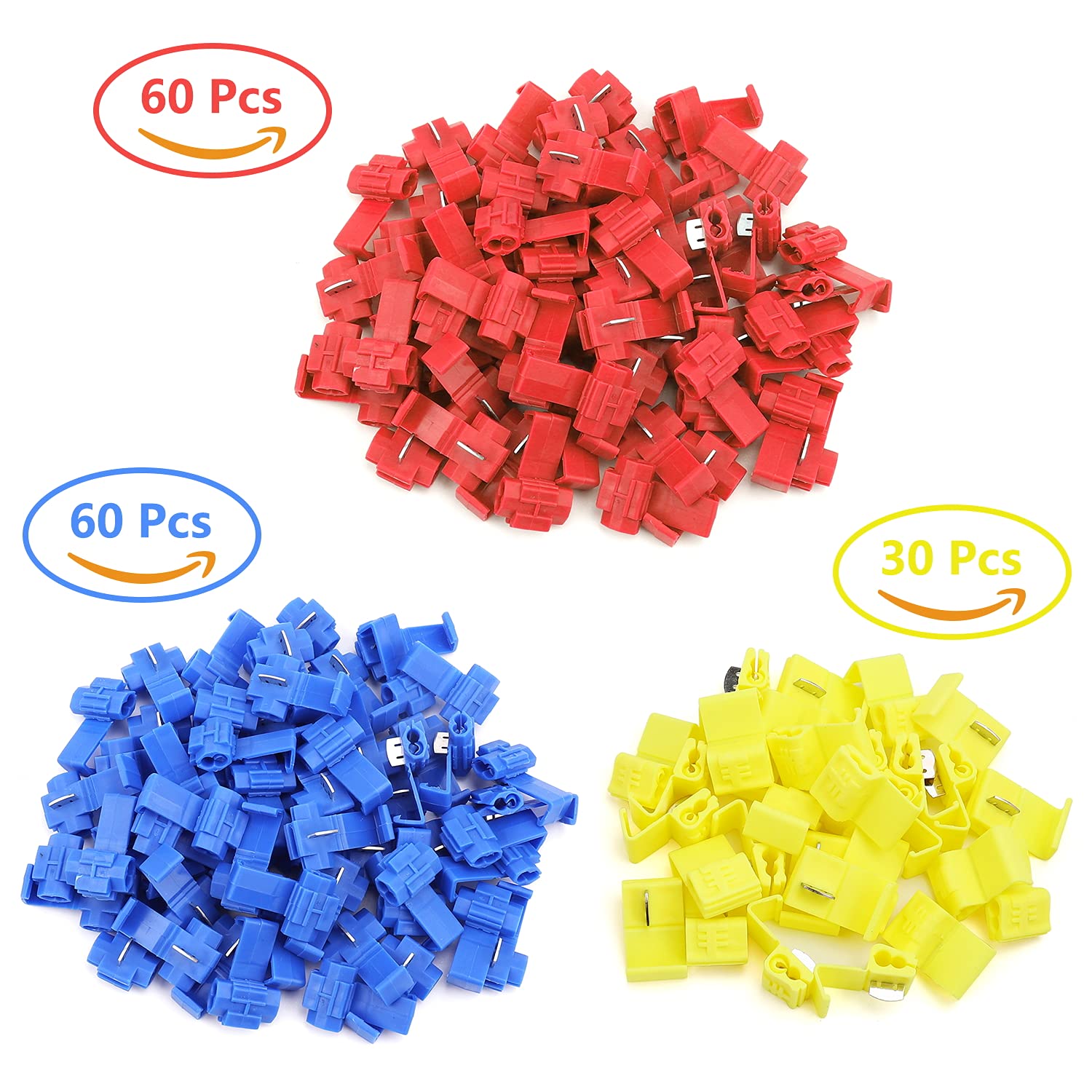

Package Included:
60pcs 22-18 AWG Scotch Lock Wire Connectors
60pcs 18-14 AWG Wire Connectors
30pcs 12-10 AWG Wire Connectors

Kindly Note:
It is better that the pliers you use to squeeze the connector together are able to maintain the jaws parallel to each other.

Package Dimensions: 7.5 x 6.5 x 2.0 inches
