AnoleX 1.5KW CNC Spindle Motor Kits SP-15A, Adjustable Speed Φ65mm Air Cooled VFD Spindle with ER11 Collets for CNC Router Machine

Brand: AnoleX

Features:

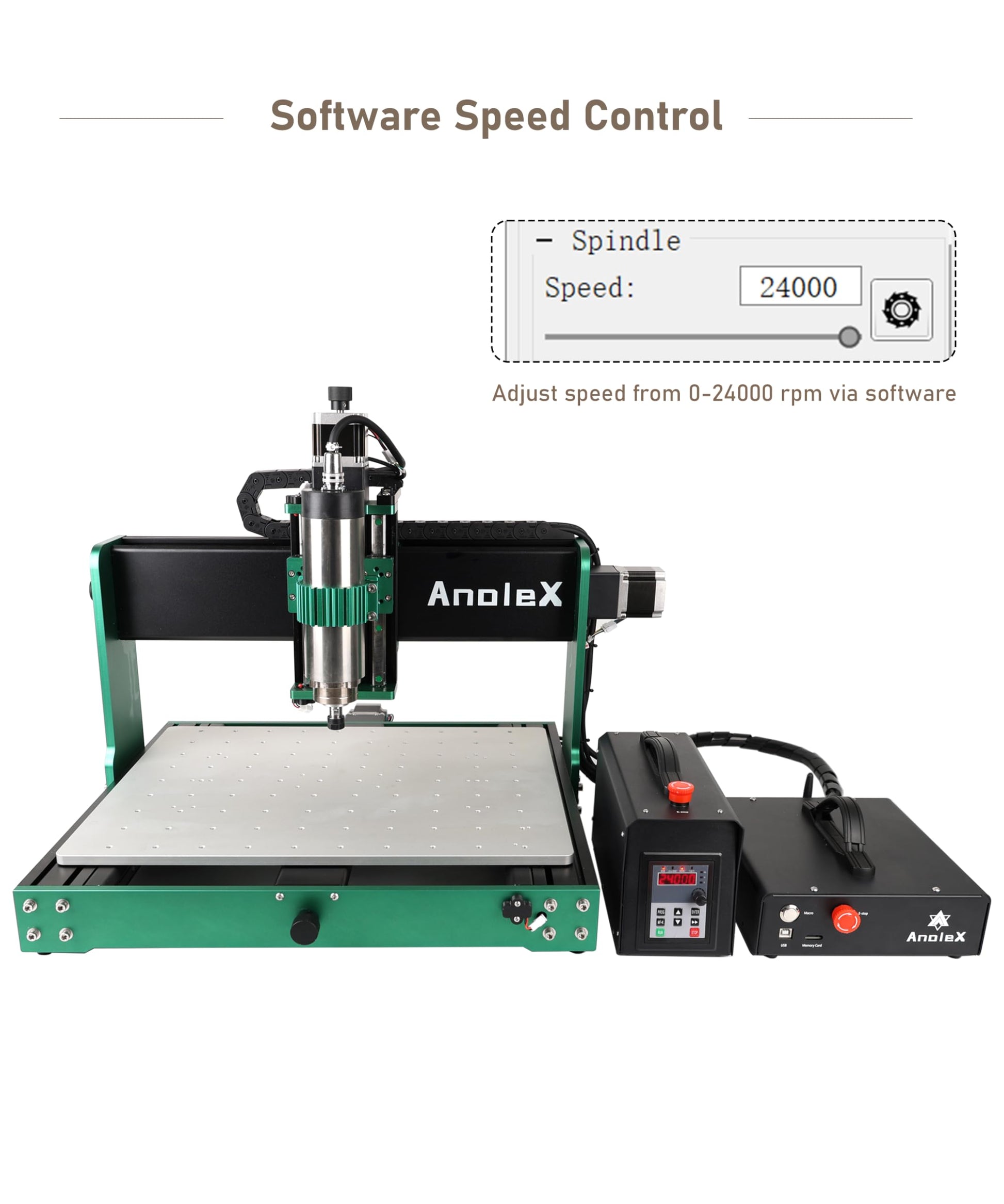

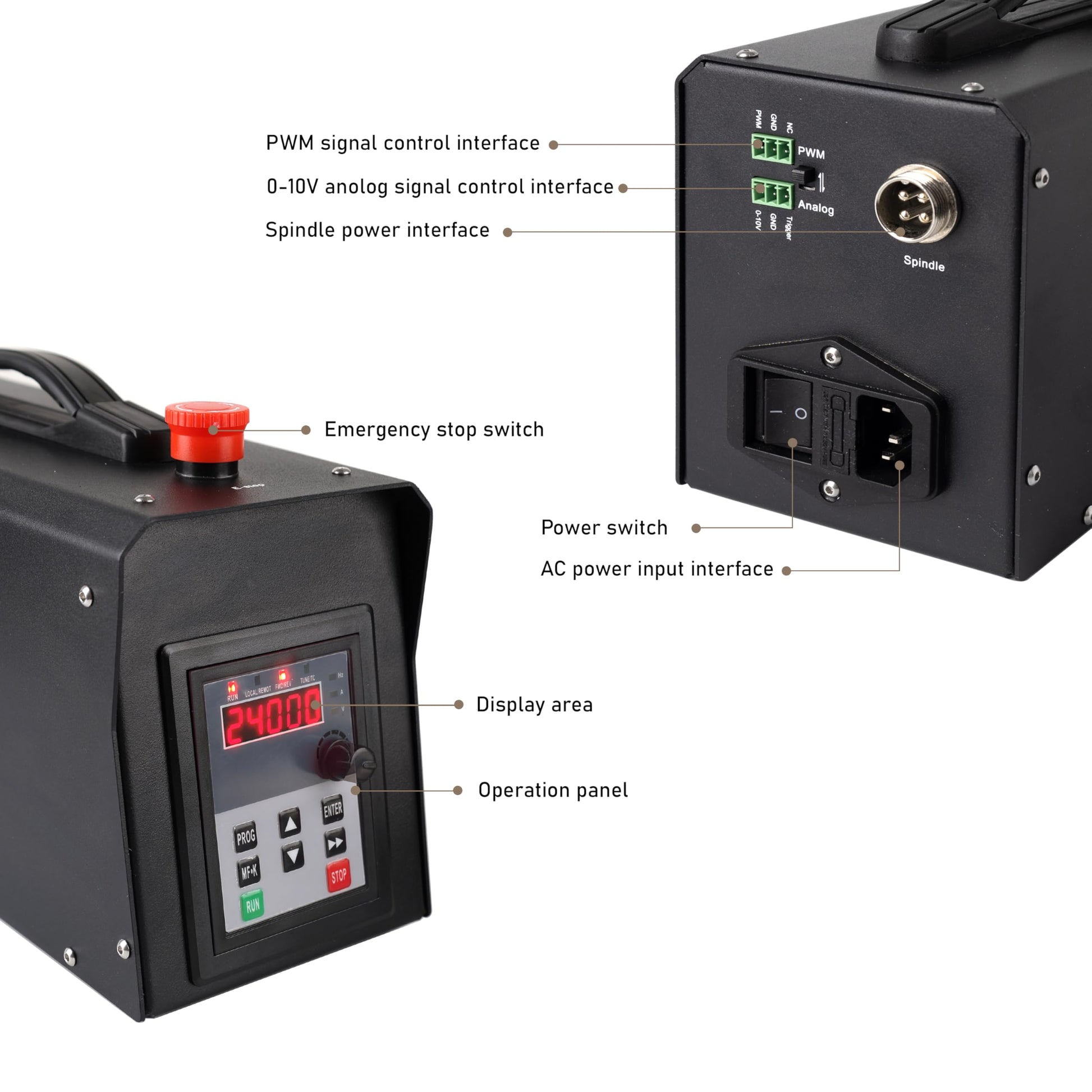

• [Upgrade] With built-in VFD inverter and emergency stop, you can control the spindle via gcode (S value). Support 0-24000 rpm speed adjustment! (The spindle will rotate only when it is larger than S1200)

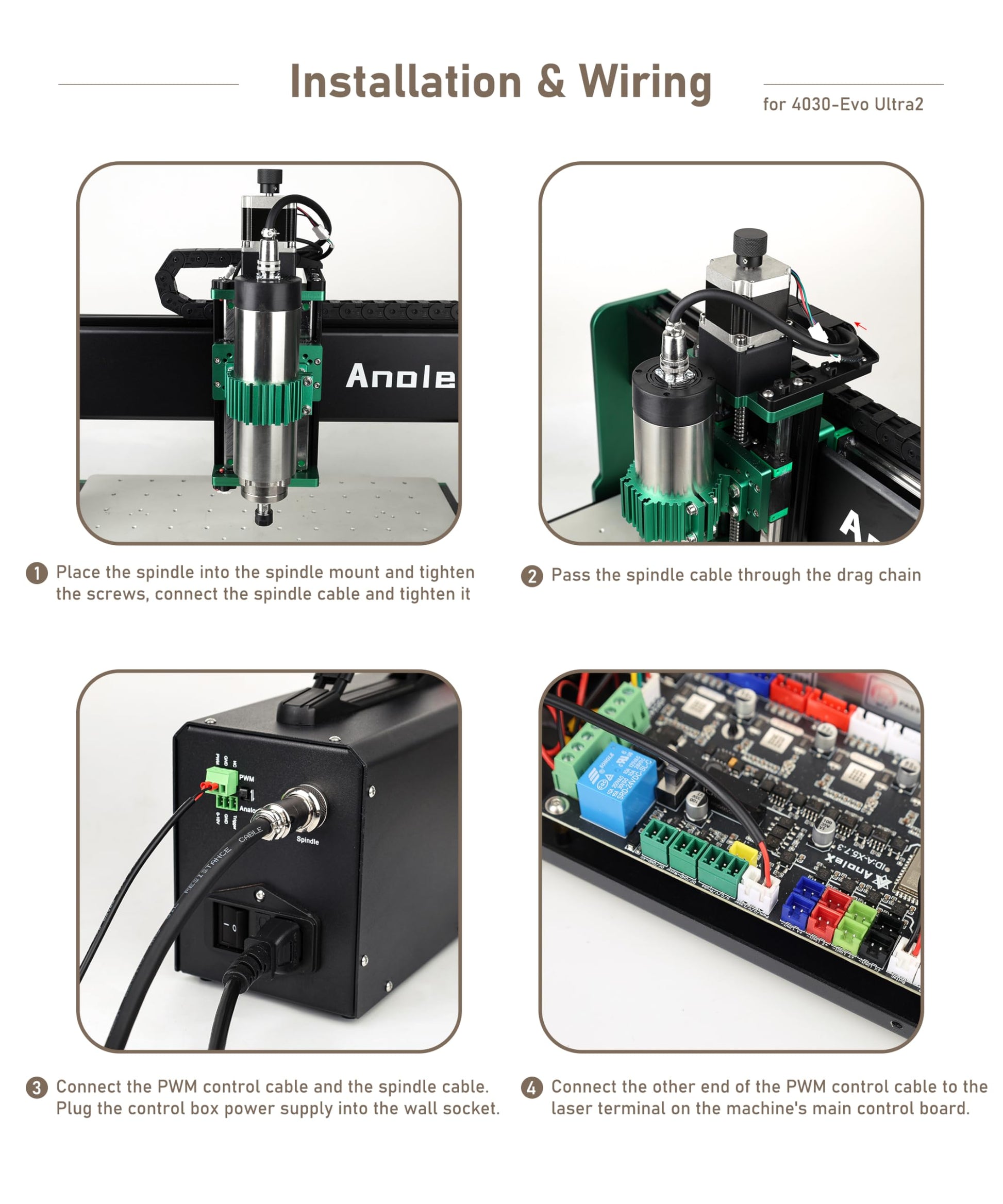

• [Easy to Use] Get started right away with no programming required. Connect the controller and the spindle both through the aviation plug, so don't worry about wrong wiring. Specifically designed for 3020Evo/3030Evo Pro/4030-Evo Ultra and other brands CNC Router
• [Precision Spindle Motor] Φ65mm, 1.5KW spindle motor built-in 4 high-quality steel bearings and advanced dynamic balancing tech for reduced noise and increased stability. Precision accuracy of 0.005mm is 10x better than standard motors. Speed range of 0-24000 rpm
• [Versatile Usage] Easily cut through metal (6061 aluminum, brass, stainless steel), as well as woods, acrylic, PVC, nylon, carbon fiber, and more

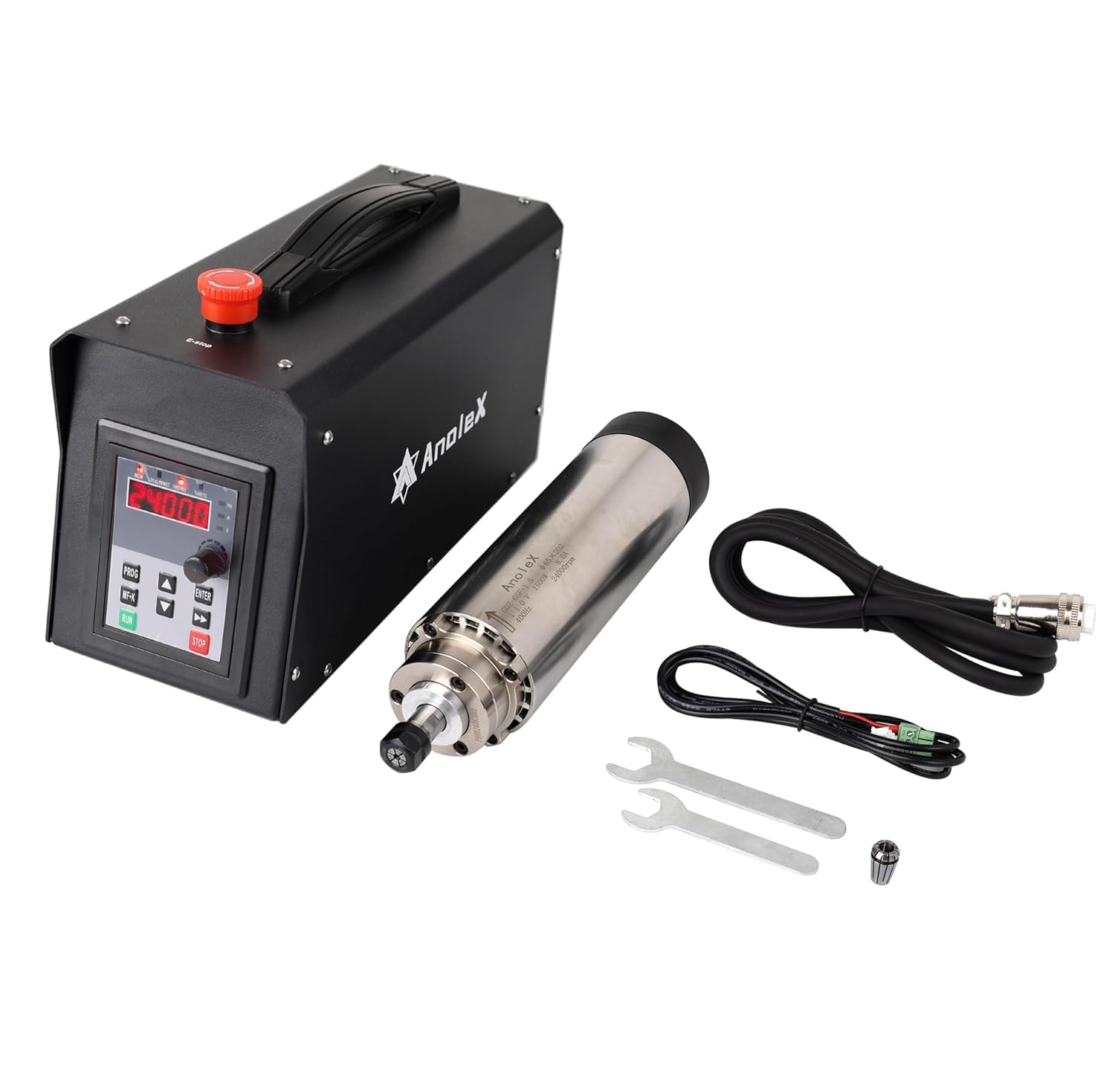

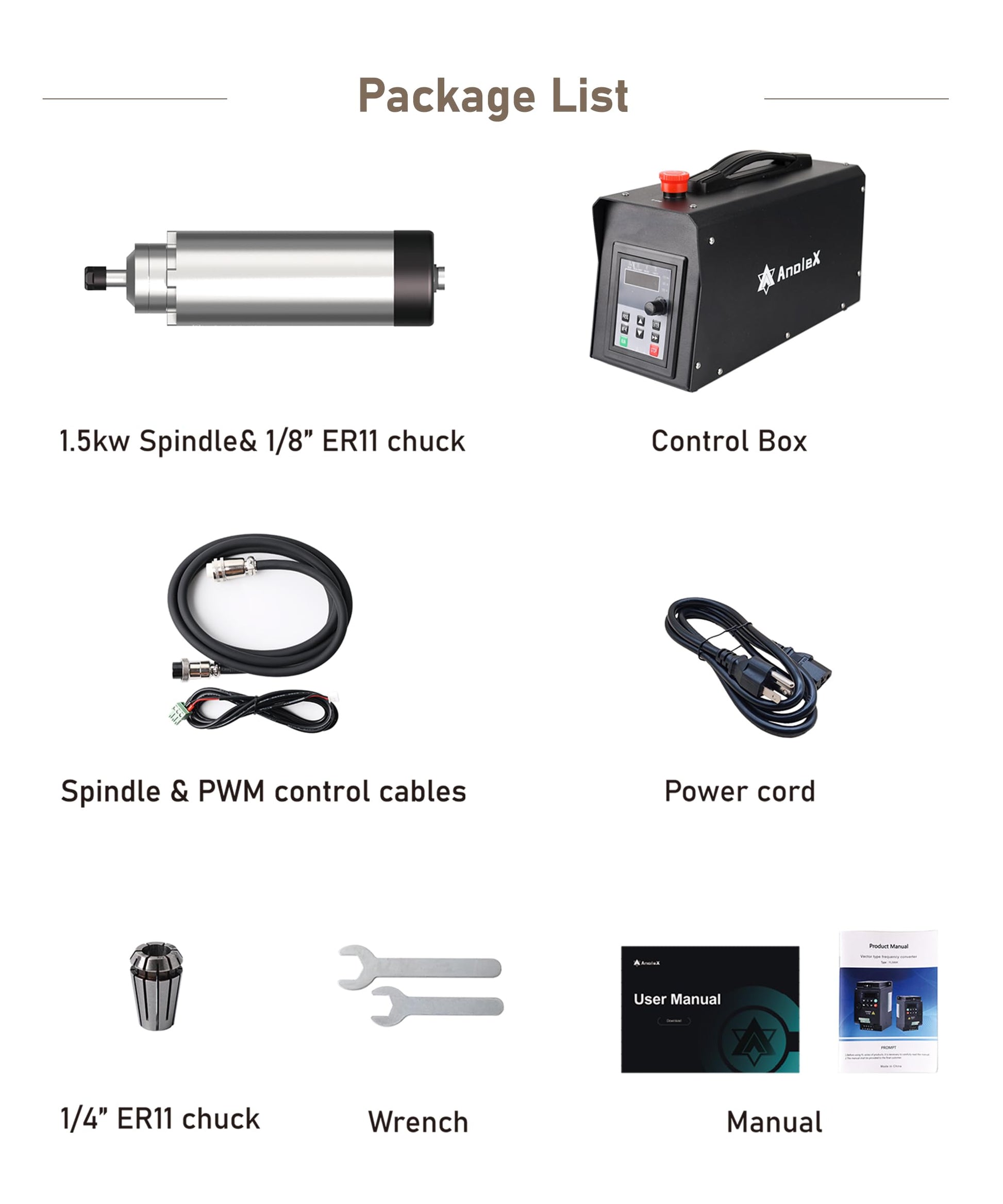

• [Full Set Included] Everything you need: 1x 110V 1.5KW air-cooled spindle motor, 1x VFD controller, 2x ER11 chucks (1/8", 6mm), 1x 1.5m 18AWG aviation spindle cable, 1x 1.5m PWM control cable, 1x power cord, 2x wrenches

model number: ANX-SP-15A

Part Number: ANX-SP-15A

Details: Material: Stainless Steel

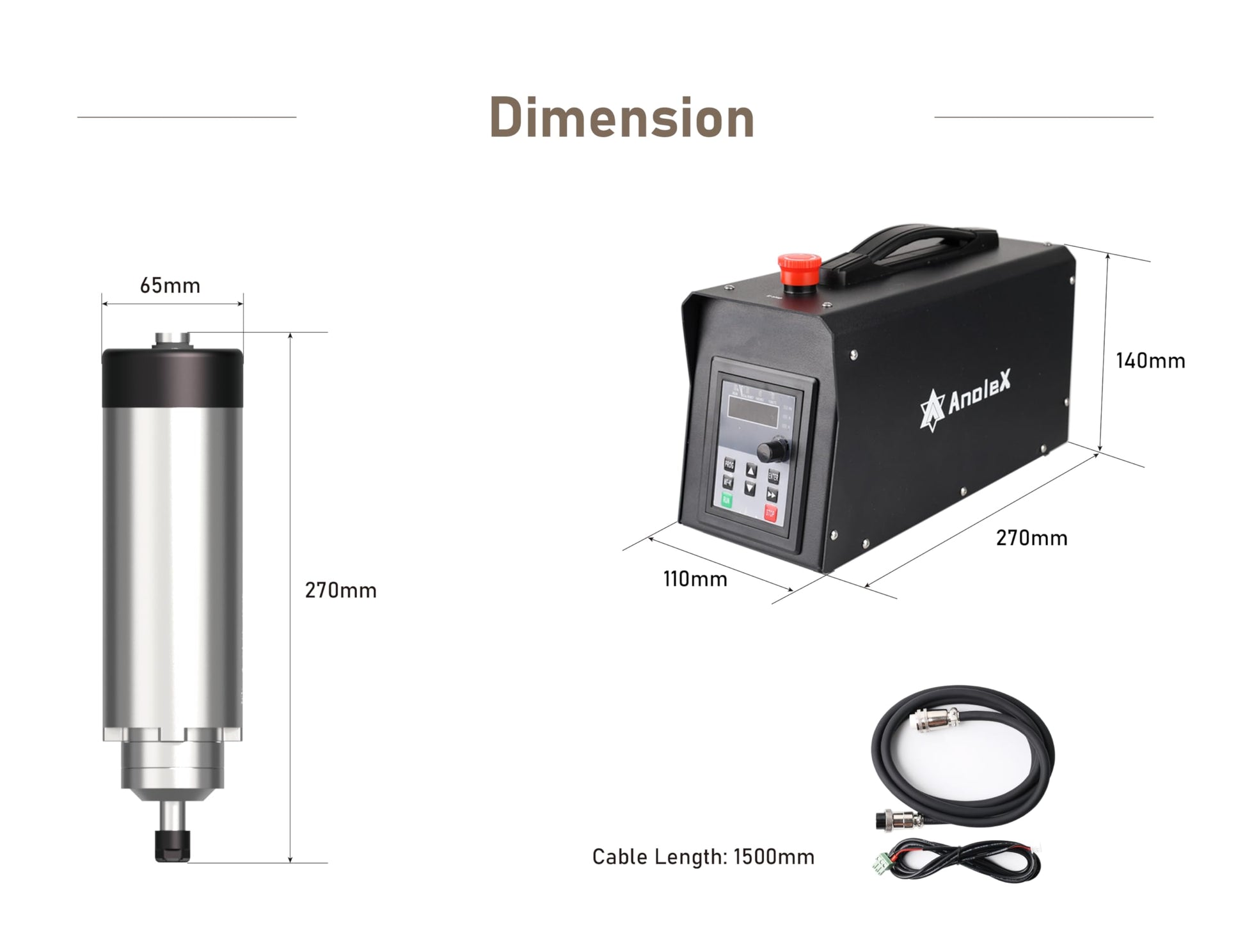

Spindle Size: Φ65x270mm
Power: 1.5KW
Input Voltage: 110V AC
Frequency: 0-400Hz
Speed: 0-24000rpm
Cooling: Air-cooled
Runout off: Less than 0.005mm
Bearing Lubrication: Grease
Collet size: ER11-1/8"&6mm
Bearings: 4 bearings (C7005x2 + C7002x2),P4 class, Angular contact bearings
Spindle Net Weight: 2.92kg

Package Dimensions: 15.5 x 15.2 x 8.0 inches
