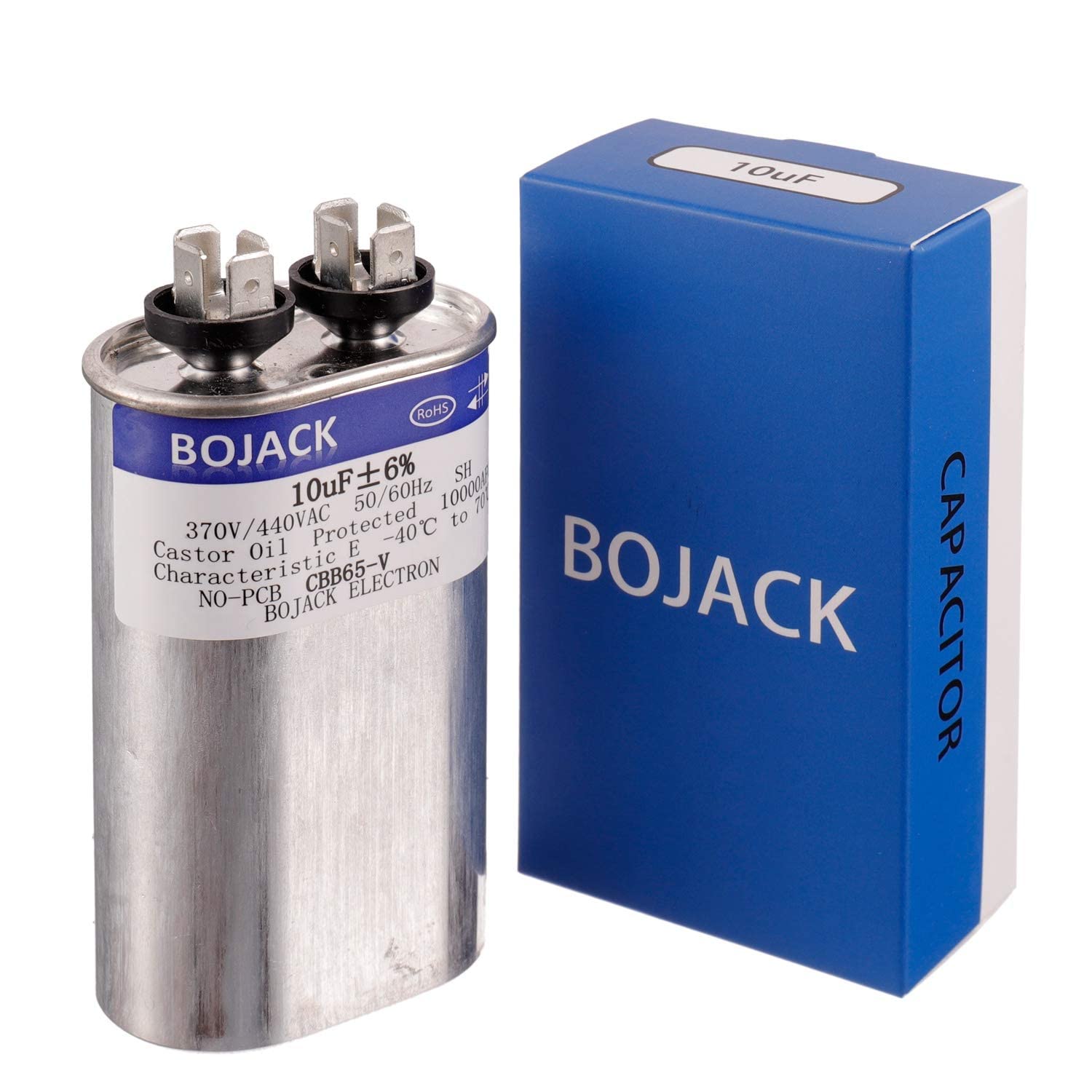

BOJACK 10 uF ±6% 10 MFD 370V/440V CBB65 Oval Run Start Capacitor for AC Motor Run or Fan Start and Cool or Heat Pump Air Conditione

Brand: BOJACK

Features:

• BOJACK 10 uf MFD 370V/440VAC Oval Run Start Capacitor
• Operating Temperature Range -40 ℃ to +70 ℃/ -104℉ to +158℉
• This Capacitor Will Run Compressor And Fan Motor
• UL Recognized(E187356),Engineered For Safety 10 000 AFC Anti Explosion Pressure Switch
• Replacement for :HC91CA010D , HC91CA010 , HC90AB010 , HC96AC010 , 97F9002 , 97F9002s , Z97F9002 , 97F9002BZ3 , 27L669 , TOCF10 , CR10X370 , TT-CAP-10/440 ,TP-CAP-10/440 HCKS100V440Z

model number: BJ-CPV

Part Number: BJ-CPV

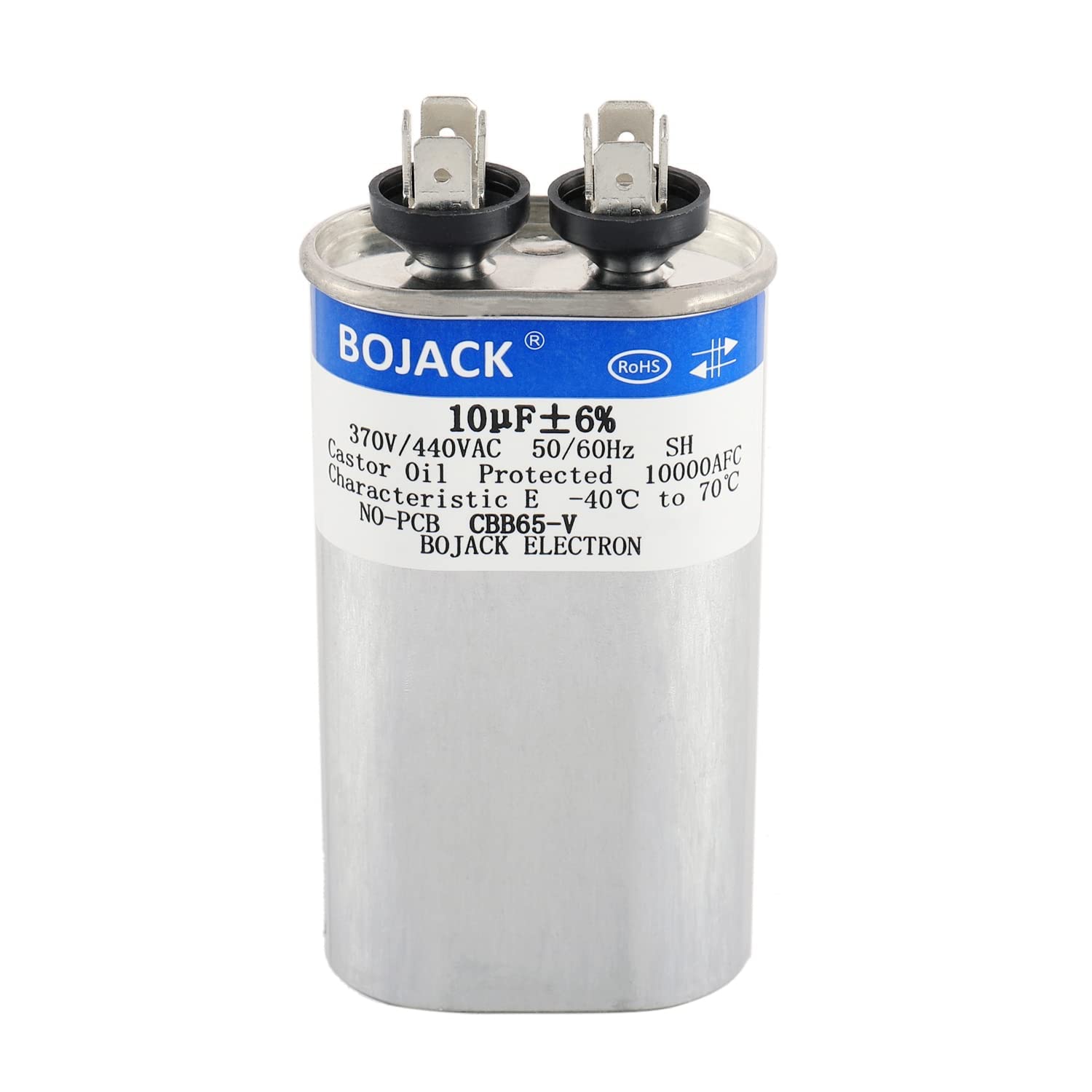

Details: BOJACK 10 uF 370V/440V CBB65 Oval Run start capacitor

Model: CBB65（Universal model）
Shell material: Case Material Aluminum, Cover Material Steel
Dielectric Material: metallized polypropylene film
Capacity: 10 uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC

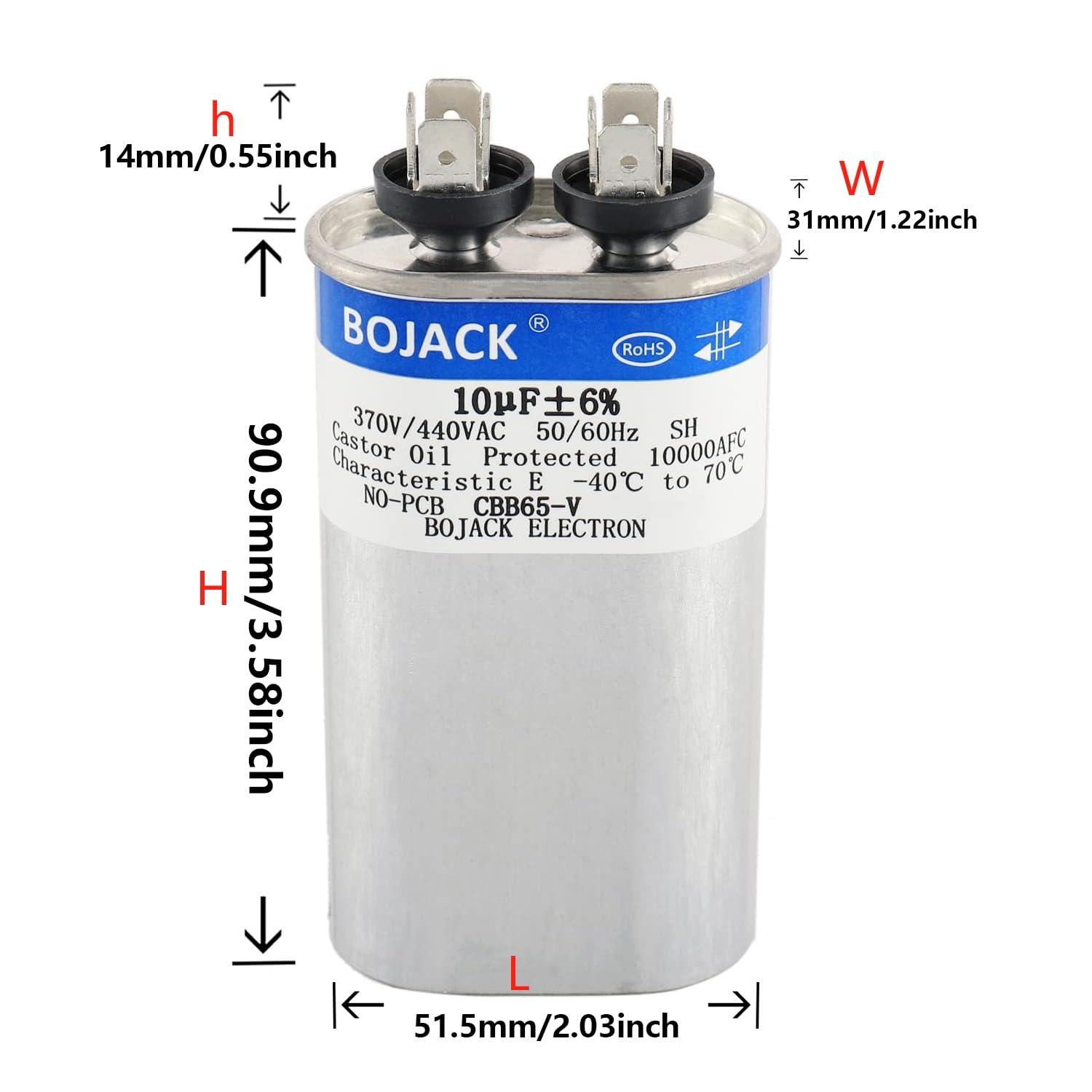

Capacitor dimension: Length<2.03 inch>,Wide<1.22 inch> Height <4.13 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for a compressor motor and a fan motor
start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement forCentral Air-Conditioners,
Heat Pumps, Condenser Fan Motors, and Compressors.It is small
in size, lightweight, heat resisting and anti-explosion.

Oval run capacitor can be used to substitute round shape one with the
same MFD and volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

EAN: 0768894139410

Package Dimensions: 4.3 x 2.2 x 1.3 inches
