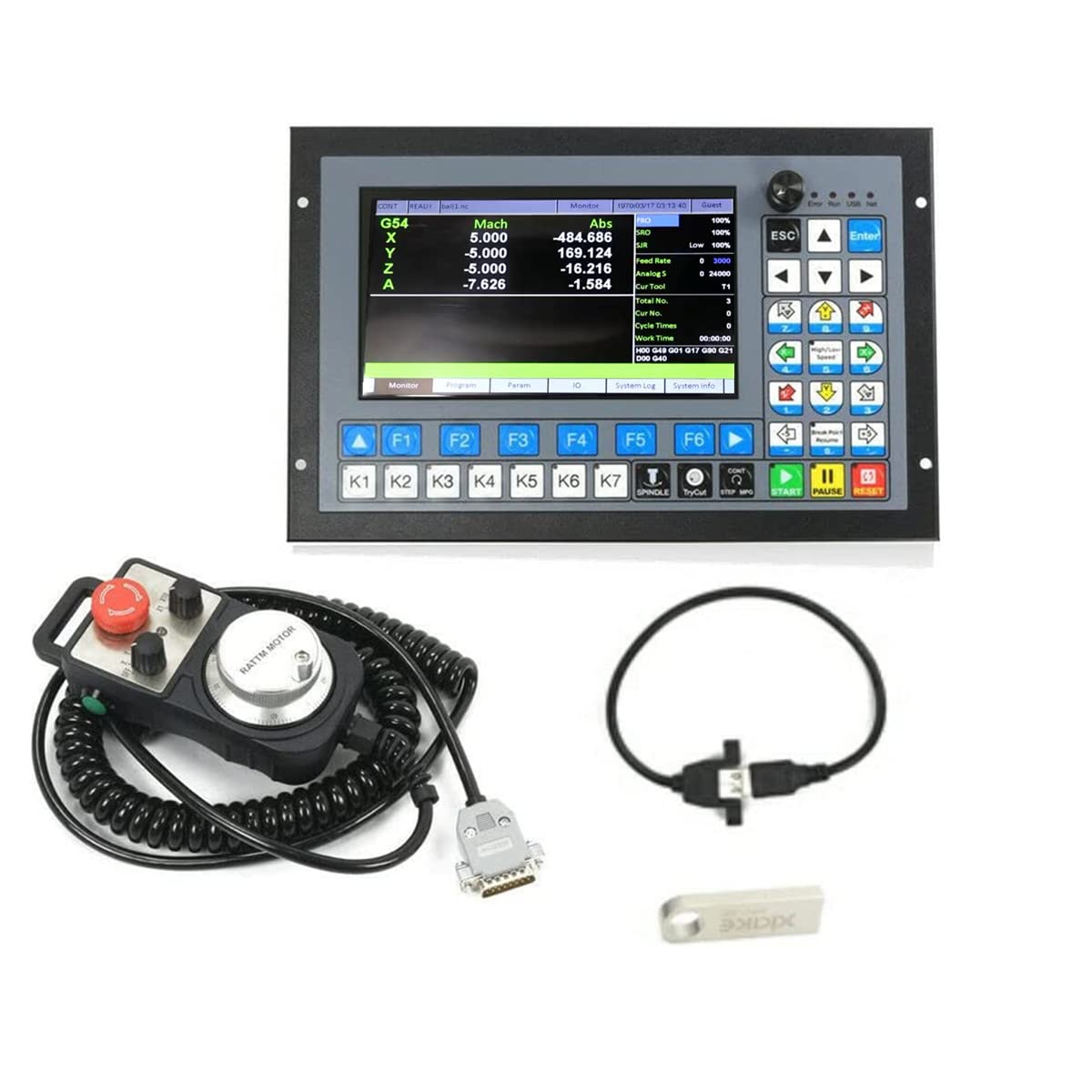

Model Number:DDCS EXPERT ; Support Axis:5 axis; 1MHz 1000KHz output frequency for each axis; 7 inch full color display screen; resolution ratio: 1024x600, 40 operation keys
Introduction: The DDCS Expert numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. The internal operating system is Linux based

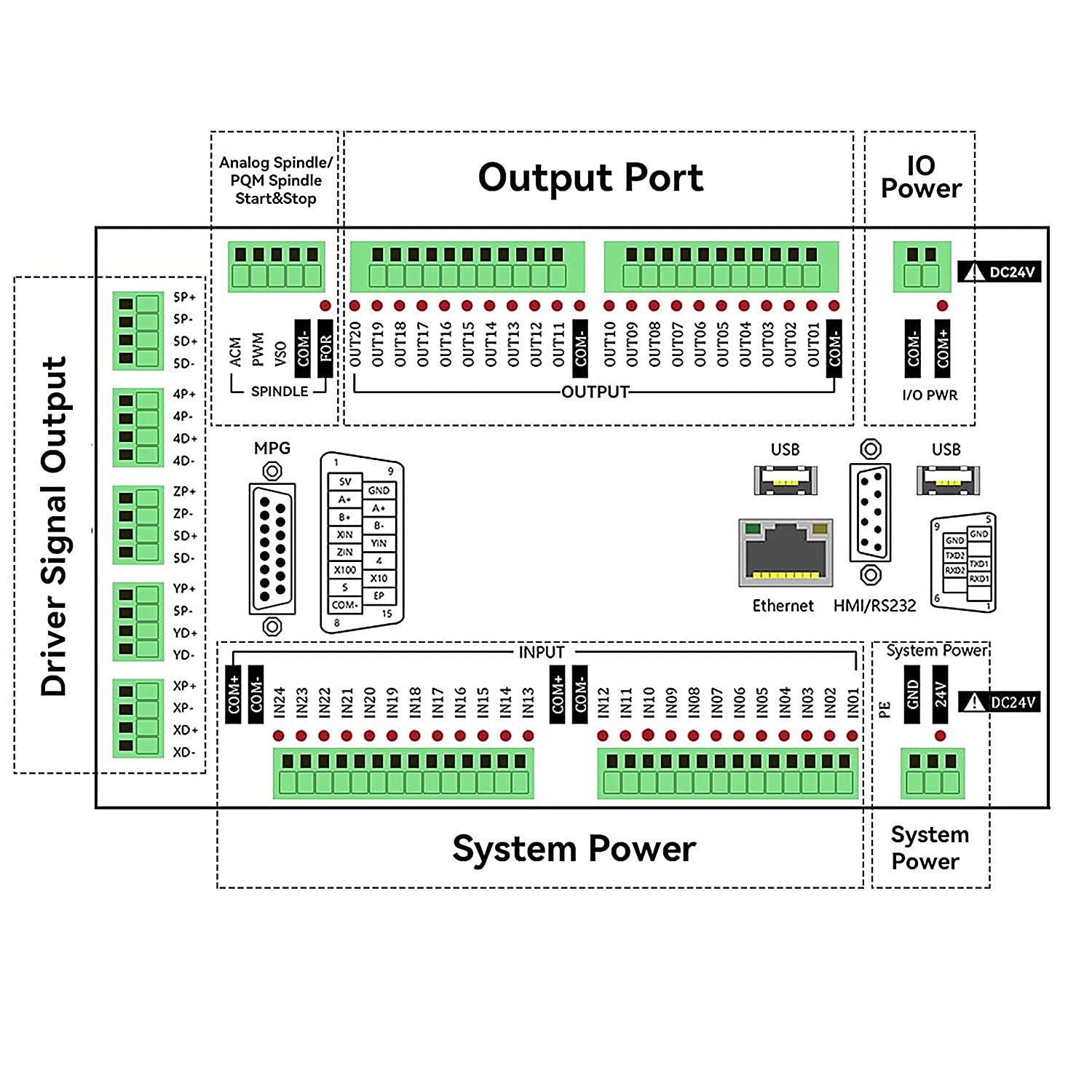

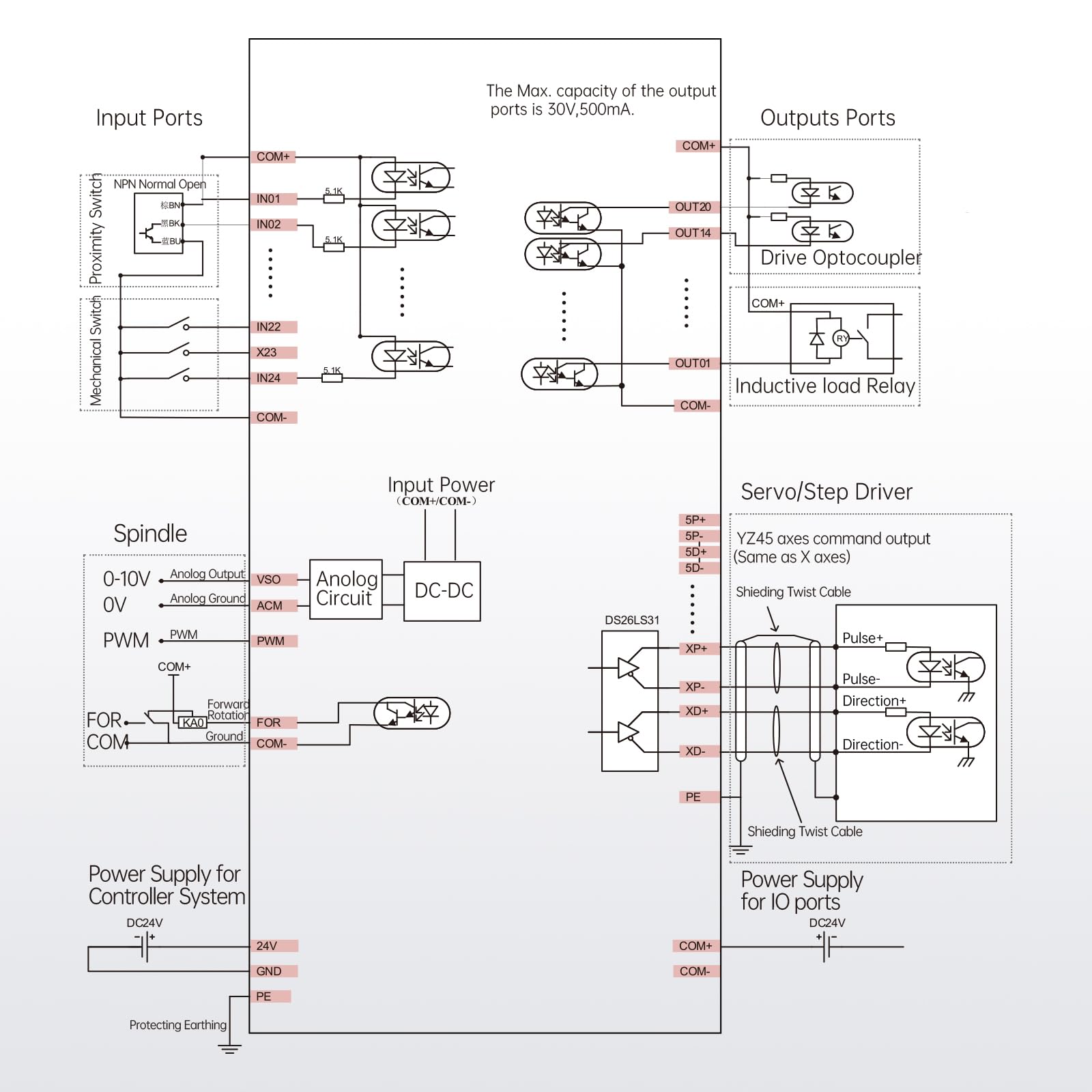

Main Features: 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;Analog spindle control 0-10V spindle control, also support PWM Output;Compatible with standard G-code,support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on

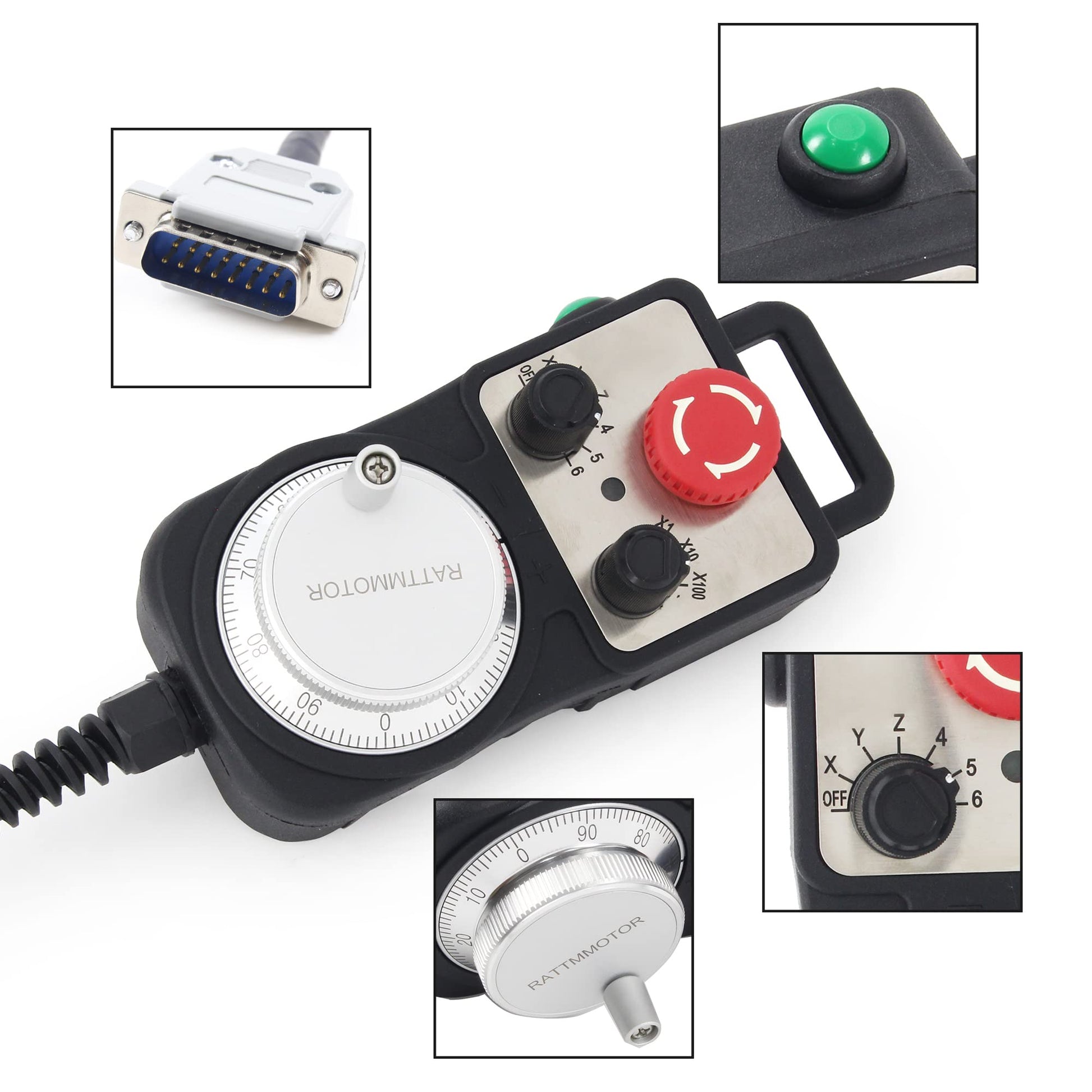

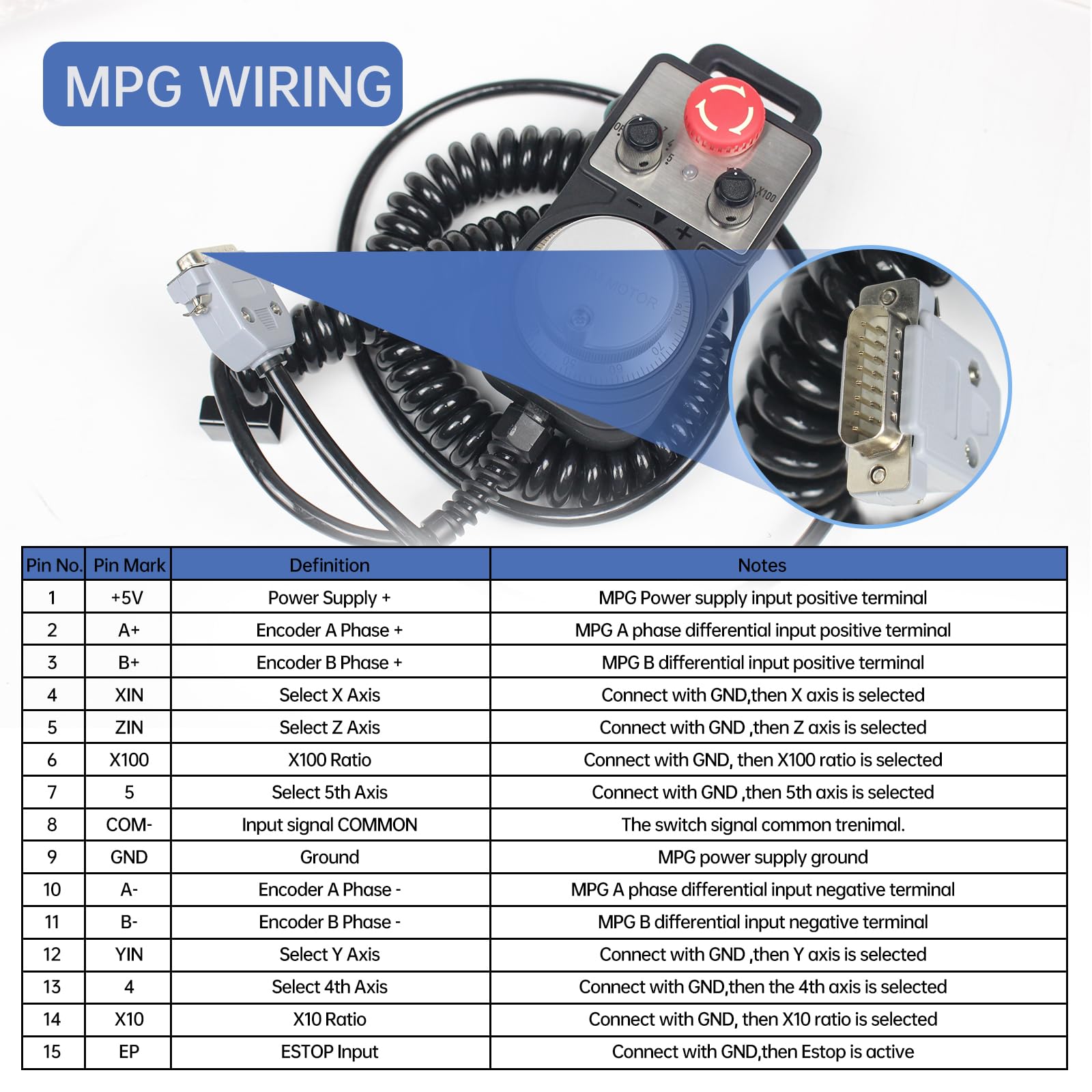

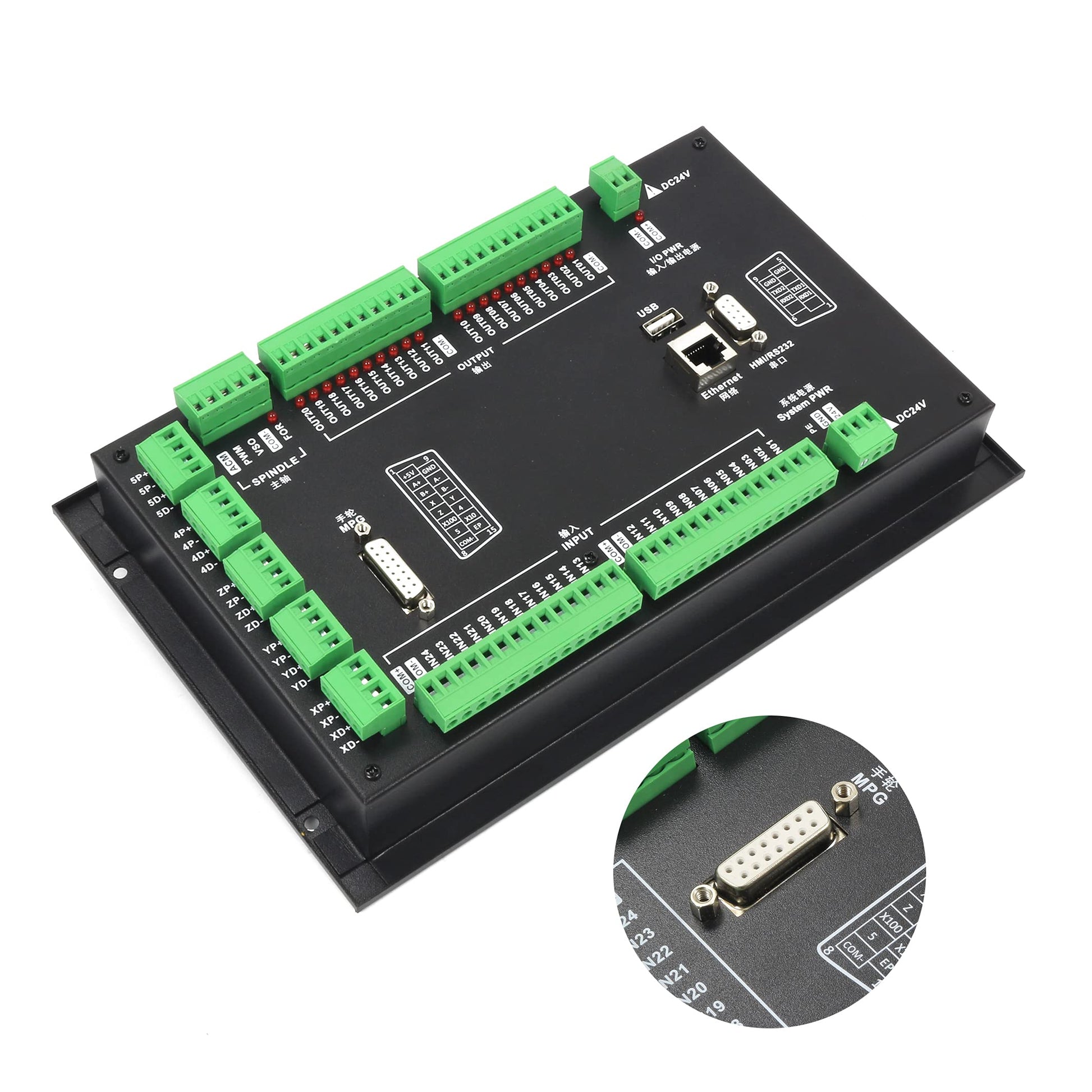

24V DC Power Supply Input: DDCS-Expert needs two power supplies,Main power is for controller system,IO Port power is for Input and Output and MPG ports. Both power supply is 24VDC,current is 3A

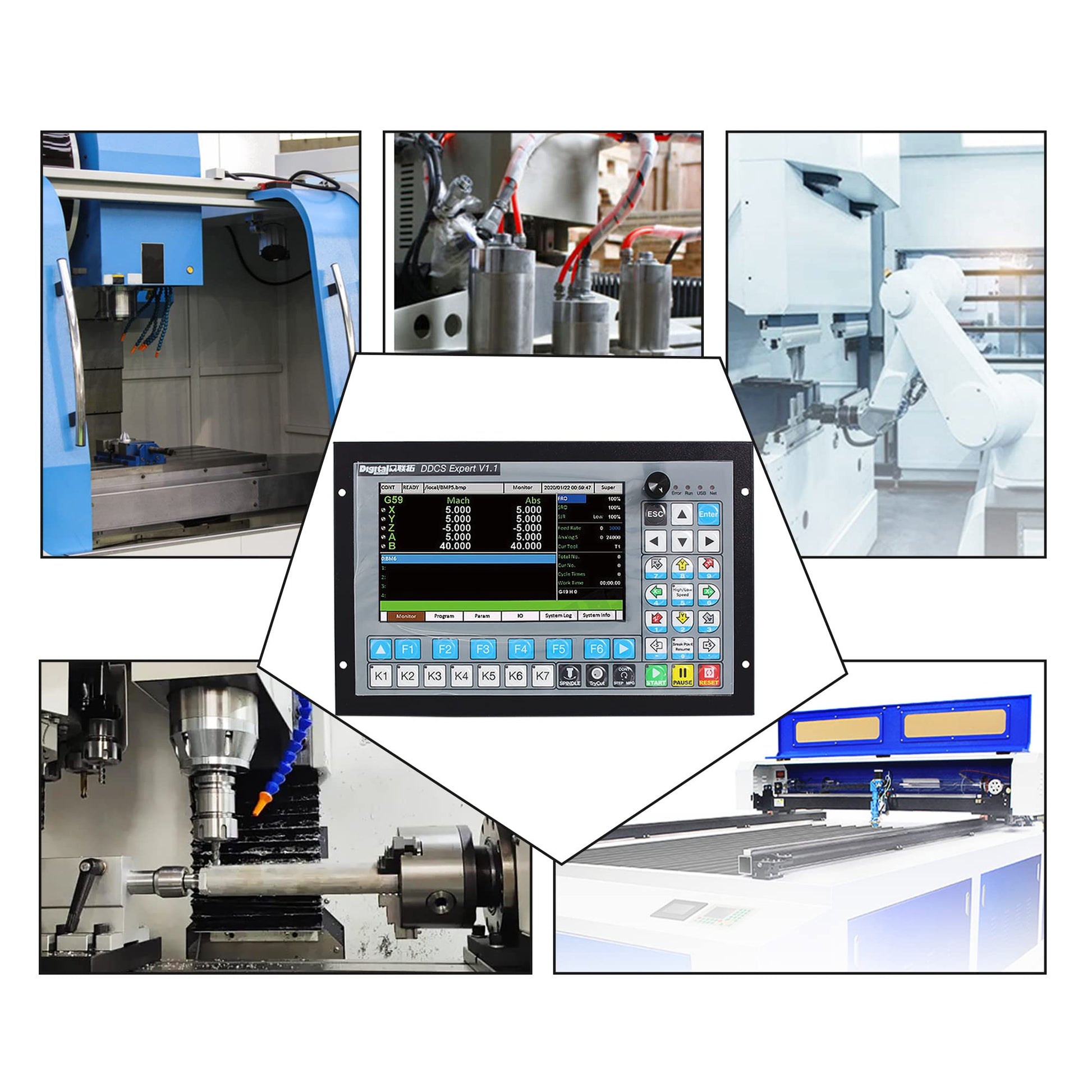

Applications:The DDCS Expert can be used for many styles and types of CNC machines. Lathes, CNC Routers,Pick and Place,Milling Machine, lathe and cutters are just a few examples
