Conversion Kit, Low Level Input Electric Conversion Kit 35A Controller with S866 LCD Display Panel Set Speed Control Kit for Mountain Scooter 1500W Motor

Brand: Estink

Features:

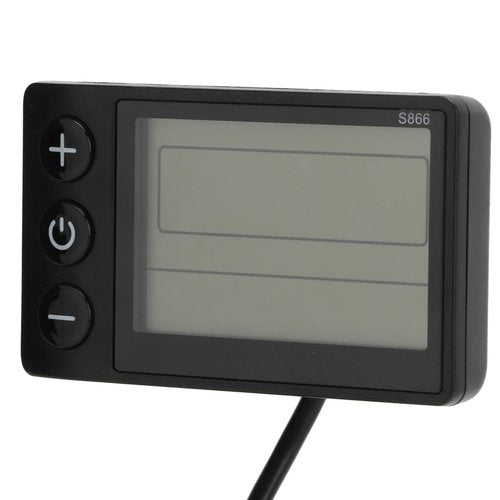

• LCD DISPLAY PANEL: LCD display panel adopts ABS material, which is light, rain proof, . LCD backlight display can clearly display status and data. The controller kit provides speed control, allowing you to ride at your desired speed

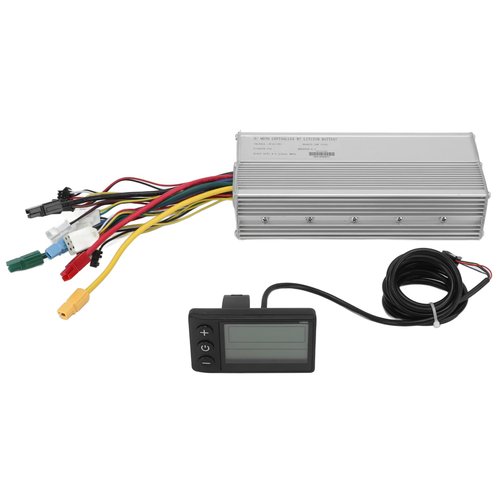

• CONTROLLER HOUSING: Controller outer housing is metal material with design, can the internal circuitry with good heat dissipation effect. It is a great accessory for electric , providing an easy to use and convenient display for monitoring your bike's performance
• SUITABLE MODEL: Can be used for bicycle and scooter refitting lithium to electric riding, usually suitable for 1500W motor, providing a satisfying using experience. Control your bike's speed effortlessly with the controller kit and enjoy the convenience of the electric bicycle display
• RICH CONTENT: There is a control, a panel and instructions included in the package, large quantity will be enough to meet your needs to upgrade your bike. This versatile speed control kit is an essential accessory for anyone looking to upgrade their riding experience

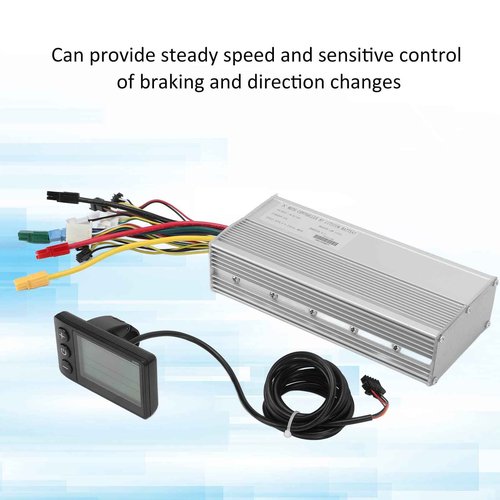

• DESIGNED FOR: Electric motor controller can provide steady speed and sensitive control of braking and direction changes, able to meet most of your needs. Enhance your biking experience with this versatile and electric conversion kit

Details: Spec:
Item Type: Conversion Kit
Material: Aluminum Alloy + ABS Plastic
Color: As Picture Shown
Application: for Conversion, Upgrade
Gross Weight: Approx.800g/28.2oz
Product Size: Controller Box: Approx.185x84x42mm/7.3x3.3x1.7in
Instrument: Approx. 81x48mm/3.2x1.9in
Controller Rated Voltage: DC36V/48V
Controller Maximum Current: 35A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
BOOSTER: 1:5
Applicable Motor Power: 1500W
Instrument operating voltage: DC 24V, 36V, 48V, 60V compatible (Panel selects Settings).
LCD instrument function description:
1. Display function: speed display, power indicator, fault indicator, total mileage, single mileage
2. Control setting functions: power switch control, wheel diameter setting, idle auto sleep time setting, backlight brightness setting, start mode setting, drive mode setting, voltage level setting, controller limit value setting
3. Communication protocol: UART
Display all contents of the screen (display all contents for 1s after startup)
3.1 Display of battery quantity and remaining quantity
3.2 Multi function display area: total mileage ODO, single mileage TRIP (unit: mile, km), single startup TIME TIME, battery voltage VOL, DST: battery life
3.3 Speed display area
AVG: average SPEED, : maximum SPEED, SPEED: current speed, unit: Mp/h km/h
The speed is taken from the Hall in the motor and sent to the instrument by the controller. (Time of a single Hall cycle, unit: 1MS) The instrument will calculate the based on the wheel diameter and data (the amount of magnetic steel required by the motor hall)
3.4 Vehicle power gear adjustment, 0-9 digital display and stop bar display;

Package Dimensions: 8.0 x 5.5 x 4.3 inches
