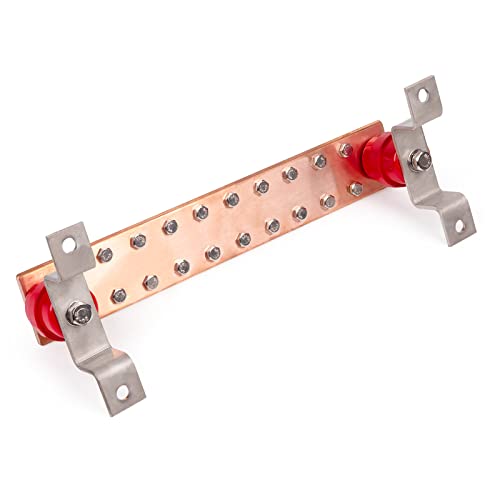

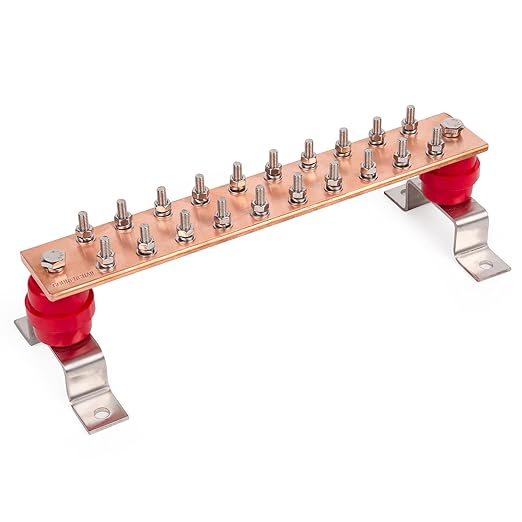

Copper Ground Bar Kit - .25" x 2" x 12" Busbar with 20 Terminal Positions
Copper Ground Bar Kit - .25" x 2" x 12" Busbar with 20 Terminal Positions
Regular price
$65.41 USD
Regular price
Sale price
$65.41 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
About this item
Copper Ground Bar Kit - .25' x 2' x 12' Busbar with 20 Terminal Positions
- .25' (1/4') x 2' x 12' Copper Bus Bar with 1/4' * 20 Terminal Positions.

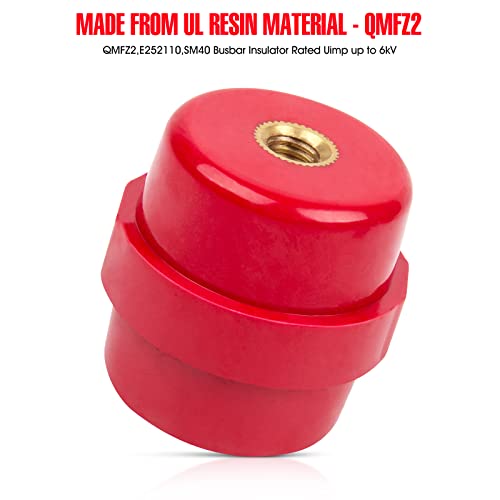

- Made from UL Resin Material - QMFZ2.E252110,SM40 Busbar Insulator Rated Uimp up to 6kV .

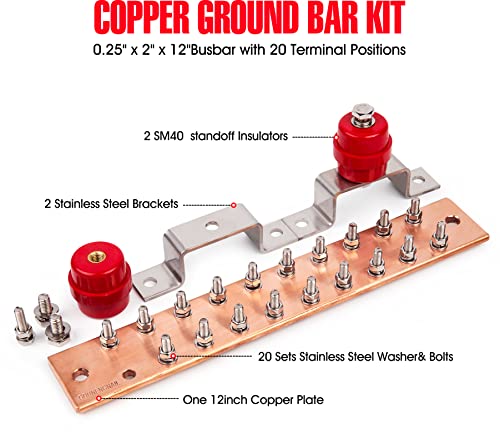

- Copper ground bar set,including one 12inch copper plate, two SM40 standoff Insulators,two stainless steel brackets, 20 sets stainless steel washer& bolts.

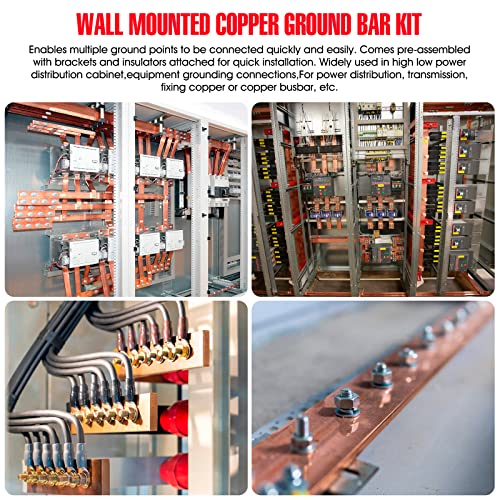

- Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily. Comes pre-assembled with brackets and insulators attached for quick installation. Widely used in high low power distribution cabinet,equipment grounding connections,For power distribution, transmission, fixing copper or copper busbar, etc.
- 100% after-sales guarantee. If you have any problems within 30 days of receiving the goods, you can enjoy the unconditional return refund service.
Product information
| Item Pitch | 0.6 Inches |
|---|---|
| Connector Type | Screw |
| Number Of Contacts | 20 |
| Mounting Type | Wall Mount |
| Material | Copper |
| Brand | GOUNENGNAIL |
| Voltage | 6 Volts |
| Number Of Poles | 20 |
| Product Dimensions | 2'W x 12'H |
| Centerline Length | 12 Inches |
| Specification Met | UL |
| Upper Temperature Rating | 105 Degrees Celsius |
| Temperature Range | 105 Degrees Celsius |
| Manufacturer | BULLS HARDWARE CO.,LTD |
| Item Weight | 2.97 pounds |
| ASIN | B09PJ7J1LW |
| Item model number | 6974012510656 |
| Date First Available | January 1, 2022 |
| Best Sellers Rank | #244,123 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement)#84 in Electrical Grounding Bars |
