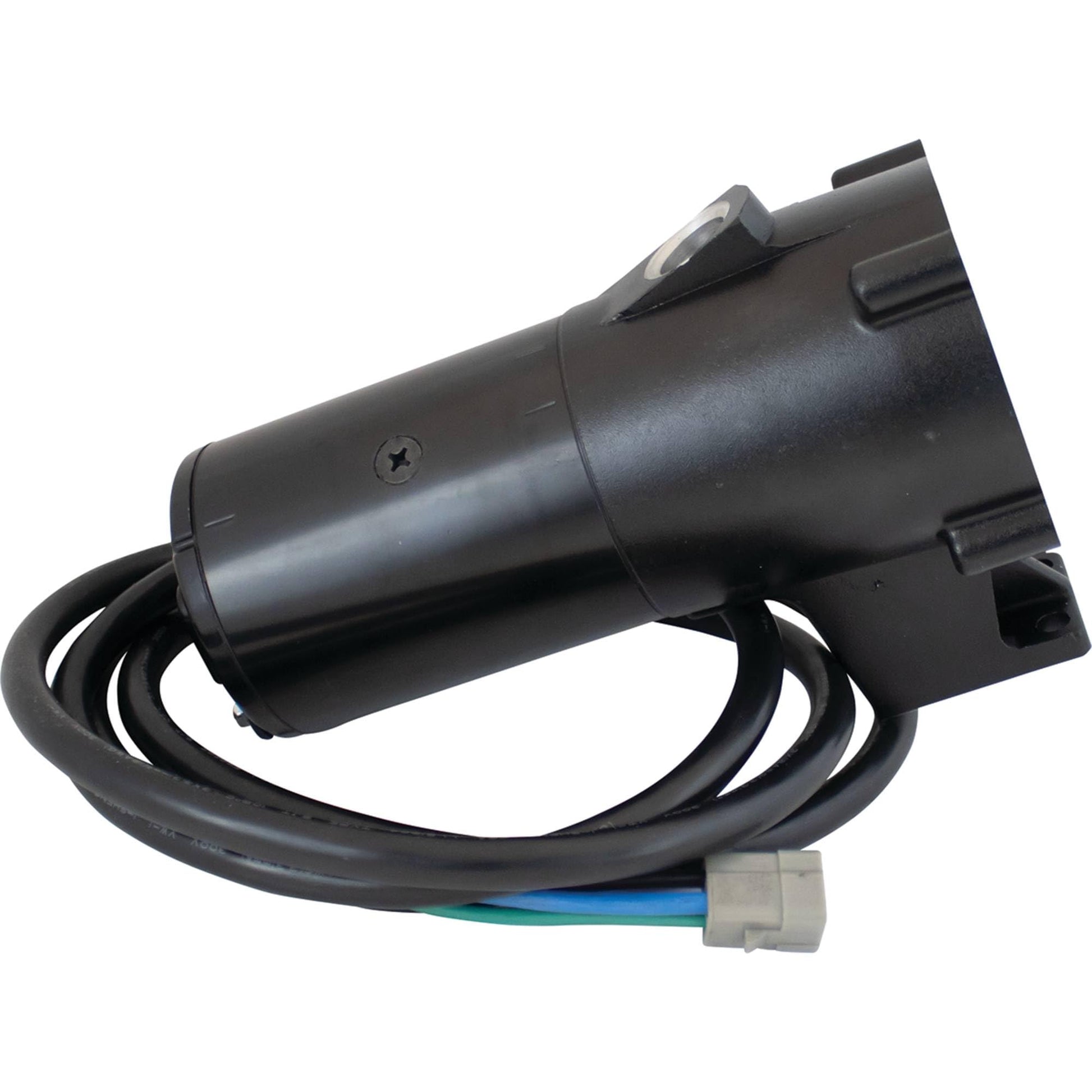

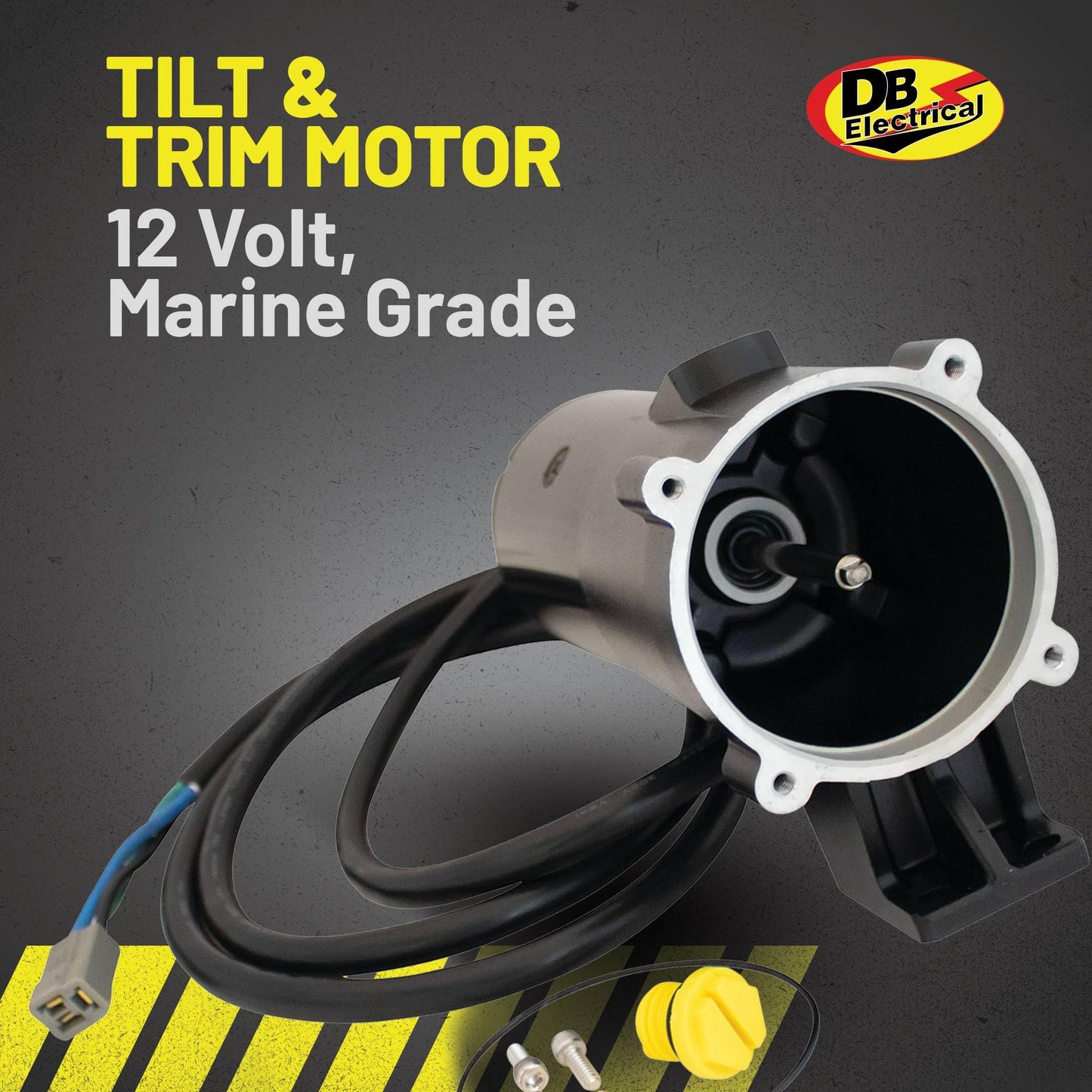

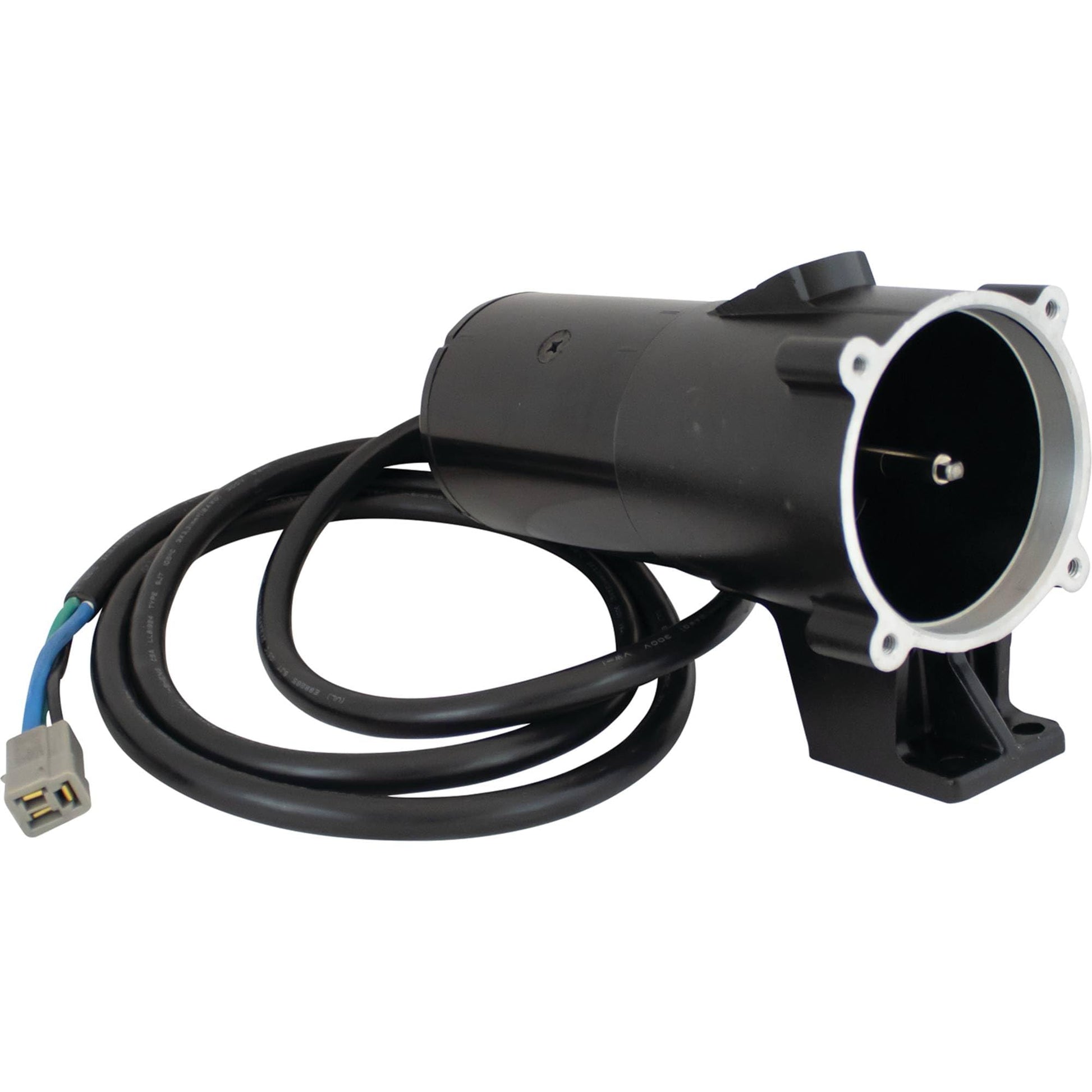

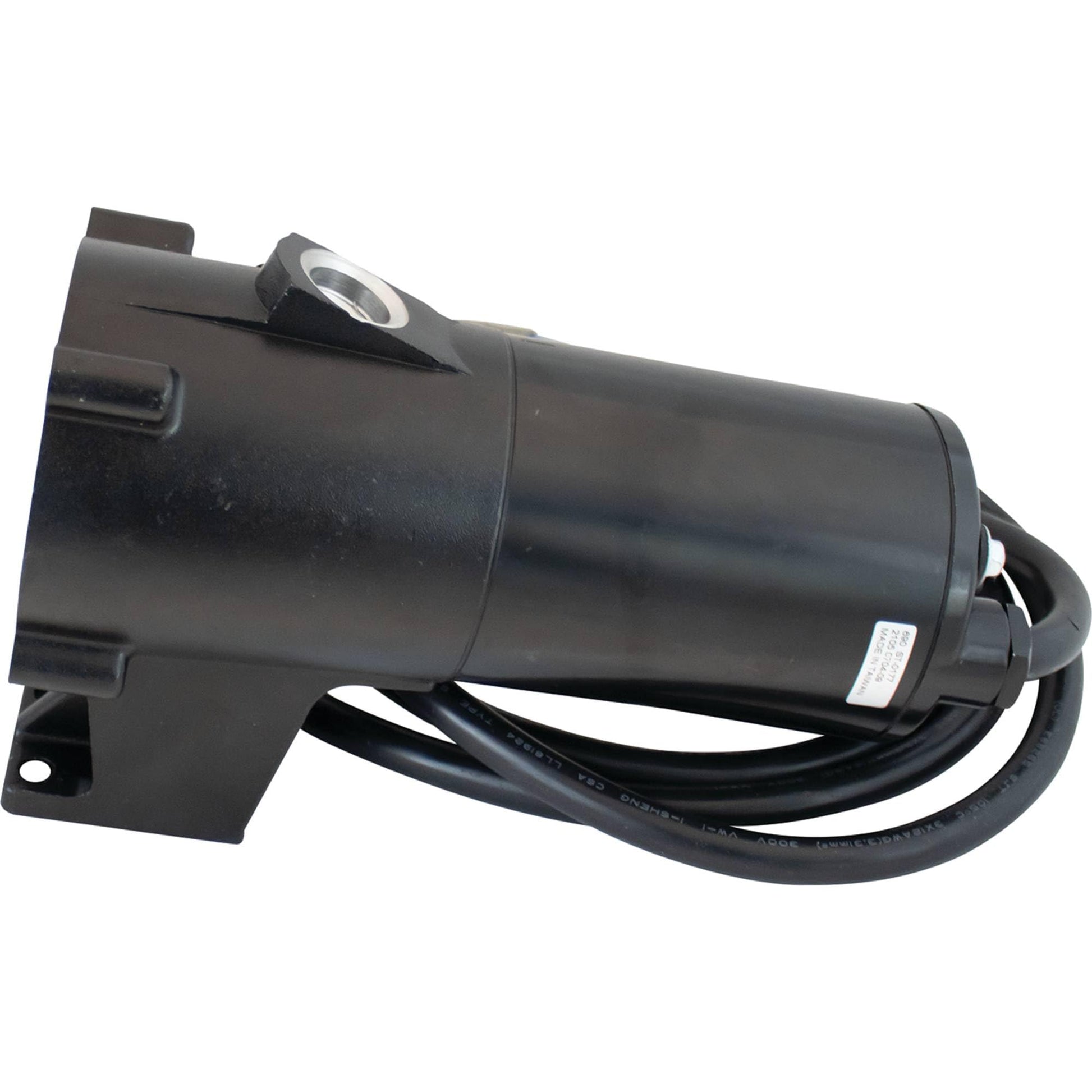

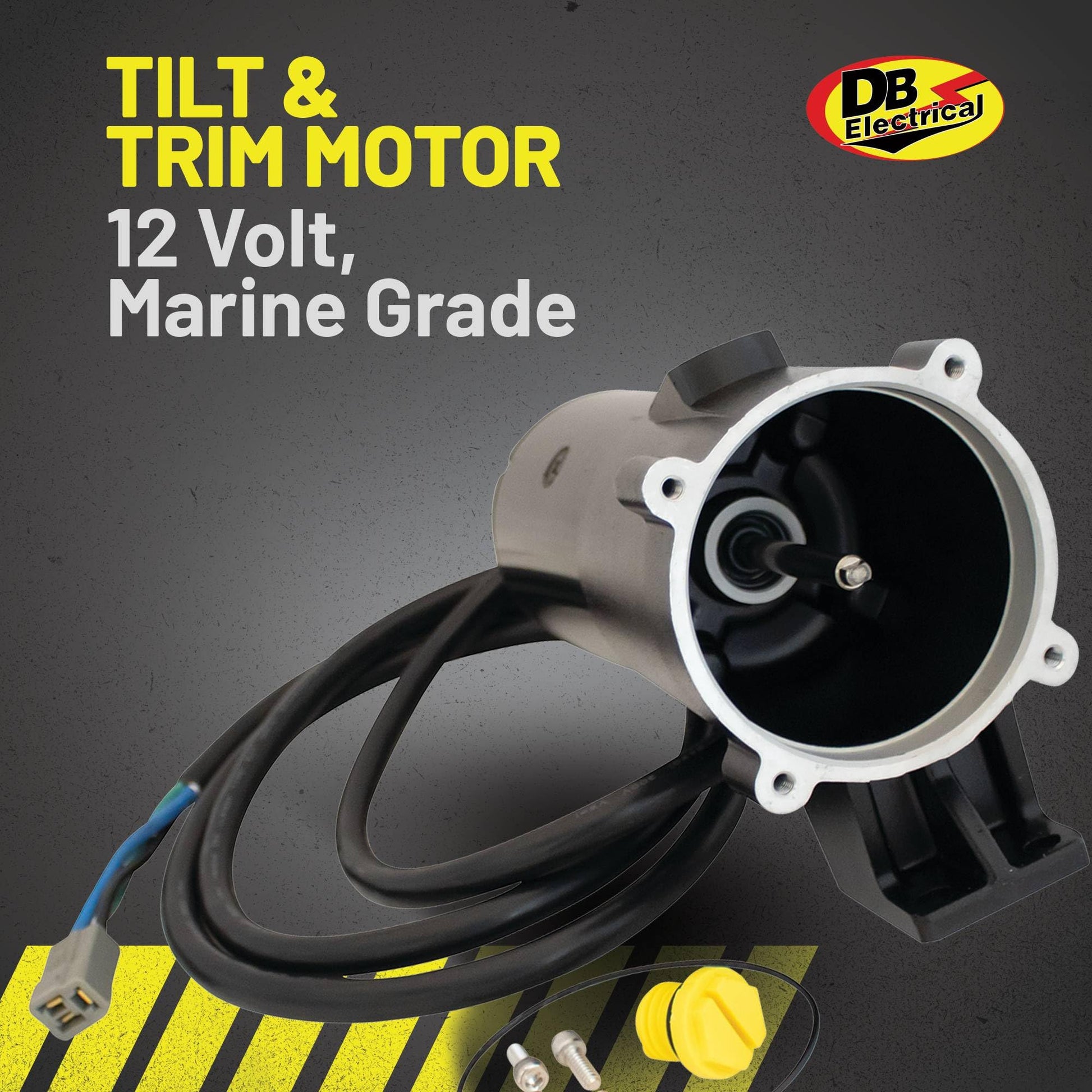

DB Electrical TRM0012 Tilt Trim Motor Compatible with/Replacement for Chrysler/Force/Evinrude/Johnson Omc 75 HP, 90 HP, 115 HP, 120 HP, 130 HP, 135 HP, 172543, 382715, ESZ4009, ESZ4012

Brand: DB Electrical

Color: Multicolor

Features:

• Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 3.031in / 77mm, Shaft OD: 0.291in / 7.4mm, Length: 8.661in / 220mm, Shaft: 3.5mm Drive Tang, Note: Includes Reservoir, Note: 3-Wire Configuration, Brief: Chrysler, Force, Evinrude, Johnson
• Replaces OEM Numbers: API MARINE: PT112, PT112N, ARCO MARINE: 6216, ARROWHEAD: TRM0012, CHRYSLER MARINE: 44-9541-1, 45-5541, F17563, EMP UnitS: 4-6762, Force: F17556, F17563, F17564, F17568, F654541, FK654541, J & N: 430-20024, LESTER: 10806, OMC: 0172543, 0382715, 172543, 382715, PRESTOLITE: ESZ4009, ESZ4012, ESZ4014, ETX4001, QUICKSILVER: 8M6007521, SIERRA MARINE: 18-6762, WAI: 10806N
• Compatible With/Replacement For: CHRYSLER MARINE 100 1979-1984, 105 1982-1984, 115 1977-1984, 125 1981-1984, 140 1979-1984, 75 1979-1984, 85 1977-1984, 90 1983-1984, EVINRUDE E100 1972-1972, E115 1973-1977, E125 1972-1972, E135 1973-1976, E65 1973-1973, E70 1974-1977, E75 1975-1977, E85 1972-1972, E85 1973-1977, FORCE 1008 1984-1984, 1158 1984-1984, 1251 1983-1987, 1253 1986-1987, 1254 1986-1987, 1258 1983-1987, 1401 1984-1984, 601 1985-1985
• 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.

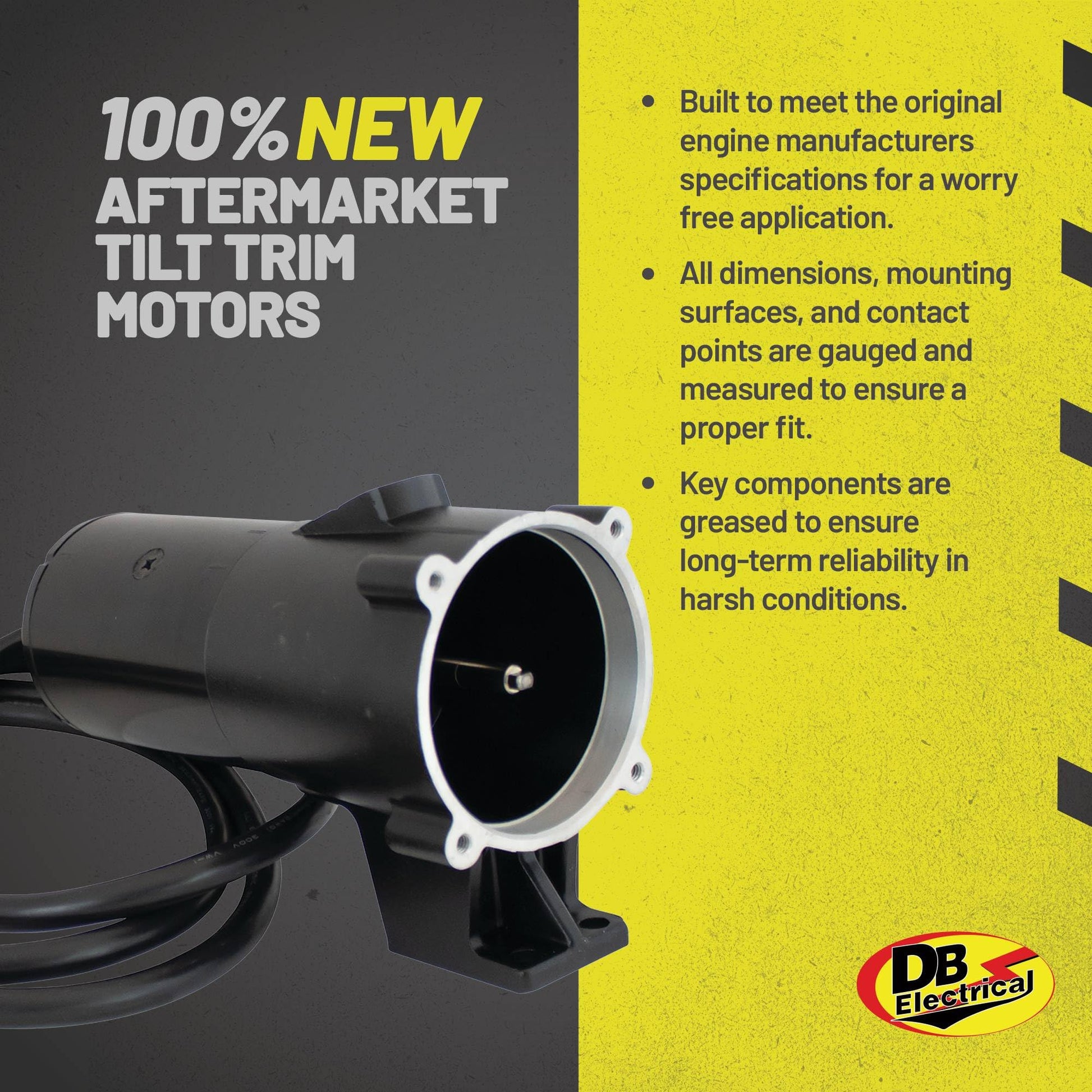

• 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications

model number: 430-20024

Part Number: 430-20024

Details: **Verify the part fits before purchasing**

Specs:

Unit Type: Tilt & Trim Motor
Voltage: 12
Rotation: RE

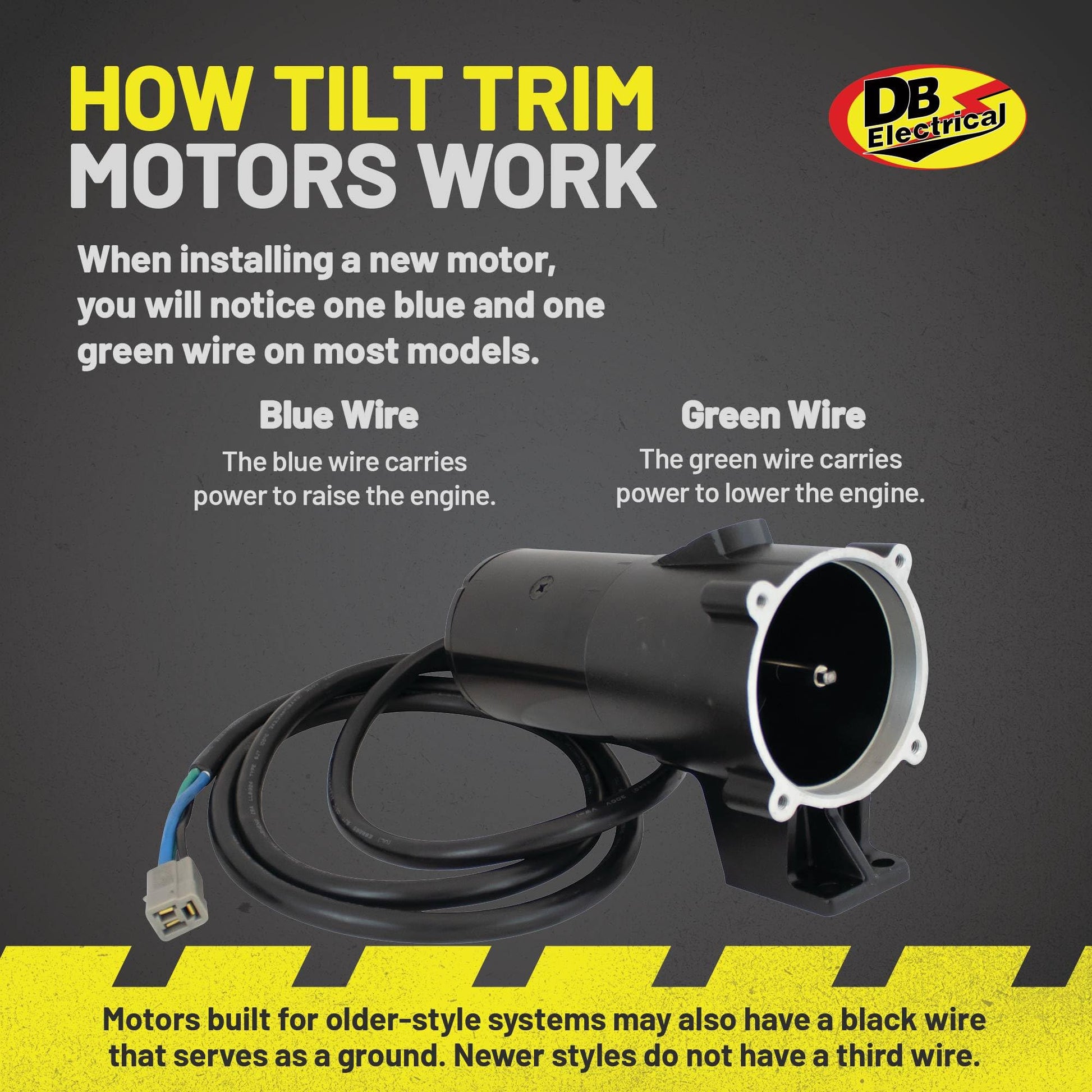

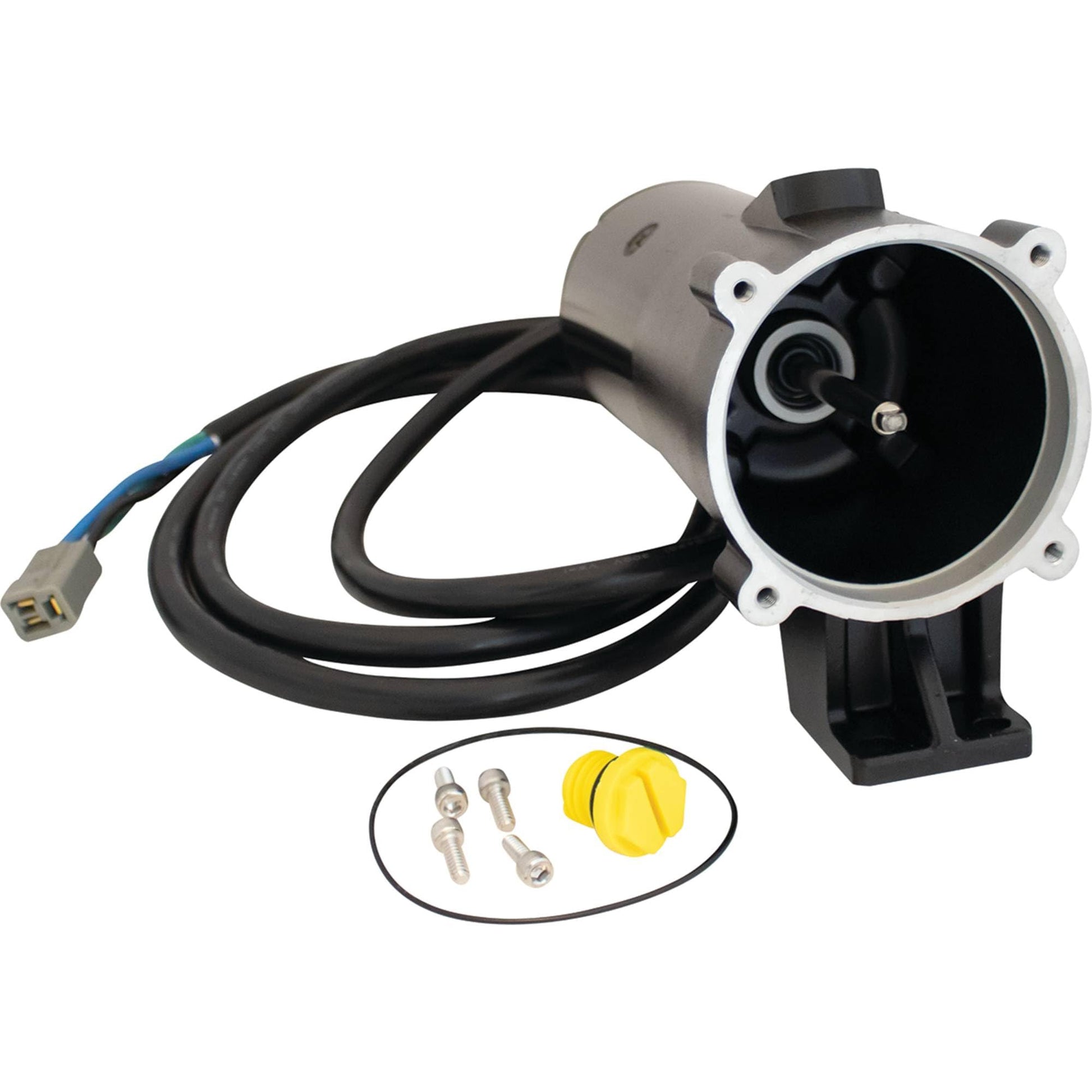

Dimension: Replacement Unit:, OD: 3.031in / 77mm, Shaft OD: 0.291in / 7.4mm, Length: 8.661in / 220mm, Shaft: 3.5mm Drive Tang, Note: Includes Reservoir, Note: 3-Wire Configuration,
Brief: Chrysler, Force, Evinrude, Johnson

Replaces OEM Numbers:

API MARINE: PT112, PT112N
ARCO MARINE: 6216
ARROWHEAD: TRM0012
CHRYSLER MARINE: 44-9541-1, 45-5541, F17563
EMP UnitS: 4-6762
Force: F17556, F17563, F17564, F17568, F654541, FK654541
J & N: 430-20024
LESTER: 10806
OMC: 0172543, 0382715, 172543, 382715
PRESTOLITE: ESZ4009, ESZ4012, ESZ4014, ETX4001
QUICKSILVER: 8M6007521
SIERRA MARINE: 18-6762
WAI: 10806N

Compatible With/Replacement For:

CHRYSLER MARINE 100 1979-1984, 105 1982-1984, 115 1977-1984, 125 1981-1984, 140 1979-1984, 75 1979-1984, 85 1977-1984, 90 1983-1984

EVINRUDE E100 1972-1972, E115 1973-1977, E125 1972-1972, E135 1973-1976, E65 1973-1973, E70 1974-1977, E75 1975-1977, E85 1972-1972, E85 1973-1977

FORCE 1008 1984-1984, 1158 1984-1984, 1251 1983-1987, 1253 1986-1987, 1254 1986-1987, 1258 1983-1987, 1401 1984-1984, 601 1985-1985, 601 1989-1989, 606 1984-1984, 608 1984-1985, 758 1984-1984, 856 1983-1987, 857 1986-1986, 858 1983-1987, 906 1984-1984, 908 1984-1984

U.S. All Models All

EAN: 0701485537684

Package Dimensions: 13.0 x 7.1 x 4.3 inches
