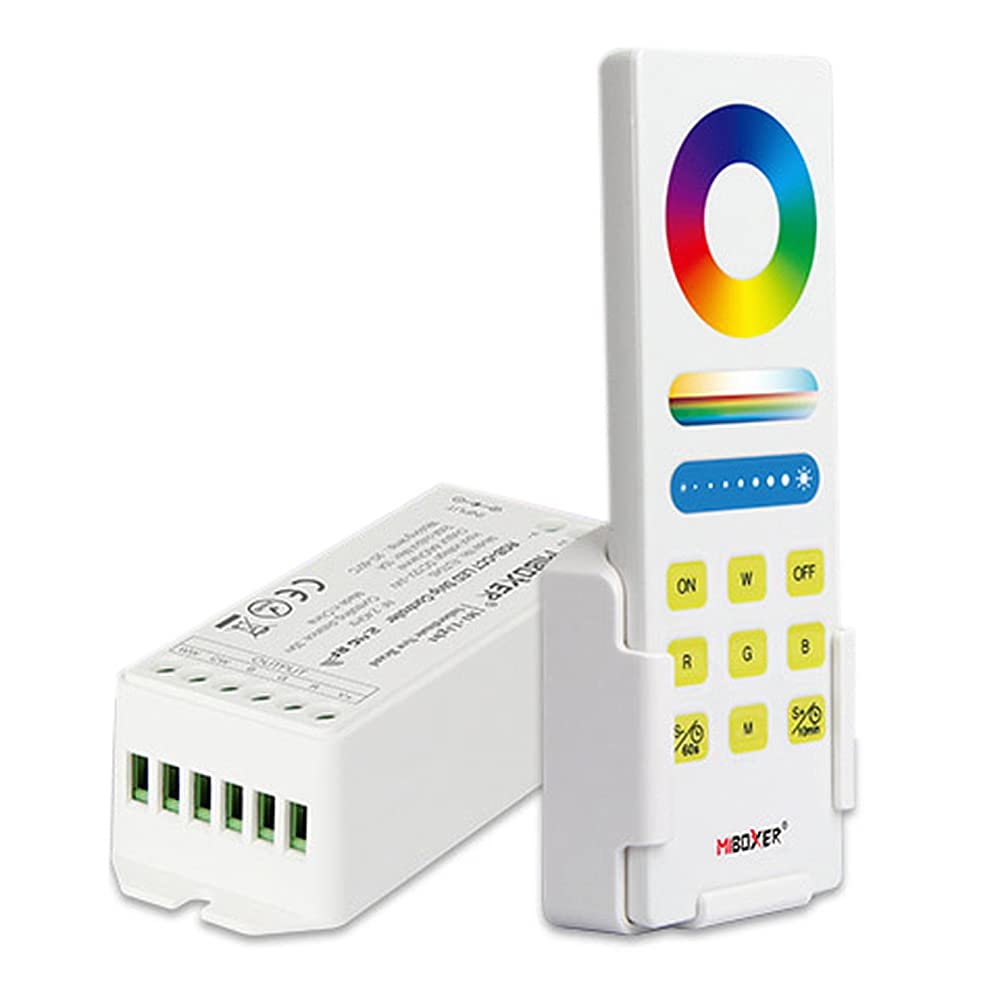

Dc12-24V Fut043A+ Remote Control Indoor Rgb Cct Led Controller Kit (5In1 Remote Kit)

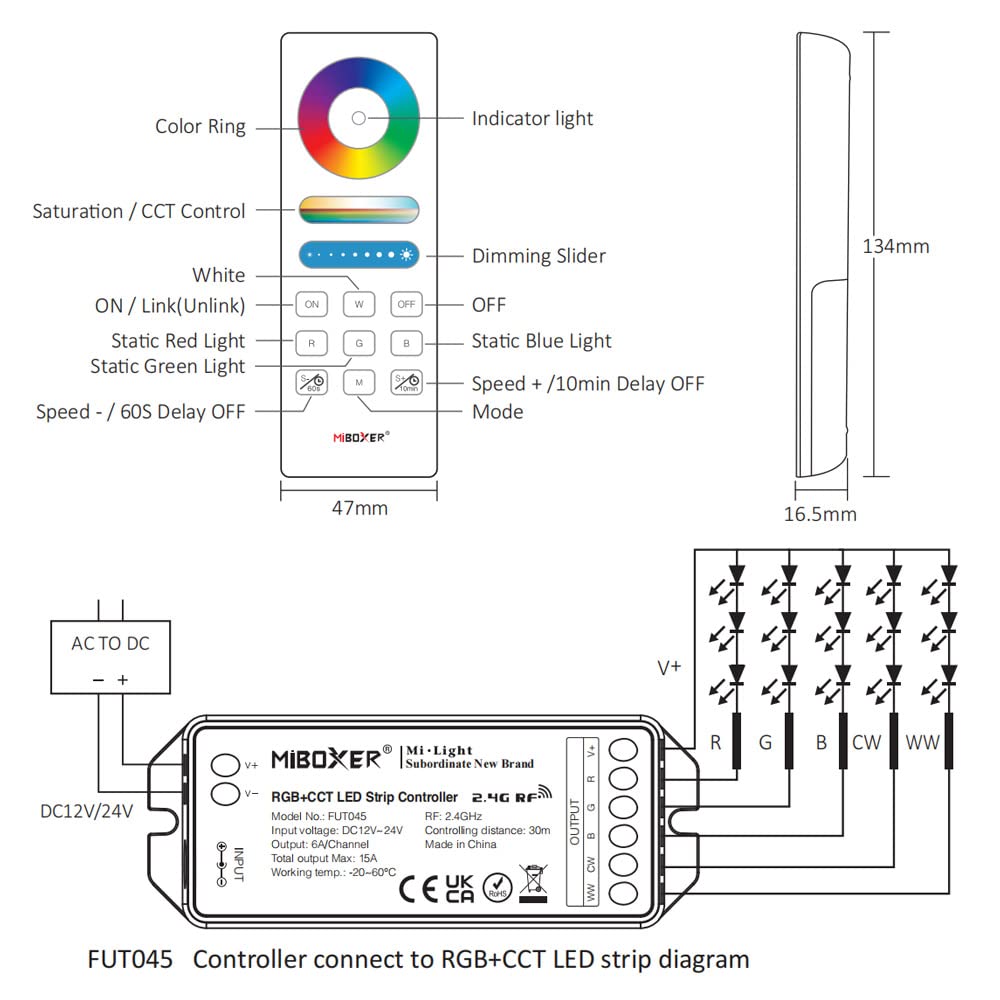

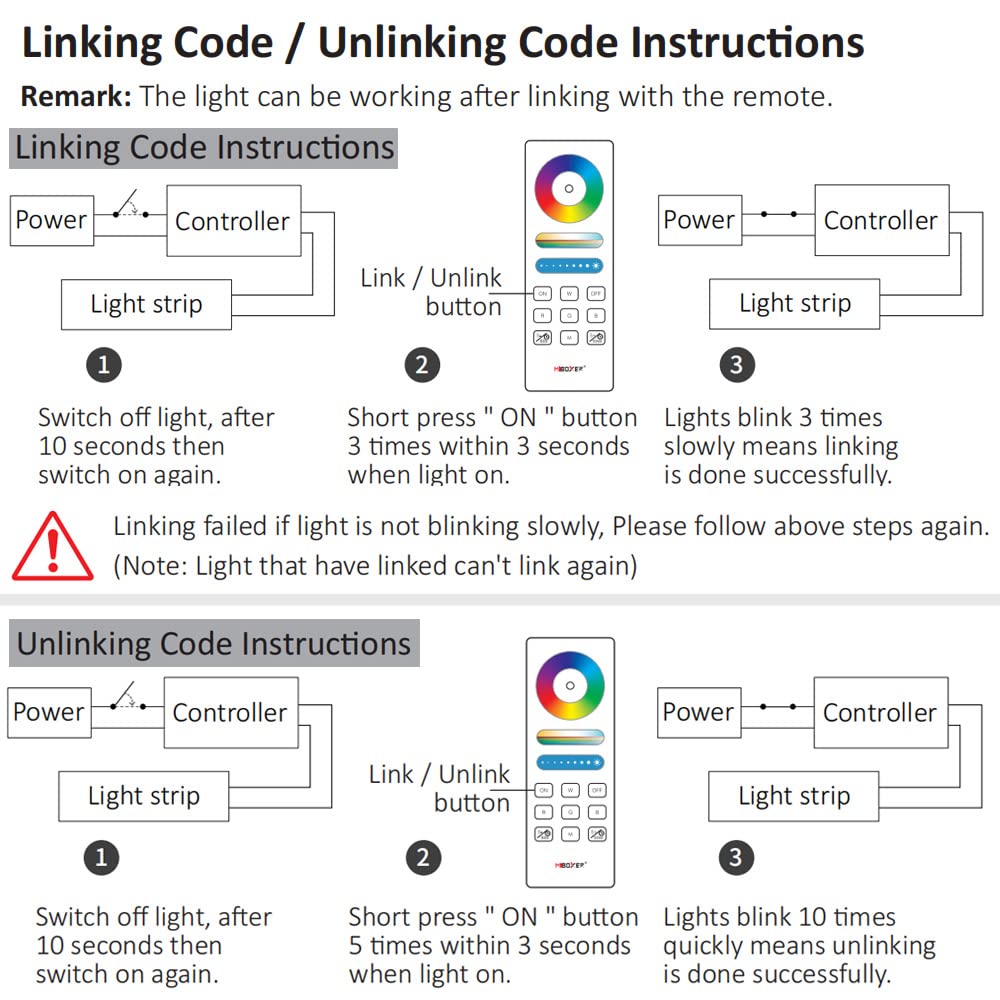

Specifications: Input Voltage:12-24Vdc Input Current: 15A; 6A/Ch Max Output Voltage: 5 X (12-24)Vdc Output Power: 5 X (36-72)W Output Type: Constant Voltage Input Signa: 2.4Ghz Control Distancae: 30M(Barrier-Free Space) Dimming Gray Scale: 4096 (2^12) Levels Dimming Range: 0 -100% Operation Temperature: Ta: -30? ~ +55? Ip Rating: Ip20 Remote Power: 3Vdc(Aaax2) Package Included: 1X Fut045 Wireless Controller 1 X Fut088 Remote Control 1 X Wall Base 1 X User Manual Wiring Diagram Match Remote Control (Two Match Ways) 1. Use The Controllers Match Key Match: Short Press Match Key, Immediately Press On/Off Key (Single Zone Remote) Or Zone Key (Multiple Zone Remote) On The Remote. The Led Indicator Fast Flash A Few Times Means Match Is Successful. Delete: Press And Hold Match Key For 5S To Delete All Match, The Led Indicator Fast Flash A Few Times Means All Matched Remotes Were Deleted. 2. Use Power Restart Match: Switch Off The Power, Then Switch On Power Again, Immediately Short Press On/Off Key (Single Zone Remote) Or Zone Key (Multiple Zone Remote) 3 Times On The Remote. The Light Blinks 3 Times Means Match Is Successful. Delete. : Switch Off The Power, Then Switch On Power Again, Immediately Short Press On/Off Key (Single Zone Remote) Or Zone Key (Multiple Zone Remote) 5 Times On The Remote. The Light Blinks 5 Times Means All Matched Remotes Were Deleted. Wiring Diagram Note Note: Long Press Match Key For 10S, Rgb And Cct Light Can Not Be On At The Same Time. Long Press Match Key For 15S, Rgb And Cct Light Can Be On At The Same Time. Above Operation Will Also Restore The Factory Setting.
