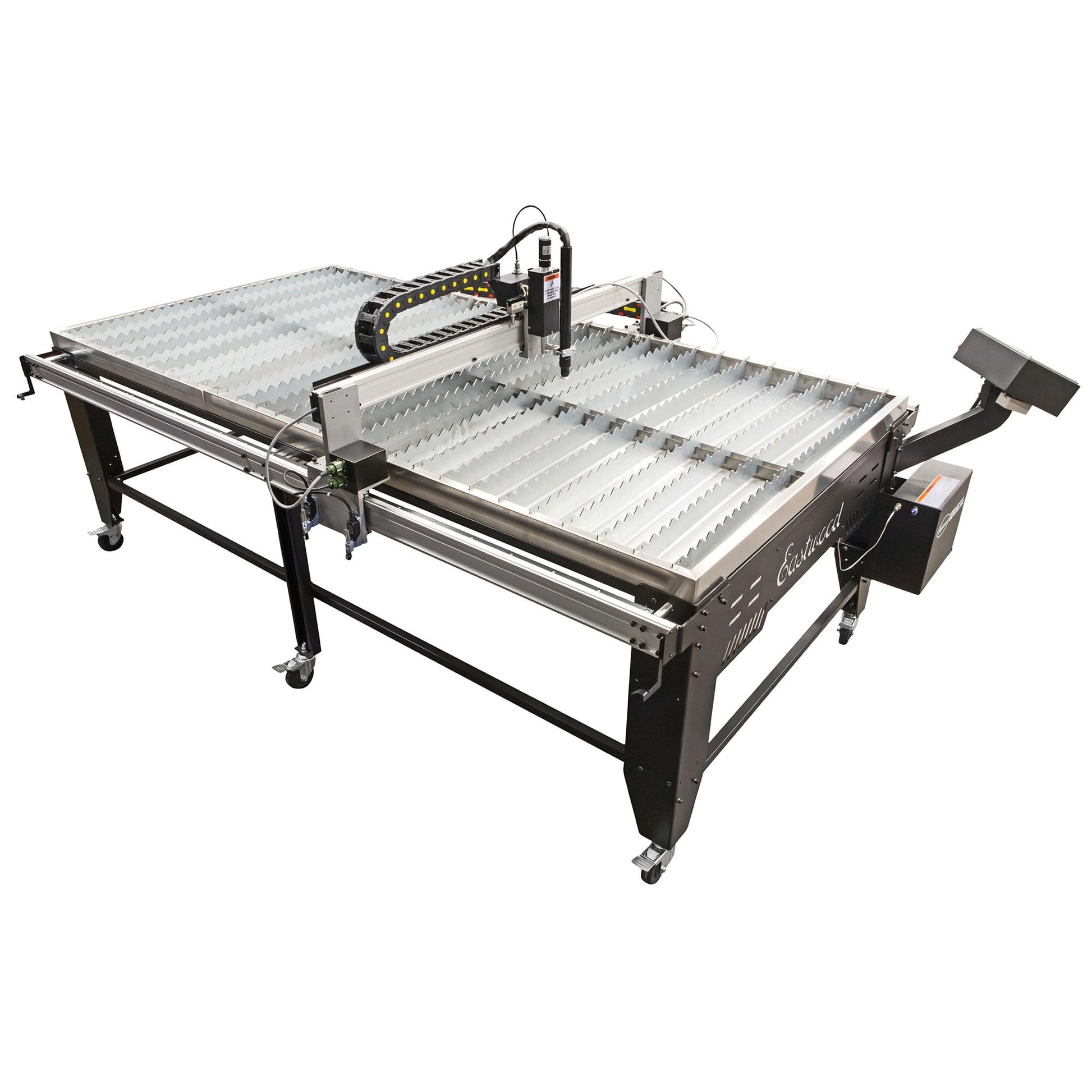

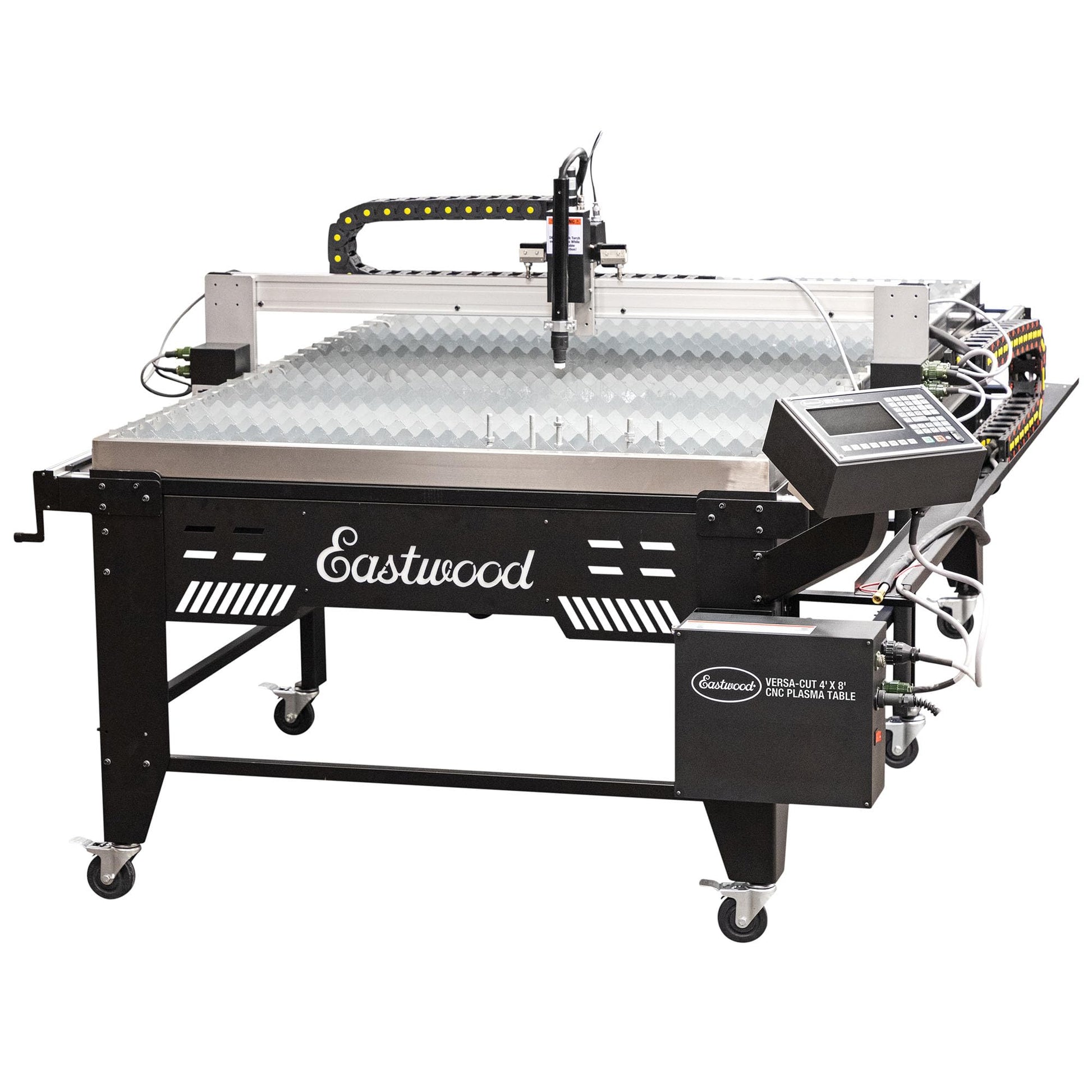

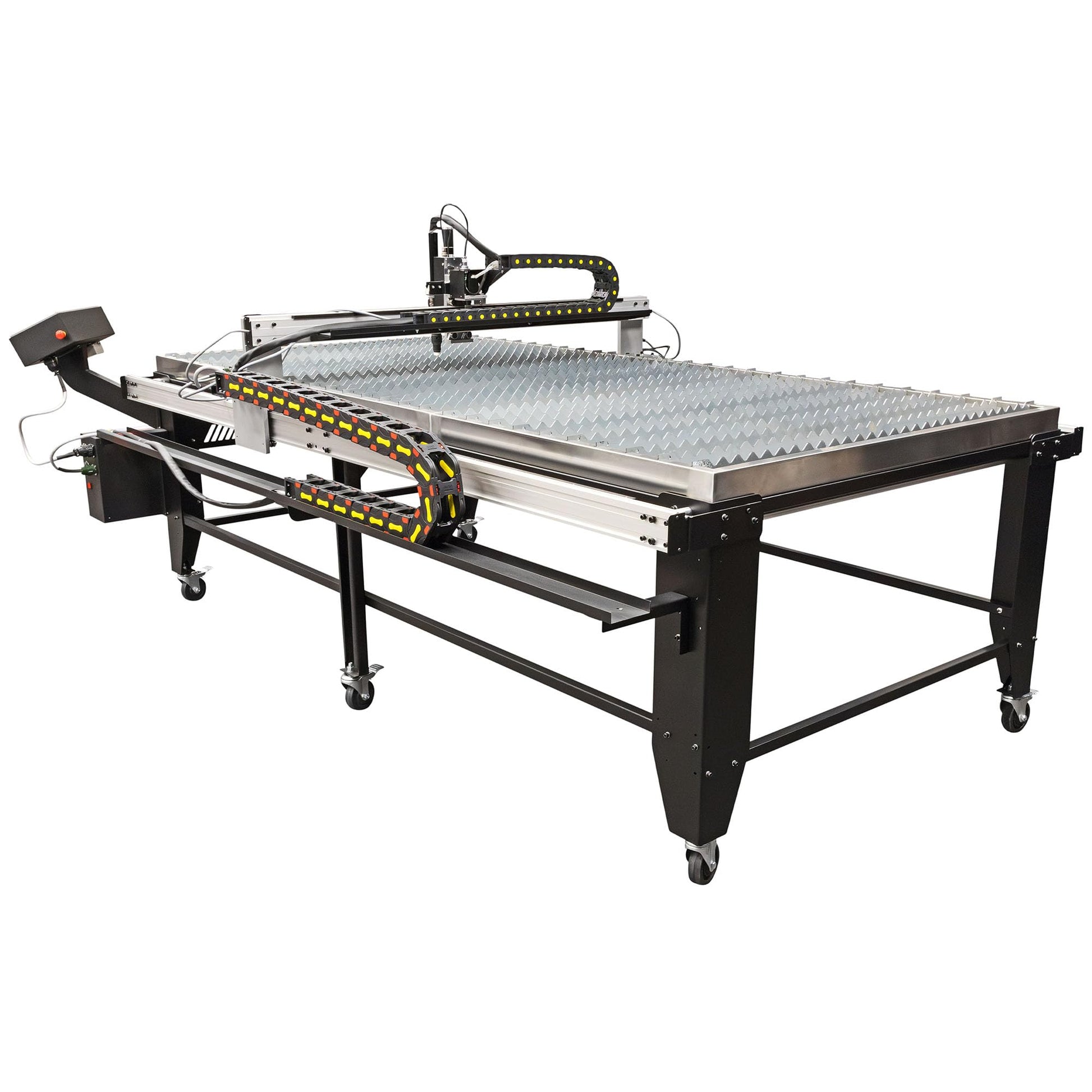

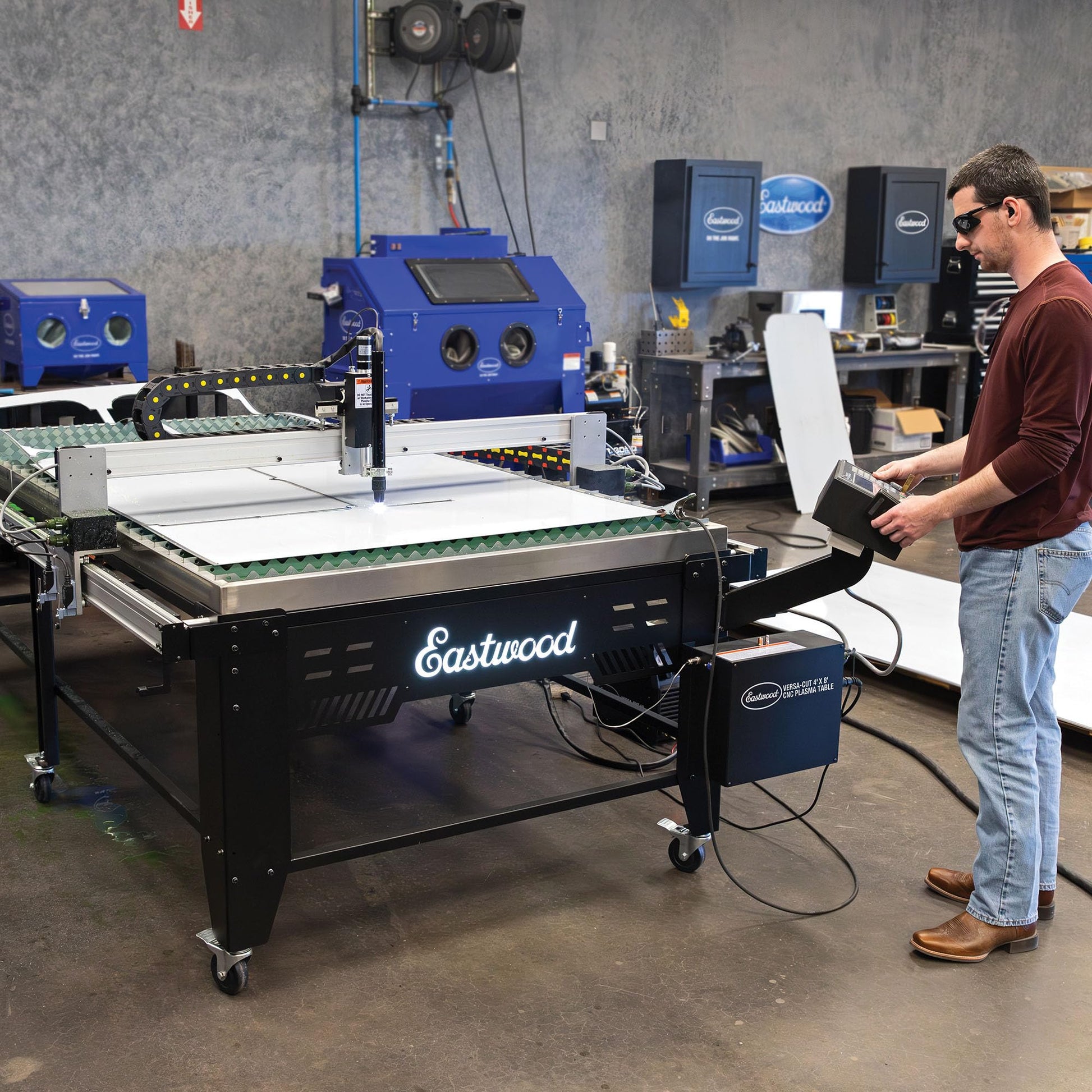

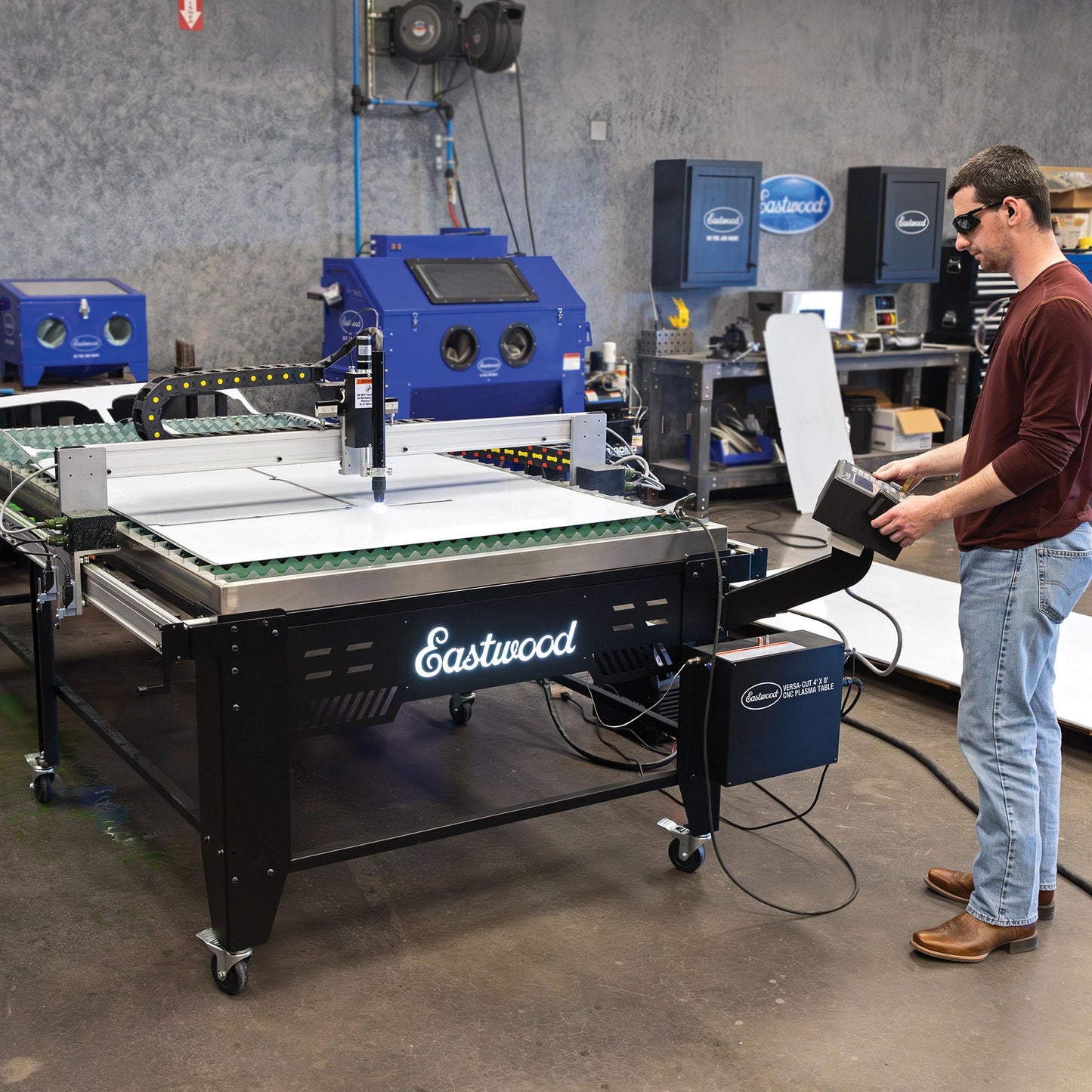

Eastwood Versa Cut 4X8 CNC Plasma Metal Cutting Fabrication Table

Brand: Eastwood

Color: Black

Features:

• ✅Large-Scale Cutting Area: A massive 49' x 96' torch travel accommodates full sheets of steel, aluminum, and stainless steel without indexing.

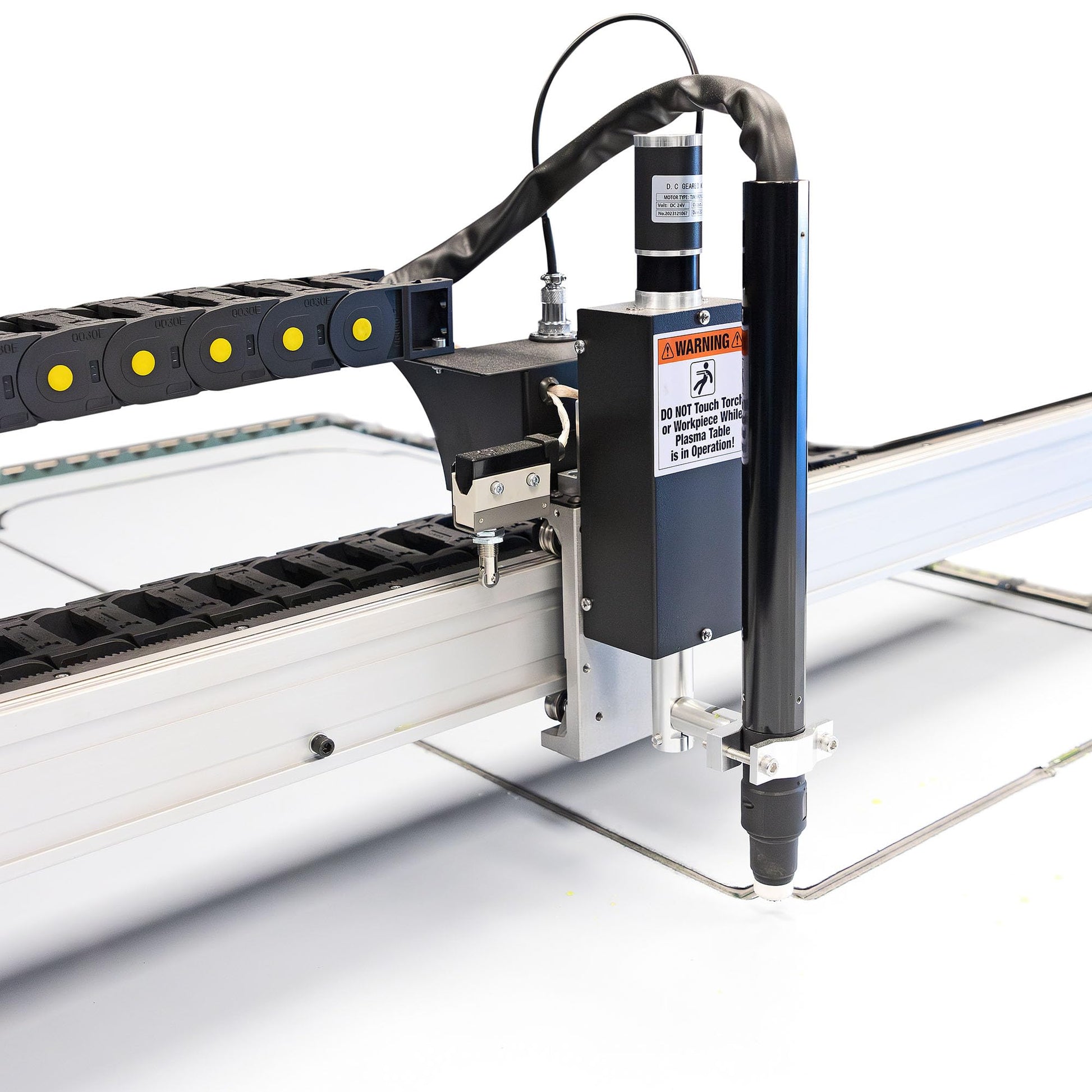

• ✅Integrated THC: The Automatic Torch Height Controller prevents torch crashes and ensures consistent cut quality across uneven or warped surfaces.
• ✅Standalone Control: Operate your table without a dedicated computer using the LCD color interface and simple USB file transfer.
• ✅High-Precision Movement: Features a robust rack-and-pinion design and stepper motors for ±0.2mm accuracy and professional-grade repeatability.
• ✅Included Waterbed: Enhances shop safety and comfort by reducing smoke and sparks, while the rigid slat bed provides stable material support. This listing is for CNC Table only - Plasma Cutter/Torch Sold Separately.

model number: 74089

Part Number: 74089

Details: Versa-Cut 4’ x 8’ CNC Plasma Table is the solution for industrial-scale precision at an accessible price point. Handles a full 4-foot by 8-foot metal sheets, this expansive table eliminates the need for pre-cutting material, allowing you to move directly from the steel supplier to the gantry. Whether you are producing complex automotive chassis components or large-scale metal art, the Versa-Cut 4x8 provides the workspace necessary for professional, high-volume production.
At the heart of this system is a standalone CNC controller that operates completely independent of a PC, protecting your electronics from the harsh environment of a metal shop. This intuitive interface comes pre-loaded with 50 standard shapes and seamlessly integrates with Autodesk Fusion 360 for custom G-code projects. Combined with a high-precision rack-and-pinion drive system, the table delivers an incredible ±0.2mm movement accuracy, ensuring every cut is as clean and repeatable as the last.
Specifications
Power Requirements: 120±10% VAC, 50/60 Hz, 5A
Plate Capacity: 48' x 96' x 0.5'
Weight Capacity (includes workpiece and full waterbed): 1543 lbs.
Waterbed Fluid Capacity: 67.1 gal
CNC Torch Travel X-Axis: 49.2'
CNC Torch Travel Y-Axis: 96.06'
CNC Torch Travel Z-Axis: 2.1'
Assembled Waterbed Dimensions X-Axis: 52.76'
Assembled Waterbed Dimensions Y-Axis: 107.09'
Assembled Waterbed Dimensions Z-Axis: 2.75'
Overall Assembled Dimensions (W x D x H): 77.00' x 125.00' x 50.00' or 55.12' with casters
Overall Assembled Unit Weight: 582 lbs.
Movement Accuracy: ± 0.2mm
Cutting Accuracy: ± 0.5mm
This listing is for CNC Table only - Plasma Cutter/Torch Sold Separately.
**Only plasma cutters with blowback (low frequency) start are permitted. High frequency start machines may damage the table electronics. Eastwood is not responsible for warranty revocation or damage incurred to your non-Eastwood plasma cutter.**

EAN: 0607174174607

Package Dimensions: 80.0 x 40.0 x 22.0 inches
