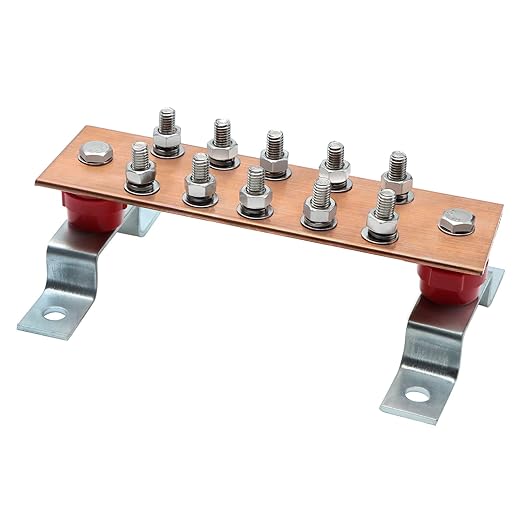

ELECTRAPICK Wall Mounted Copper Grounding Bar Kit, Copper Bus Bar 0.16"x 2.36"x 7.8" Ground Bus Bar with 10 Terminal Posit...

About this item

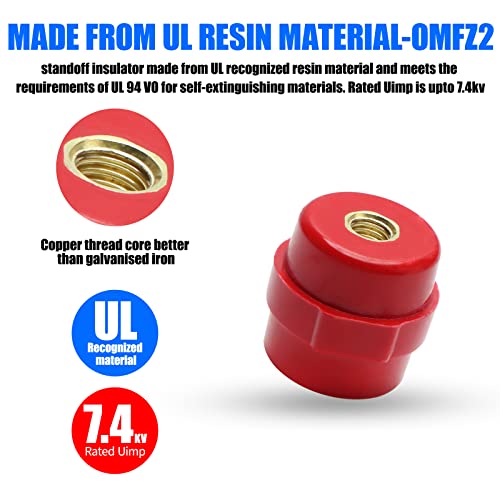

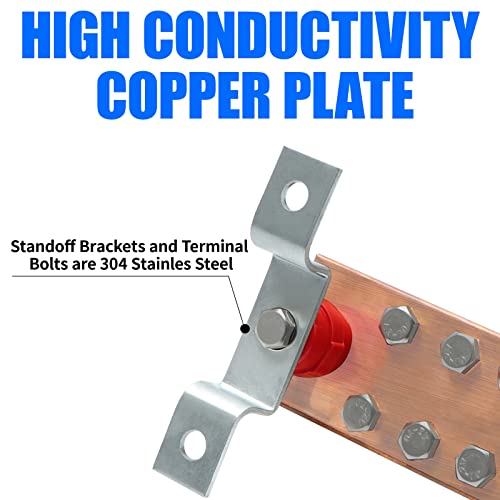

• 【Quality Material】The Copper Grounding Busbar Bar Kit is T2 grade and contains 99.9% copper, has standoff insulator made from UL recognized material.Terminal bolts and mounting brackets are made of stainless steel for sturdiness and rustproof. Featuring a 65HB high hardness, and a 1085 ℃ high melting point, which can withstand lightning current impact up to 200KA, resistant to corrosion, heat, and impact for a long service life.

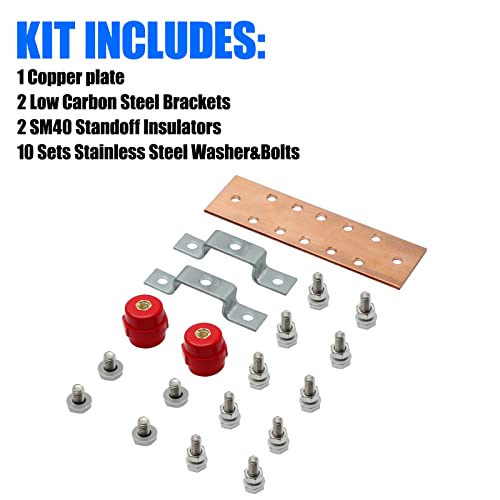

• 【Package】A high conductivity copper ground bar set. Including 1 x copper plate,2 x stainless steel brackets, 2 x SM40 polyester standoff Insulators, 10 x sets of stainless steel washer & bolts, on the copper bar to connect multiple devices at the same time.Complete terminal bolts are assembled well before packaging to avoid mess.

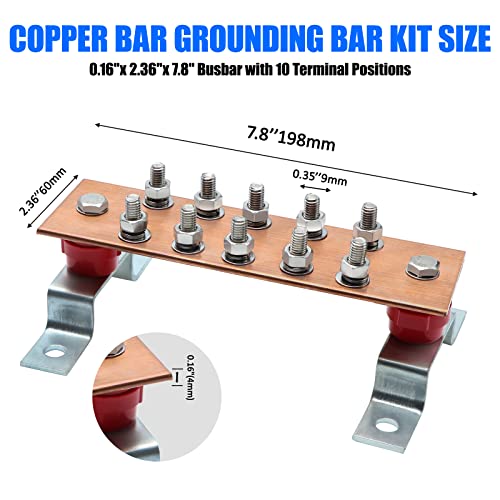

• 【Size】Copper bus bar:0.16'x 2.36'x 7.8'(4x60x198mm),Thickness 0.16'(4mm),Width 2.36'(60mm),Length 7.8'(198mm),hole 0.35'(9mm).
• 【Quick Installation】Grounding terminal bolts are slidable to adapt one or two hole cable lugs.The minimum width is 5/8' ,centre to centre distance compatible for most 2-hole lugs. Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily.
• 【Wide Application】The copper bus bar can be safely used in high-low power electrical appliances, switch contacts, power distribution cabinet, equipment grounding connections, bus ducts, network cabinets, server cabinets, and other electrical engineering.Wall mounted copper ground bar kit enables multiple ground points to be connected quickly and easily.
