More powerful :Voltage:14-84V (4-20S) ，Max Current:200A,ERPM:150000 .Provide your electric skateboard with more powerful power and a more exciting modification experience.
Supported Sensors:ABI，HALL，AS5047，AS5048A
Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.. Please be careful to limit the Absolute Maximum Current below 250A.
Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.
model number: 75100 Dual ESC
Part Number: 75100 DAUL ESC

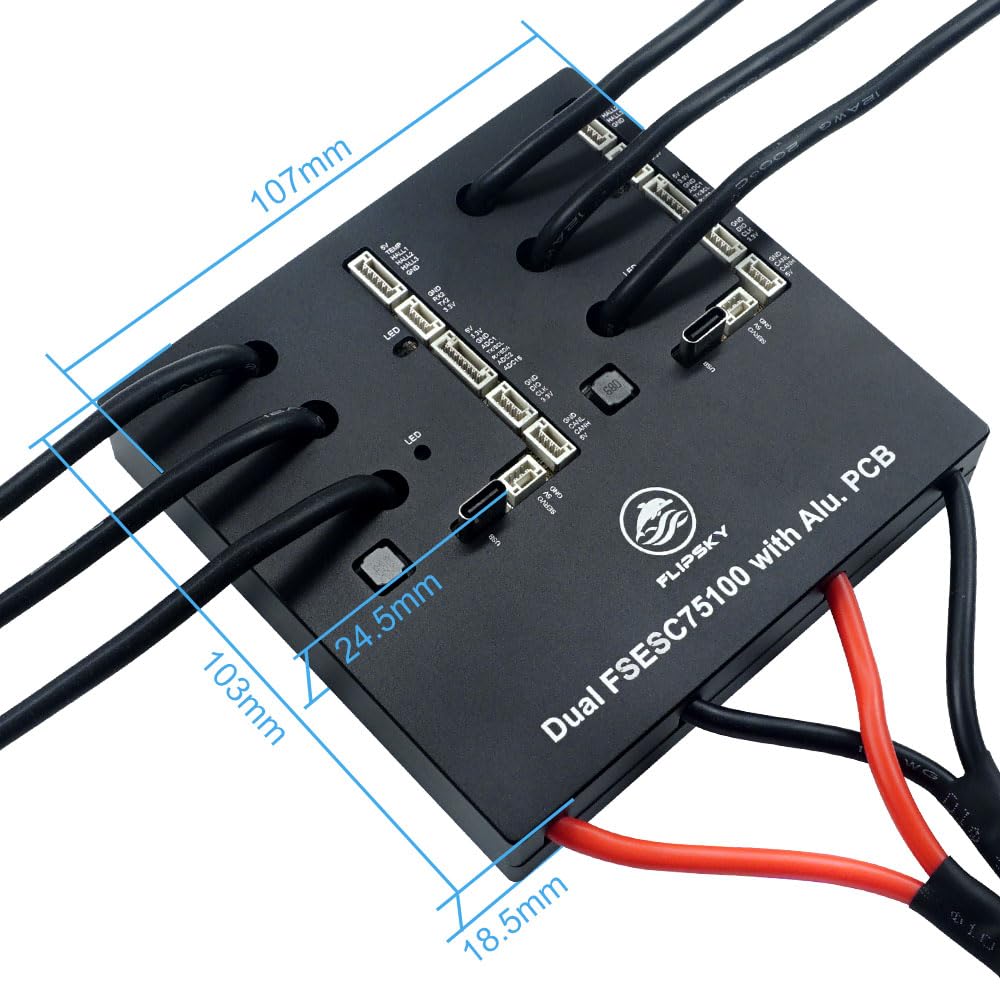

Details: Specs: Size:L107mm*W103mm*H18.5mm Voltage:14-84V (4-20S safe) Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting and ambient temperature around the device! BEC:5V@1A Support BLDC square wave mode control and FOC sine wave mode Firmware: latest (firmware update supported) ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 12AWG Programmable: Yes Regenerative Capacity: Yes
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
