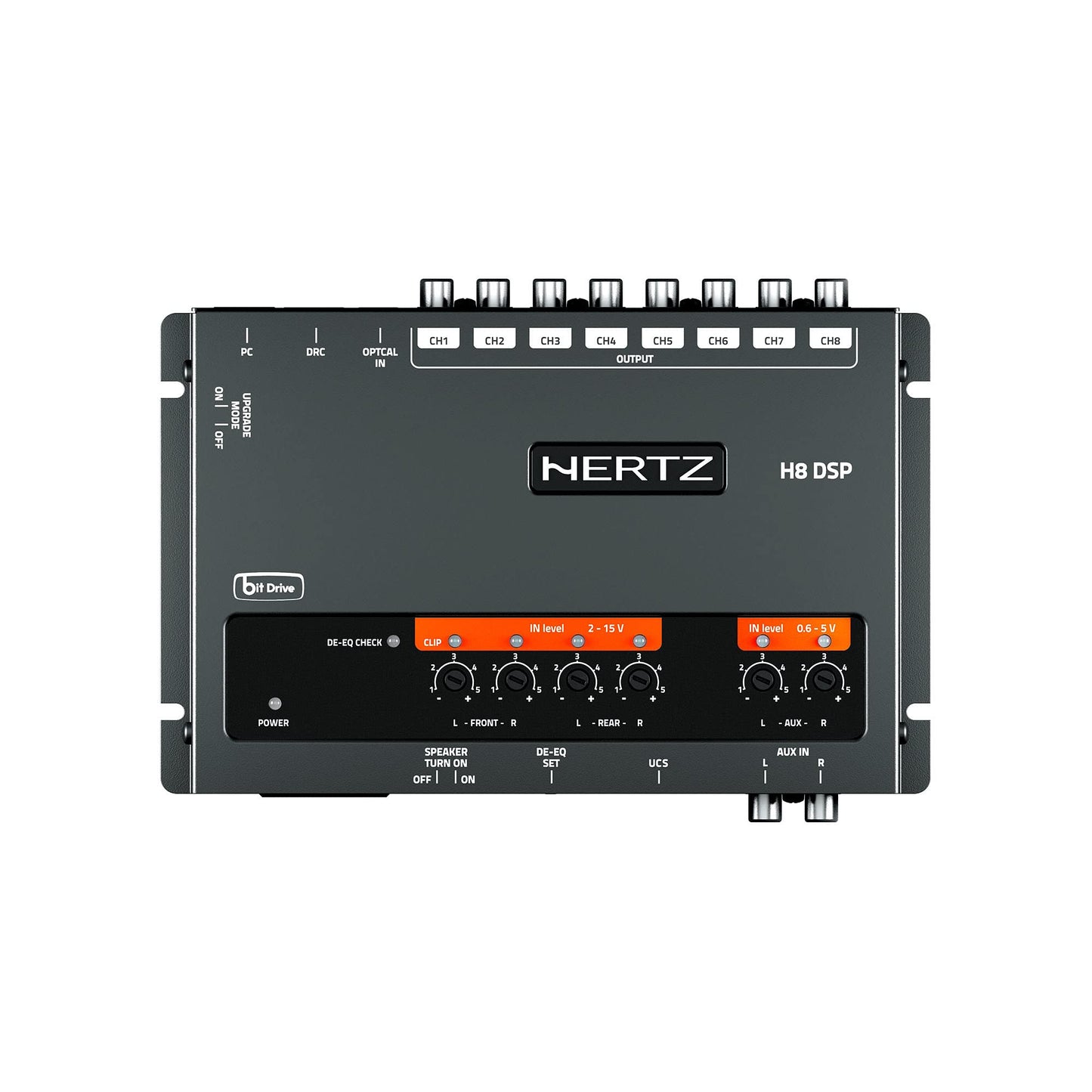

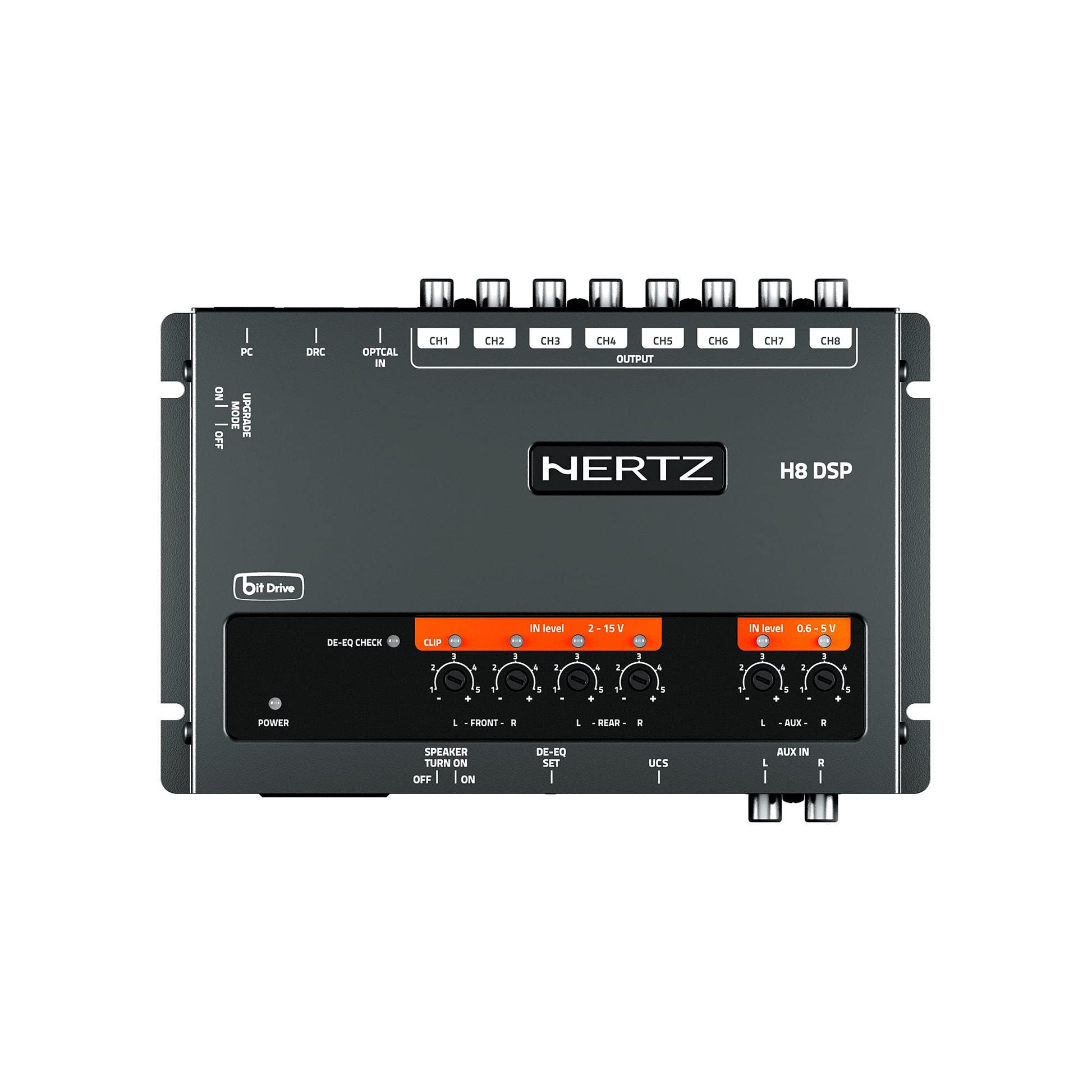

Hertz H8-Dsp-Drc High Performance 8 Channel Digital Interface Processor + Drc He Remote Control

Hertz H8 Dsp Car Audio Processor Is Capable Of Interfacing With Any Analog And/Or Digital Source, Transforming Ordinary Audio Into A High-Performance Integrated System. The Simple And Intuitive Computer Software Ensures A Wide Array Of Adjustments To Improve The Acoustic Response Of A Complex Environment Like The Car Compartment. It Provides 7 Signal Inputs With A Variety Of Connection Options: Four High-Level Inputs, Also Accepting Low-Level Pre-Amplified Signals; A Stereo Auxiliary Input And An Optical Digital Input Accepting Signals At A Sample Rate Up To 96/24 Bit. The Optical Digital Input (Selectable Through The Drc He Remote Control And From The Optical / Aux Select Terminal) Nullifies Interferences And Signal Deteriorations Also By-Passing The Analog Signals A/D Conversion Stages. Power Supply - Operating Power Supply Voltage: 10.8 14.4 Vdc Power Supply: 7.5 15 Vdc Idling Current: 0,4 A Switched Off Without Drc: 2,5 Ma Switched Off With Drc: 4 Ma Remote In Voltage: 6,5 15 Vdc (1,3 Ma) Remote Out Voltage: 12 Vdc (130 Ma) Signal Stage - Distortion - Thd @ 1 Khz, 1V Rms Output: 0,005% Bandwith @ -3 Db: 10 22K Hz Channel Separation @ 1 Khz: 85 Db Input Sensitivity (Speaker In): 2 15 V Rms Input Sensitivity (Aux In): 0,6 5 V Rms Input Impedance (Speaker In): 2,2 Ko Input Impedance (Aux): 15 Ko Max Output Level (Rms) @ 0.1% Thd: 4 V Rms
