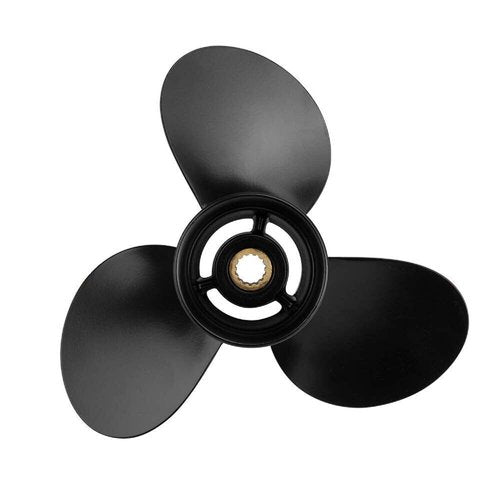

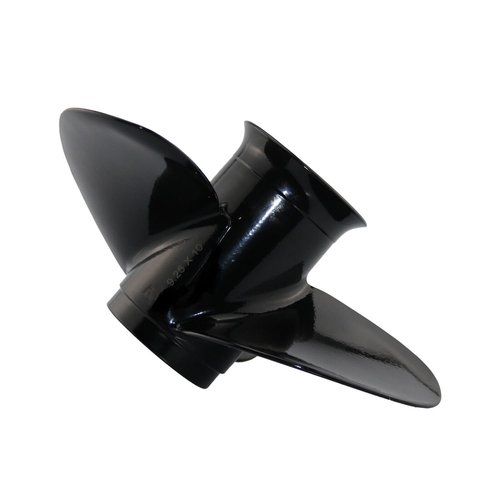

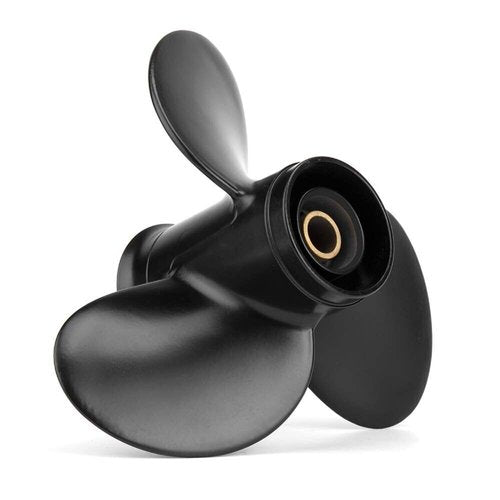

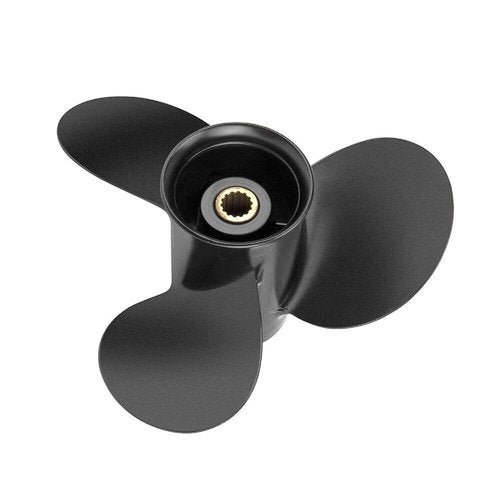

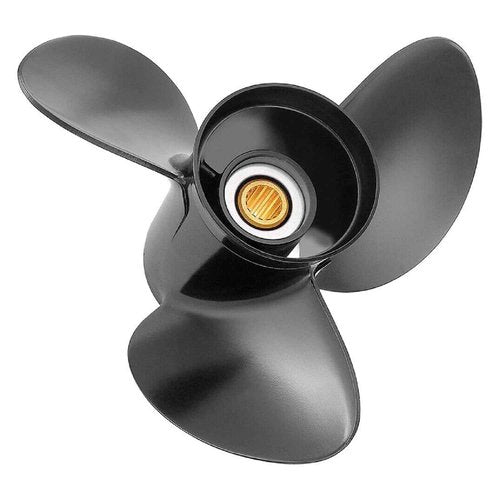

MARKGOO Propeller 9.25X10 for Mercury Outboard 9.9 12 15 18 20 HP Boat Engine Parts Aluminum Prop 9 1/4 x 10 3 Blade RH 14 Spline Tooth 48-897752A11

Brand: MARKGOO

Color: Black

Features:

• Propeller Specification: Diameter 9.25'X10' Pitch, 14 Spline Tooth, Right Hand Rotation, 3 Blades Aluminum-alloy Propeller, 2-1/2' Gearcase.
• Easy to maintain and repair.
• Good overall performance and value.
• Recommended for boats with top speeds less than 50 MPH.
• 3 Blade Die-Cast Aluminum.

Details: MARKGOO Outboard Propeller 9 1/4 X10 Pitch 14 Spline Tooth for Mercury Mariner Sears Force Marine Engines 9.9 15 20 HP
OEM Part No.48-897752A11, 897752A11, 815083A10, 897752A10, 803832002, QA2175R.
it fit outboard Engines 9.9-20 HP, RH, 2-1/2' Gearcase 14 Spline Tooth .
Recommended fit Engines less than 250hp, Top speed less than 50 mph / 80 kph
Boat types: Houseboat, Inflatable - Soft Hull, Inshore Fishing, Pontoon
PROPELLER SPECIFICATION:
Diameter: 9 1/4 inch
Pitch: 10 inch
Blade: 3
Tooth: 14
Rotation: Right
Material: Aluminum-Alloy.
VERY IMPORTANT: Kindly please check your boat handbook and find out correct size for your propeller. we suggest you to confirm your own propeller's diameter, pitch, rotation,OEM number, horsepower before the purchase.
APPLICATION: This guide is to be used as a reference only. You must verify fitment using your model or serial number.
Use for Mercury Mariner Tohatsu Nissan Outboard Engines 9.9 15 20 HP 2-1/2' Gearcase
Outboard Engines 9.9 HP 2005-UP
Outboard Engines 15 HP 2007-UP
Outboard Engines 20 HP 2007-UP
INSTALLATION INSTRUCTION:
Just remove prop locknut, locknut retainer and forward thrust washer. Then Install forward thrust washer, Insert drive sleeve into prop, Slide prop on prop shaft, Insert drive sleeve adapter, Slide locknut retainer, Install prop locknut, Insert sth to prevent spinning.

Package Dimensions: 10.0 x 8.7 x 5.1 inches
