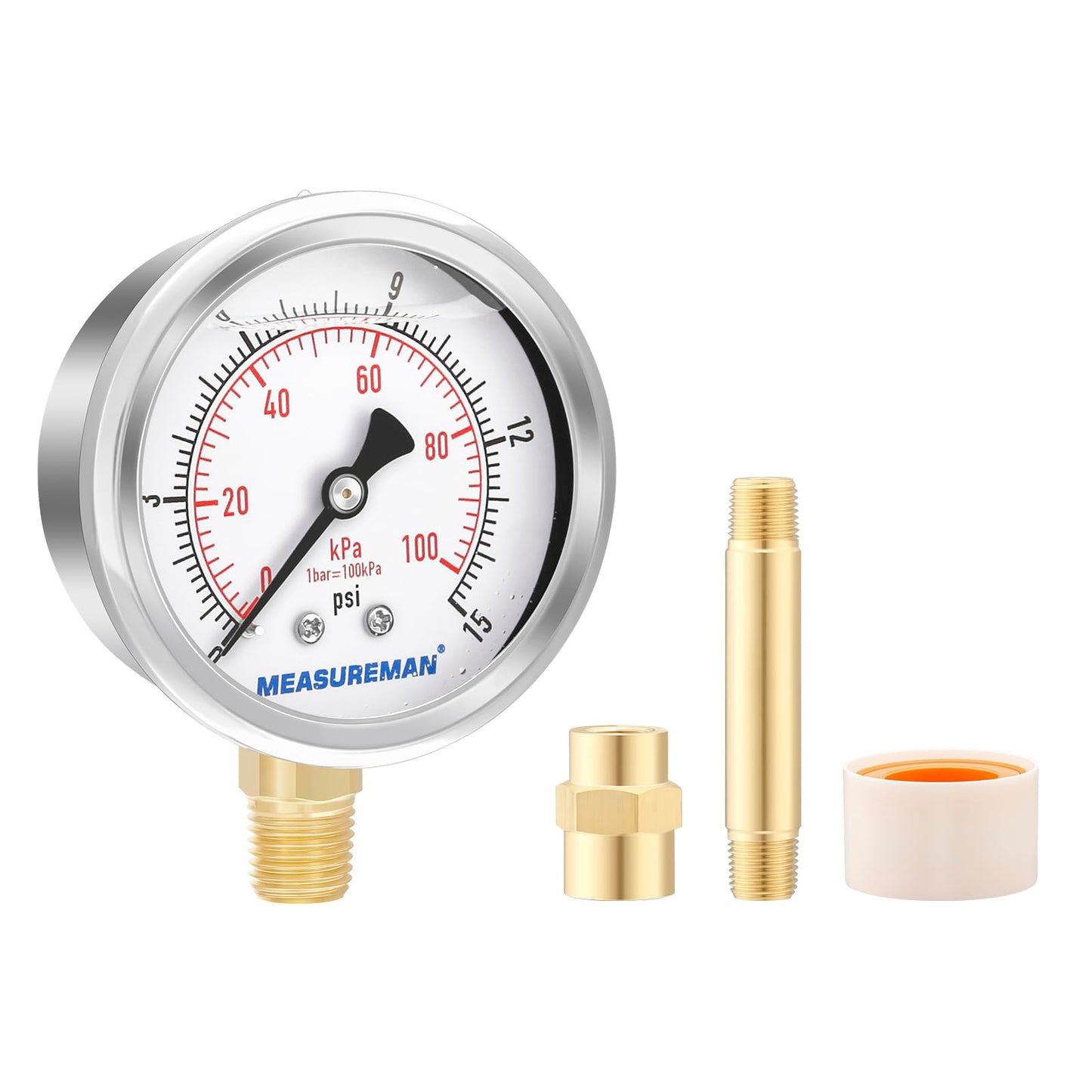

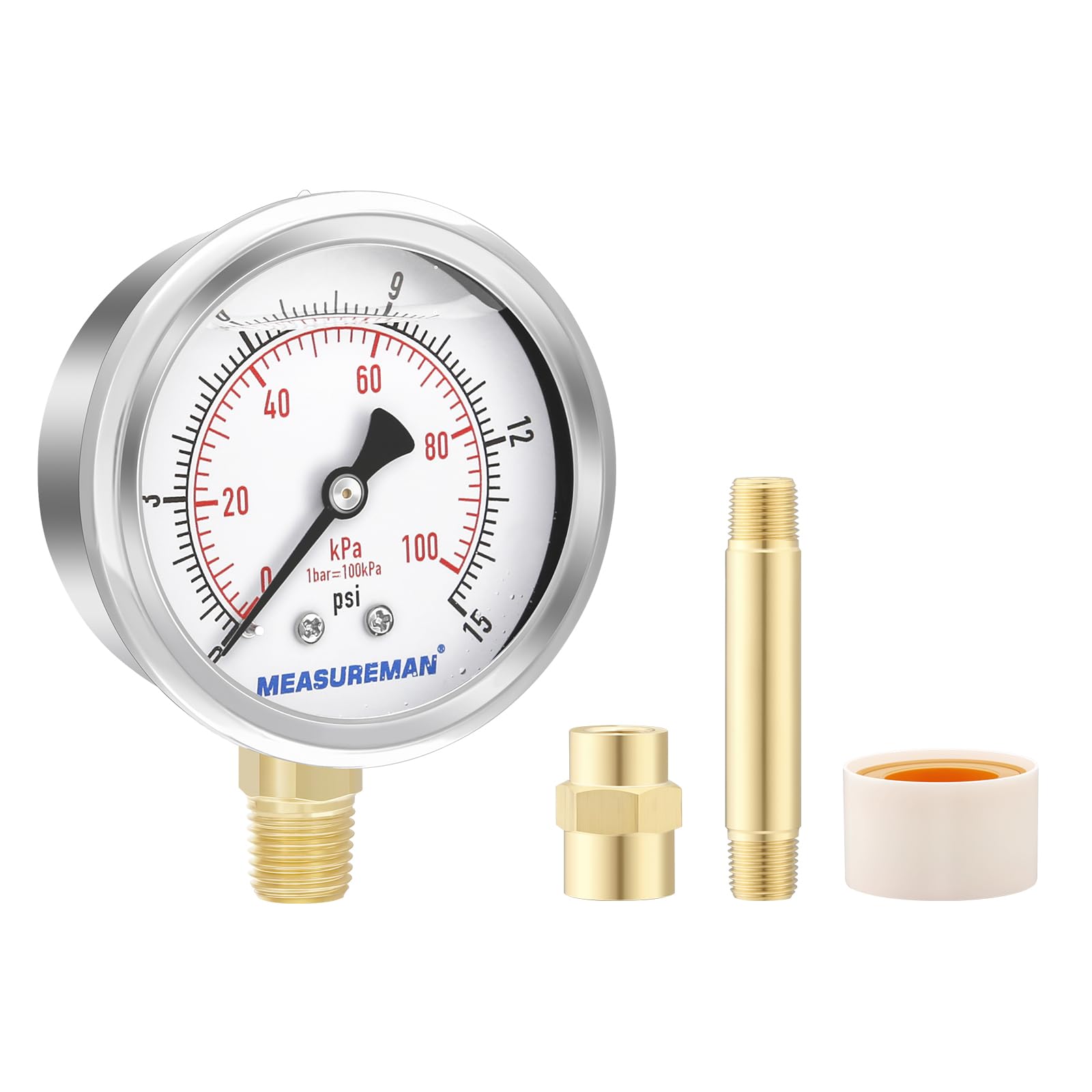

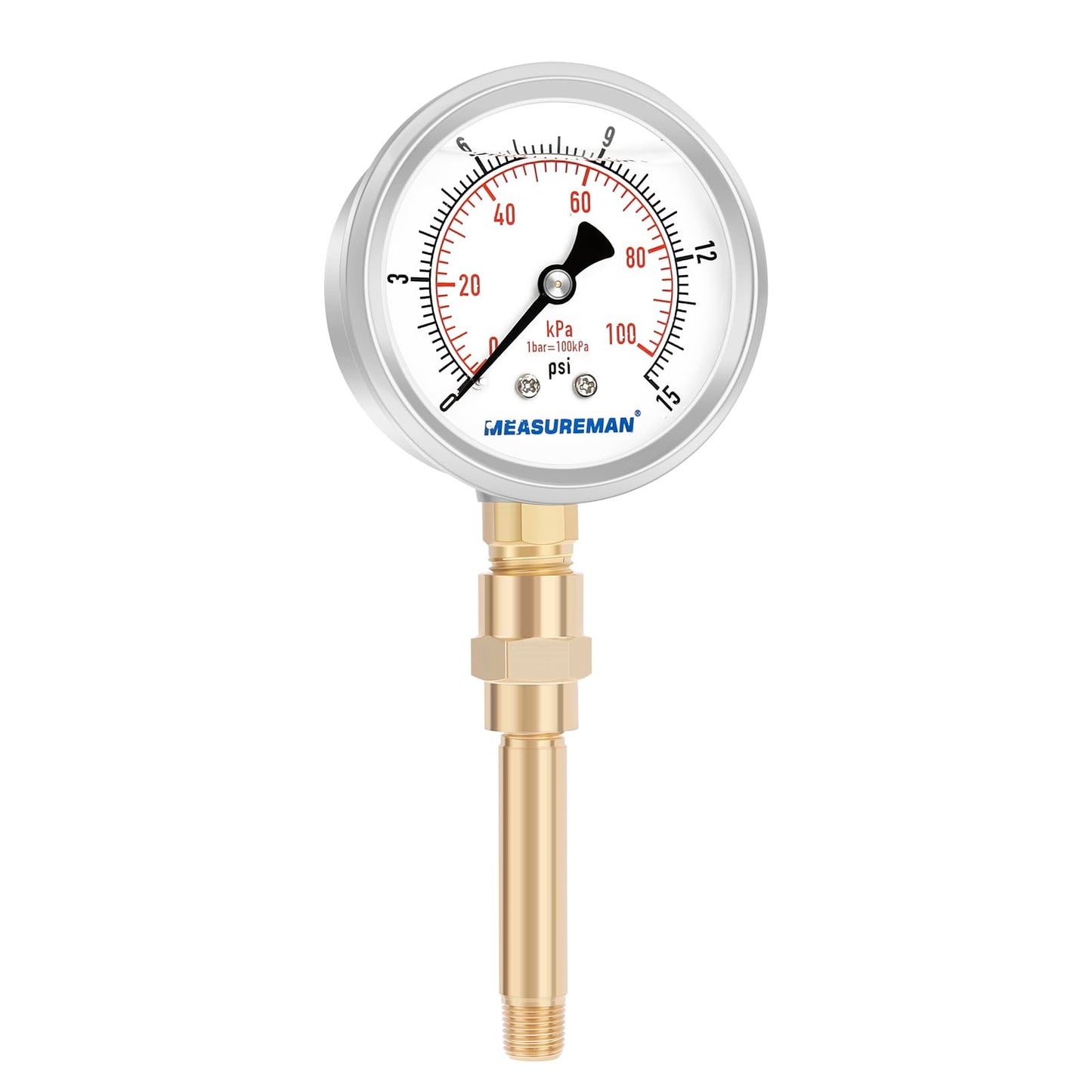

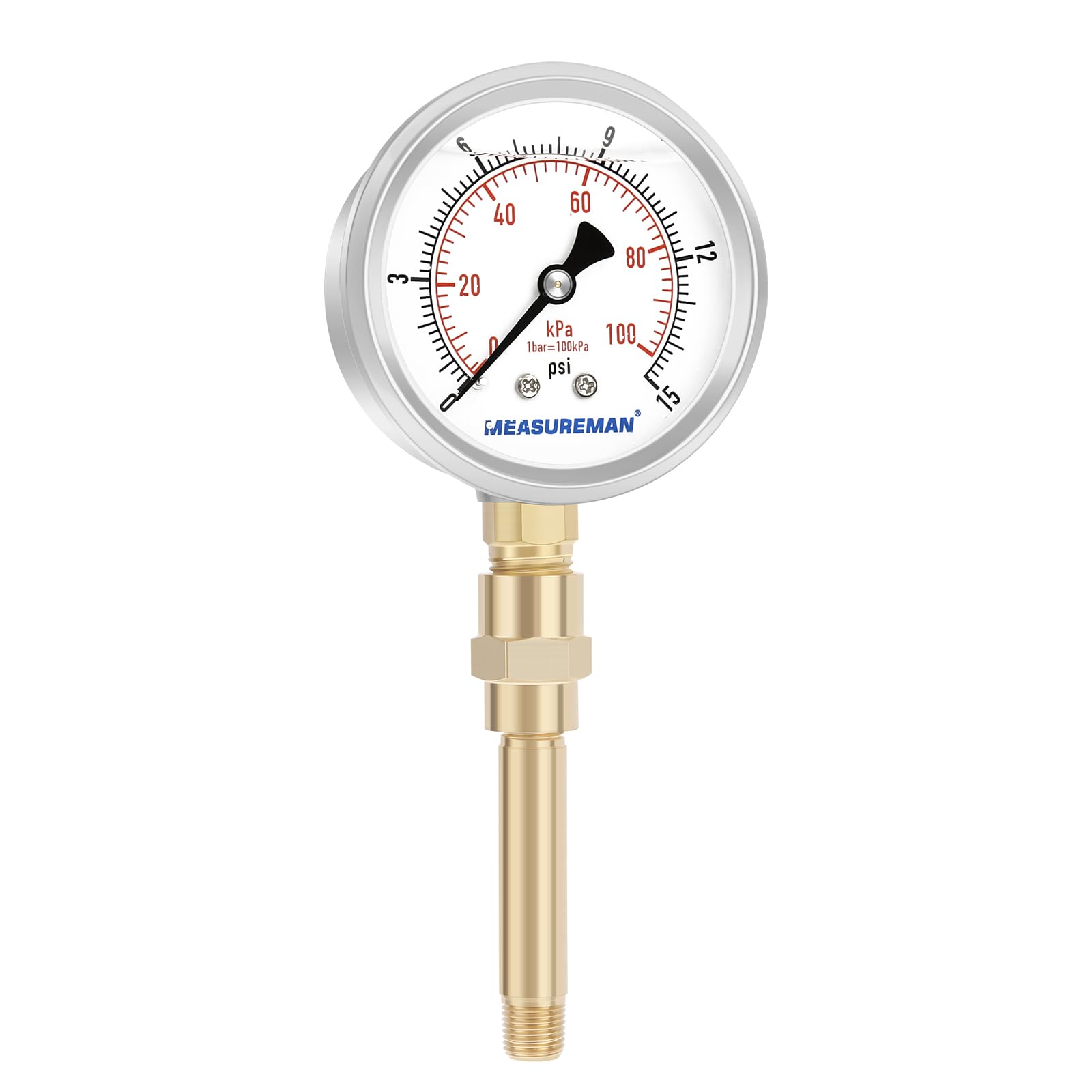

MEASUREMAN Heater Heavy Liquid Filled Duty Air Gauge Kit,Test All Low Pressure Portable Oil Fired Heaters 0-15 PSI

Brand: MEASUREMAN

Features:

• The FIRST STEP in diagnosing any heater problem should be checking the output of the air pump. Best Gauge Available.Large 2-1/2'Dial High Quality Gauge and Very Accurate+/-3-2-3%,Proper pressure is essential for efficient heater performance.

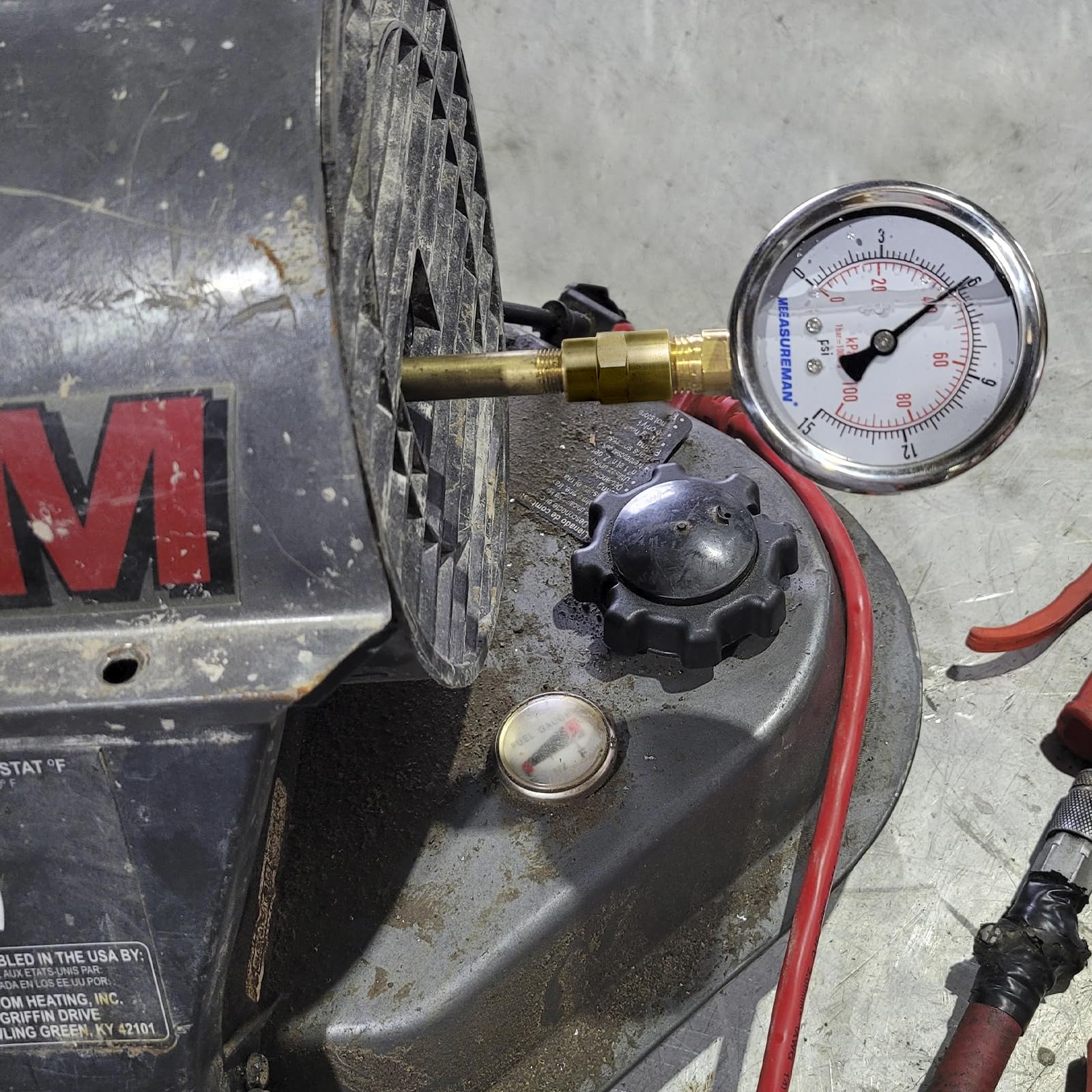

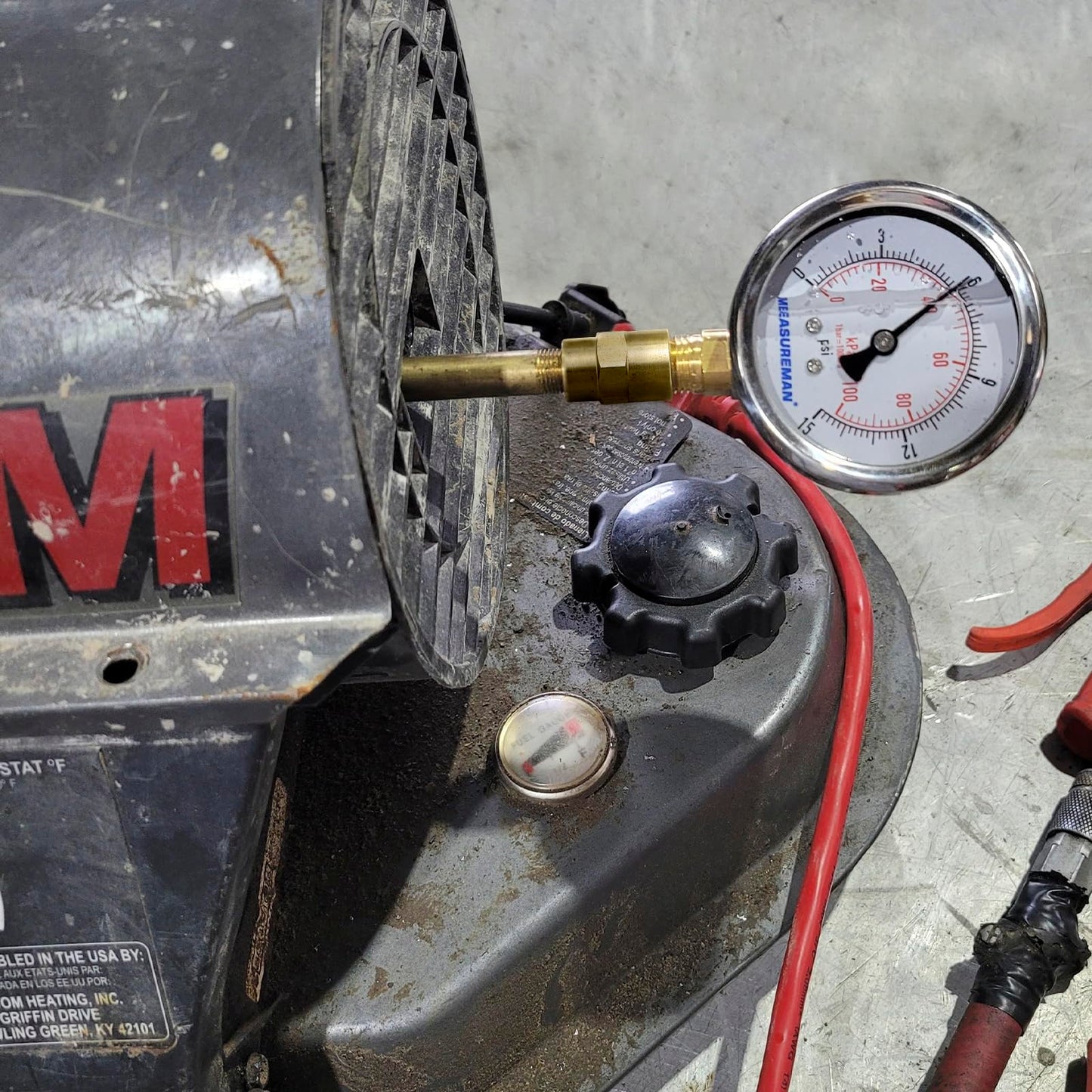

• The hole on the left has a square or slotted plug inserted.Remove the plug. Screw in the nipple end of the gauge into the threaded hole. Be careful not to cross thread the gauge into the threaded hole. Check for air leaks with soapy water.
• The other hole (on the right) has a screw with a hole which adjusts a ball and spring relief valve assembly. Carefully adjust the screw until the gauge is reading the pressure level that is specified on the heater's label.If operating properly, the pump should produce more pressure than is required to operate the heater.The relief valve allows the excess air to escape before being sent to the nozzle.
• If you are unable to reach the desired pressure spray soapy water around the seal of the end cover, at the same time check the plastic cover for a crack. A cracked end cover will not allow the heater to perform properly and will not allow for an accurate reading. The pump must be set at the specified pressure in order to have adequate fuel delivery an adequate fuel atomization.
• If you set the pressure to specs and the heater does not perform properly or the cone does not glow a soft red, then check for other fuel delivery problems such as a clogged fuel filter, cracked rubber hose, clogged or worn nozzle, or a cracked nozzle adapter. Soapy water lightly sprayed in these areas will quickly identify the problem most of the time. Any air leak will create problems.

Binding: Kitchen

Part Number: b96007ca-56e2-480c-87a4-ab584870f1ed

Details: Description

This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.
Dial size: 2-1/2''

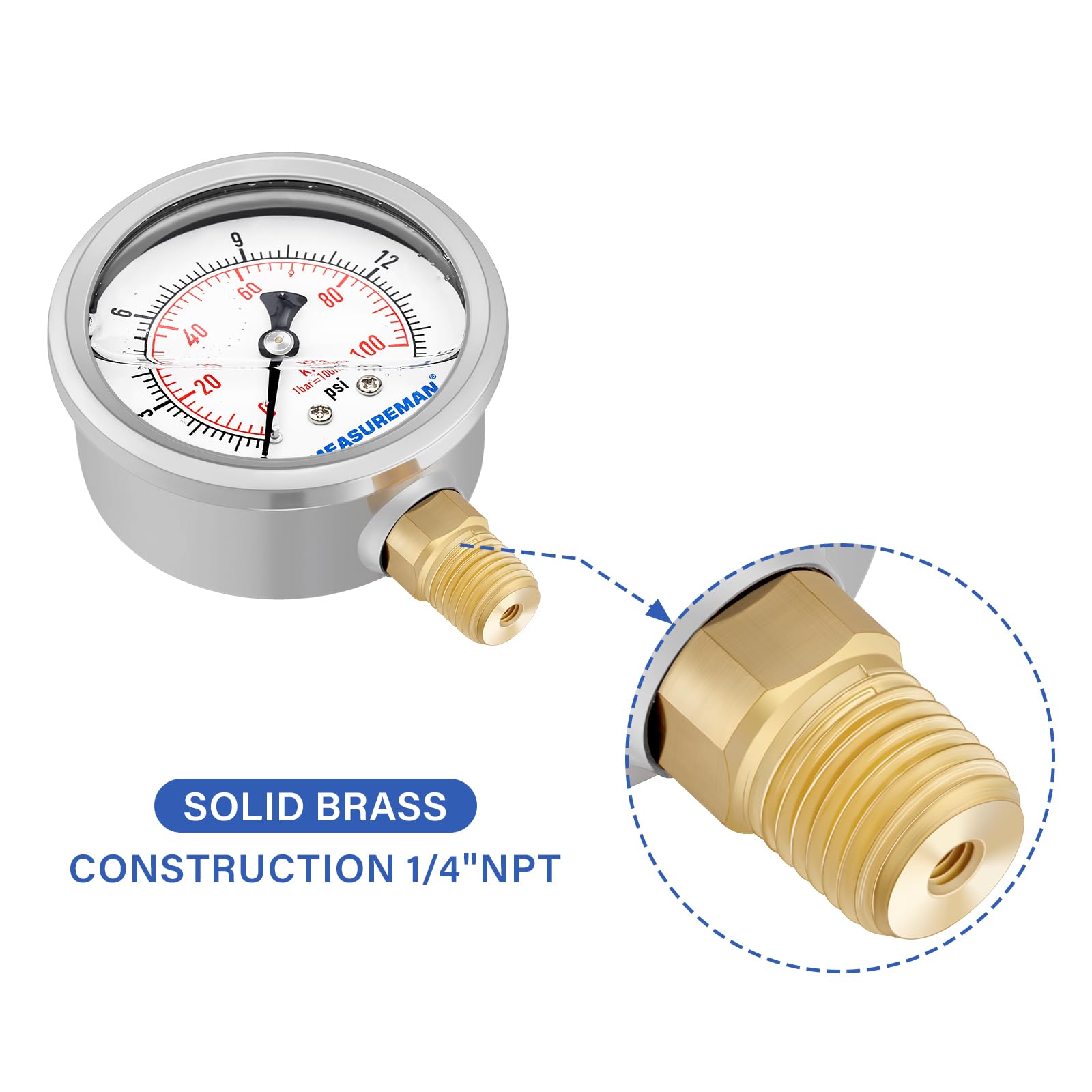

Process connection: 1/4''NPT lower mount

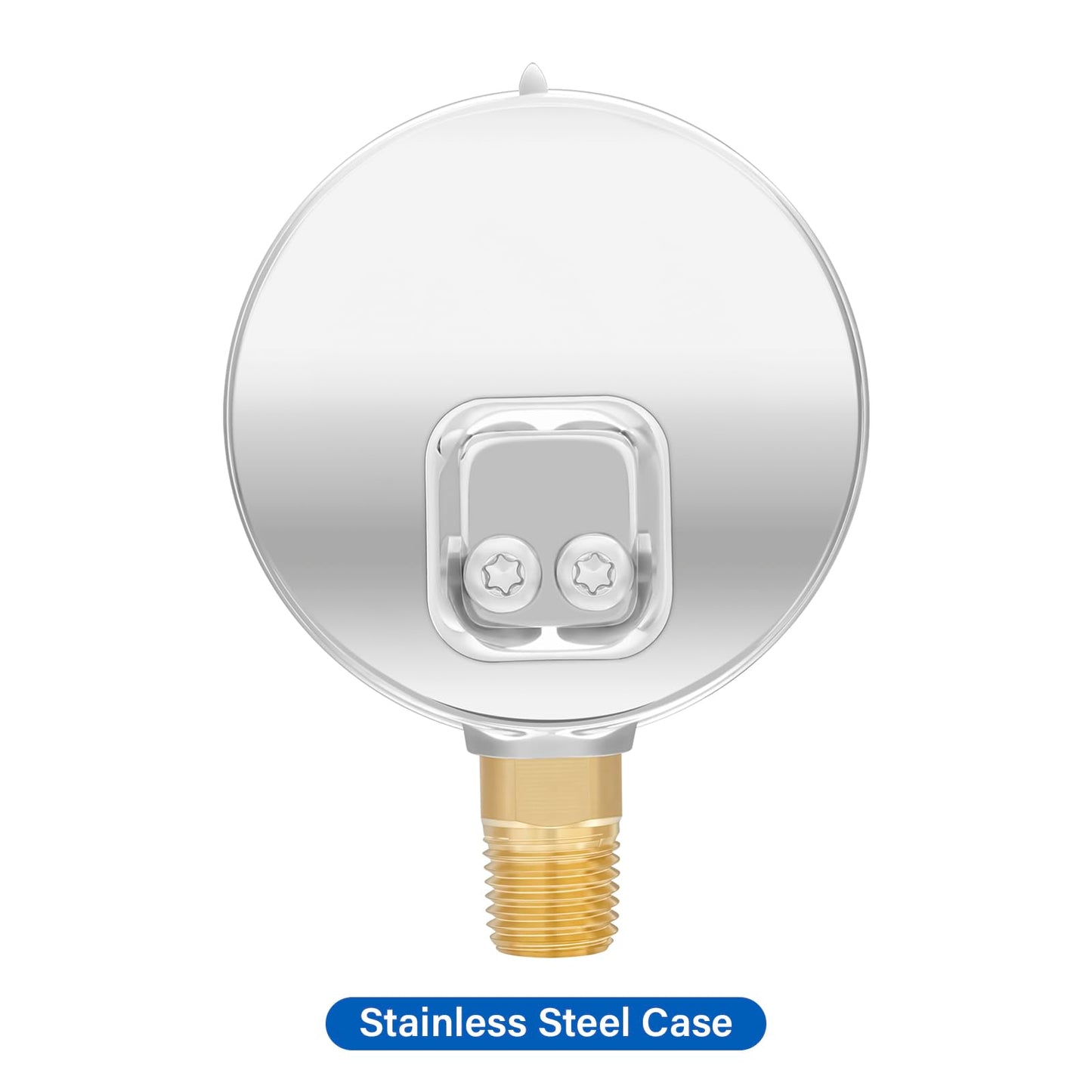

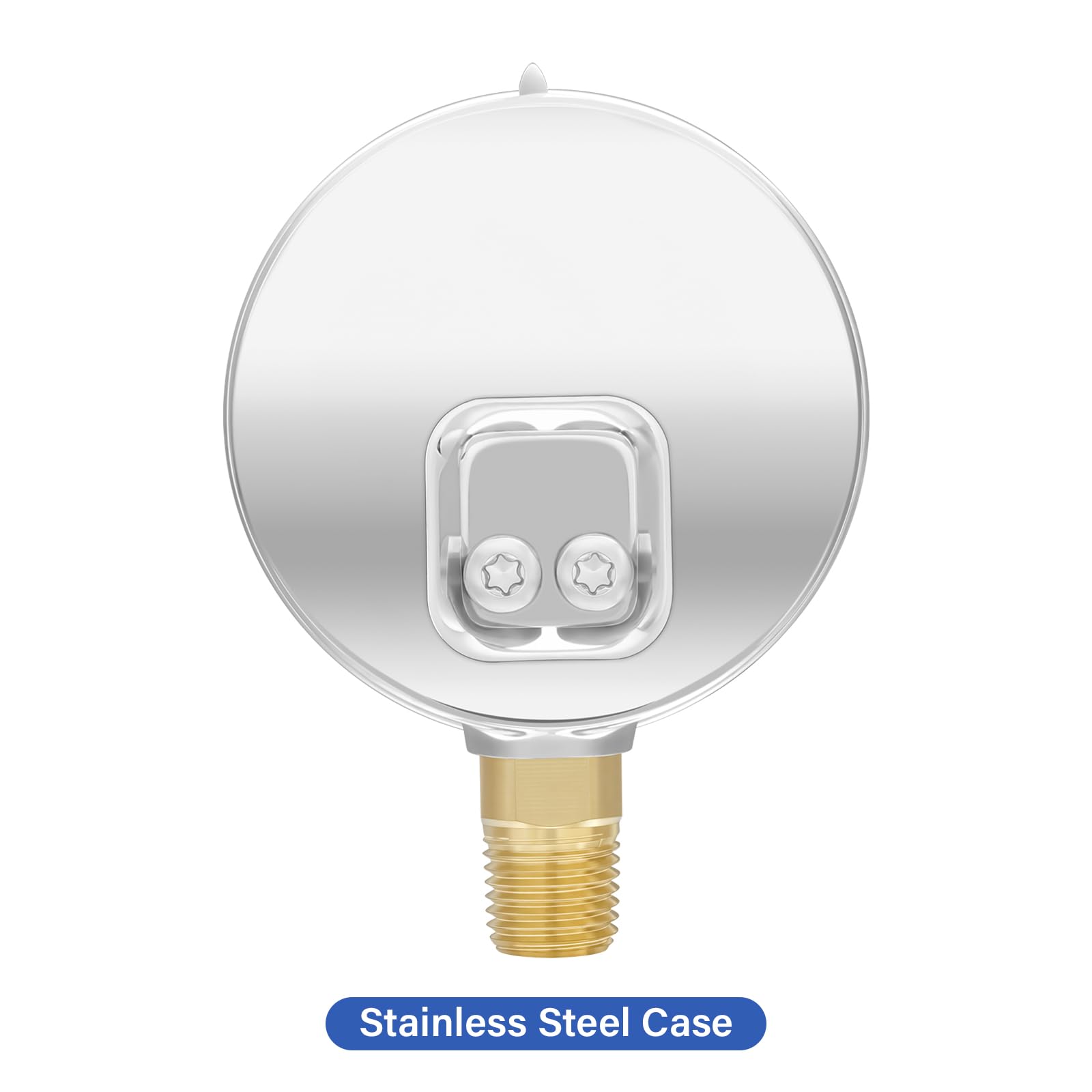

Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass
Connection: Brass, one piece design
Oil cap: rubber, gray color

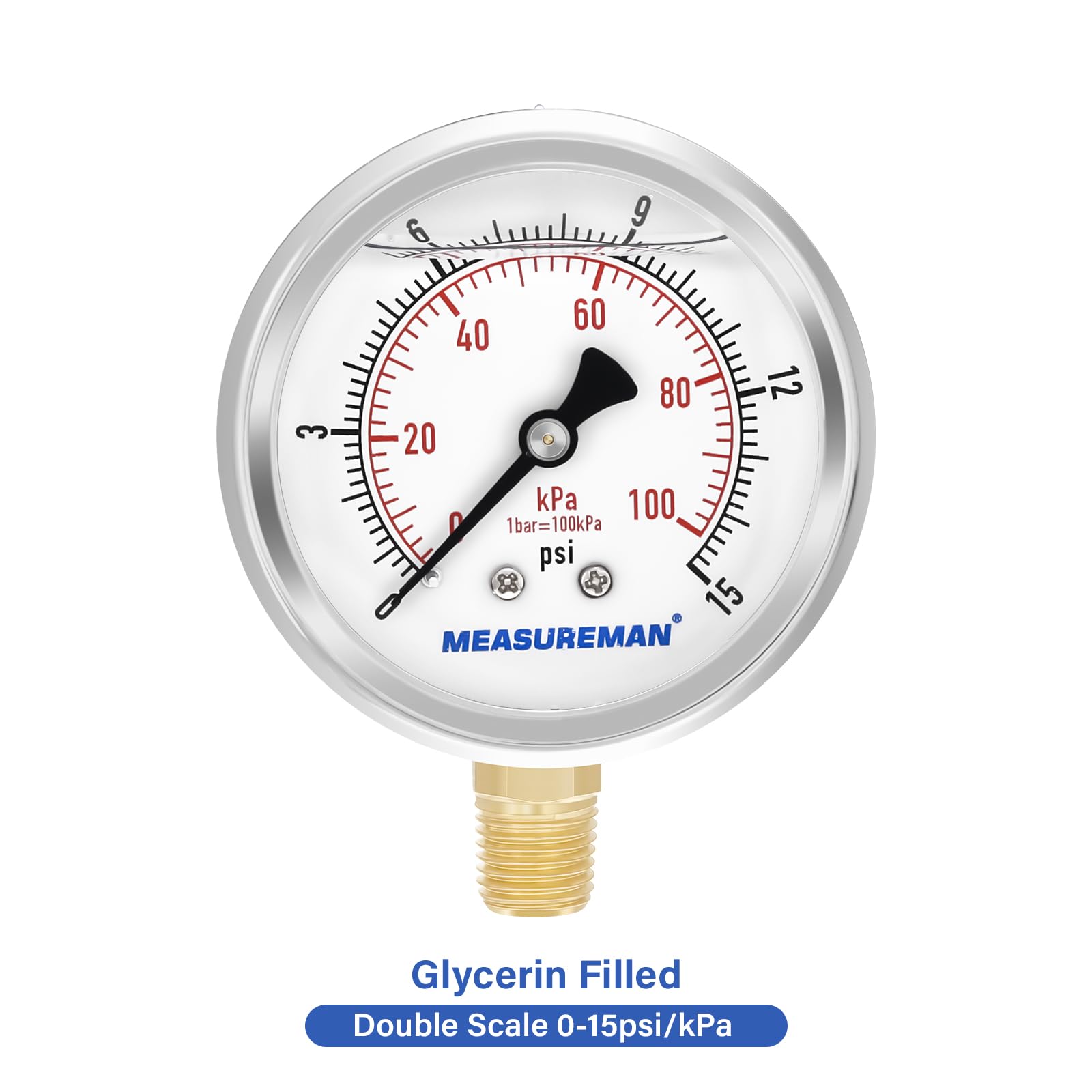

Filling: Glycerin filled, dampens the effect of vibration and pulsation
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-15psi/100kpa dual scale, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum'

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The 'Measureman' branded products are the combination of continuous good quality and affordable price. 'Measureman' products are selected and designed by professional engineers.

Package Dimensions: 4.1 x 3.1 x 1.7 inches
