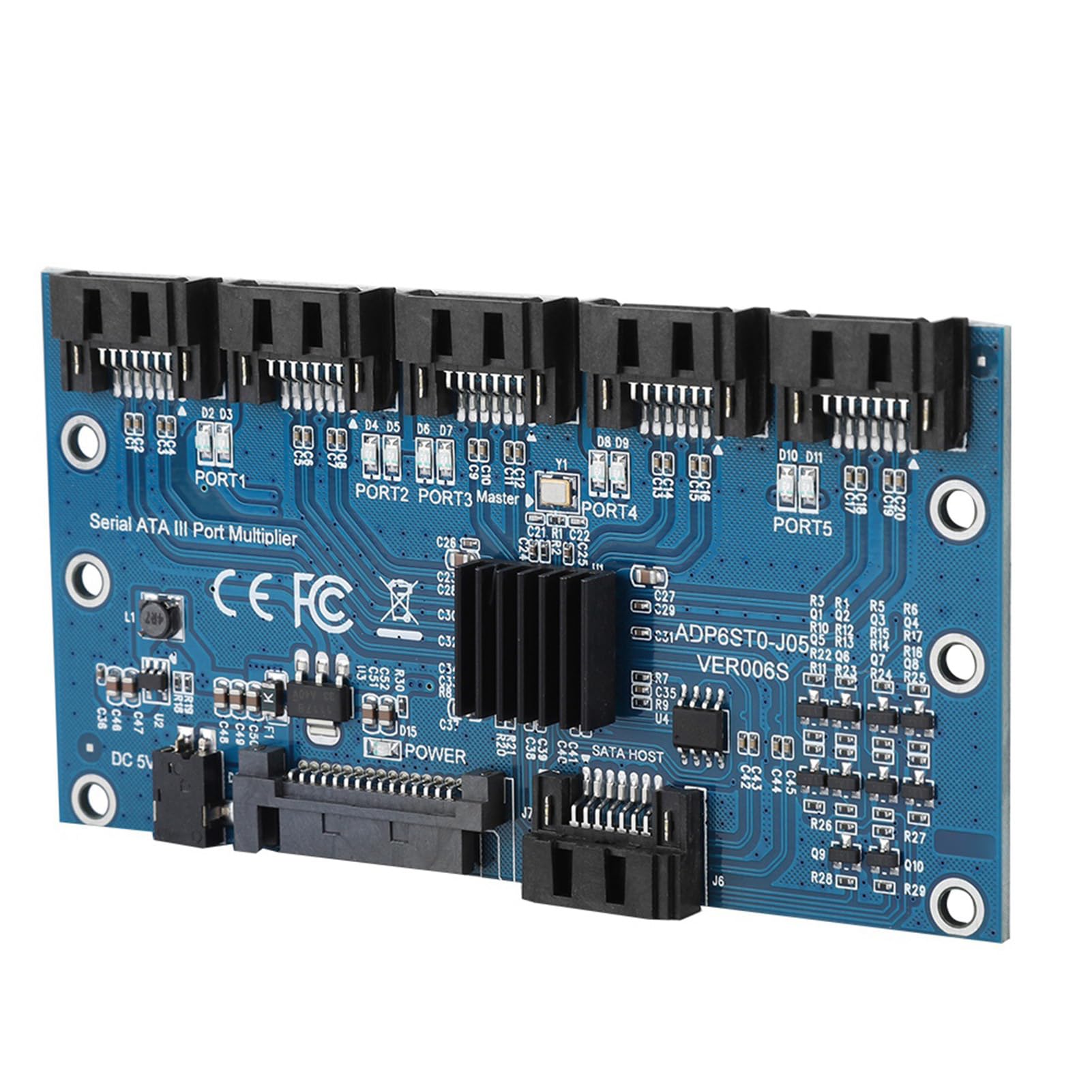

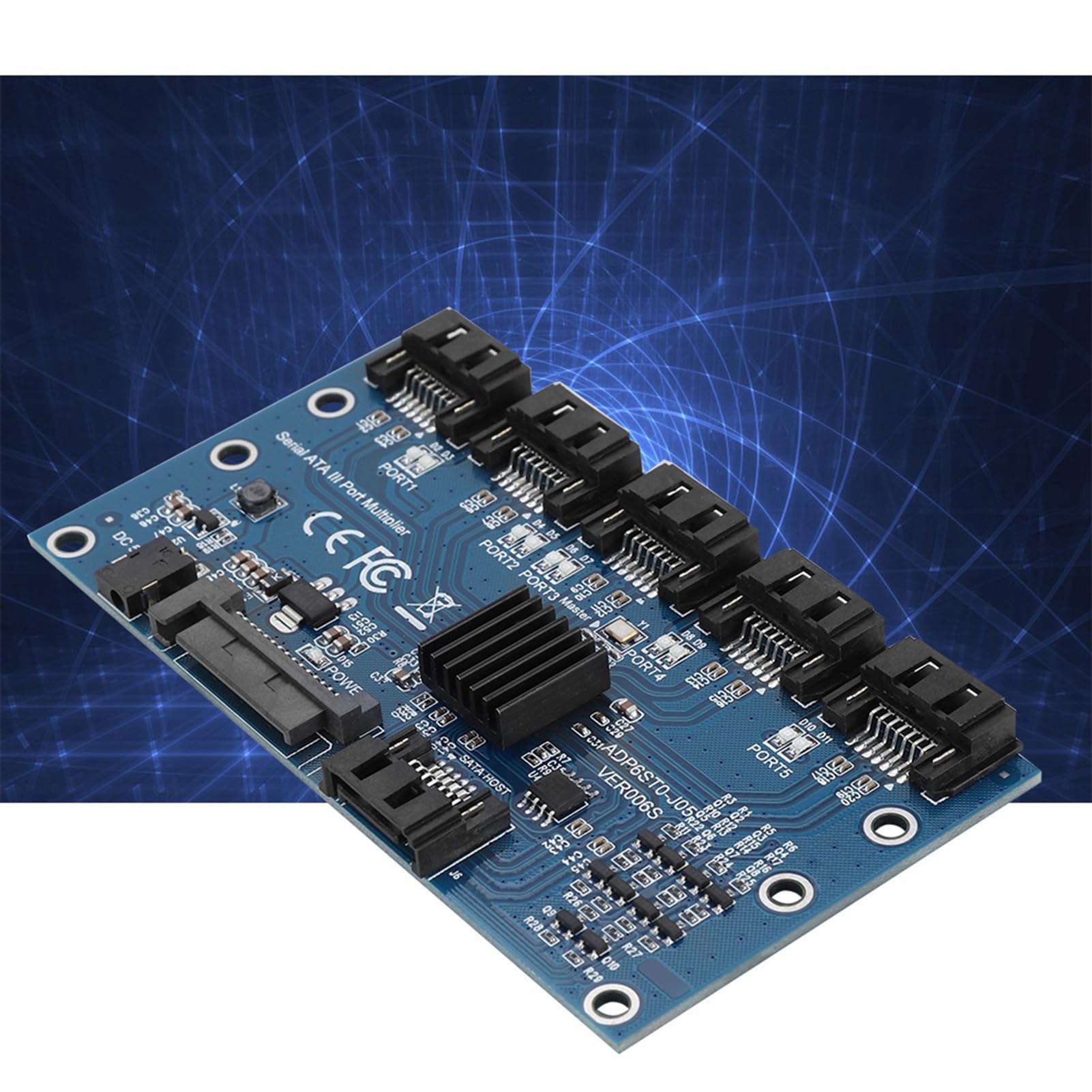

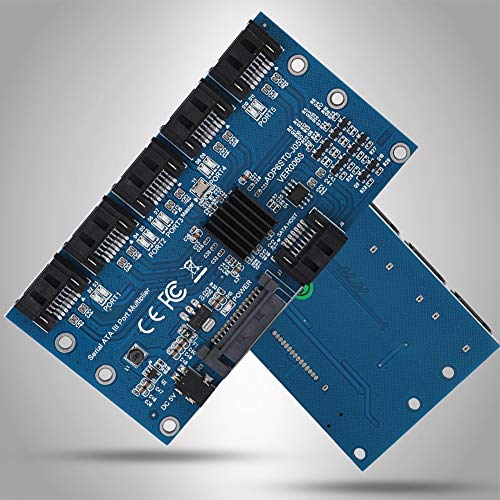

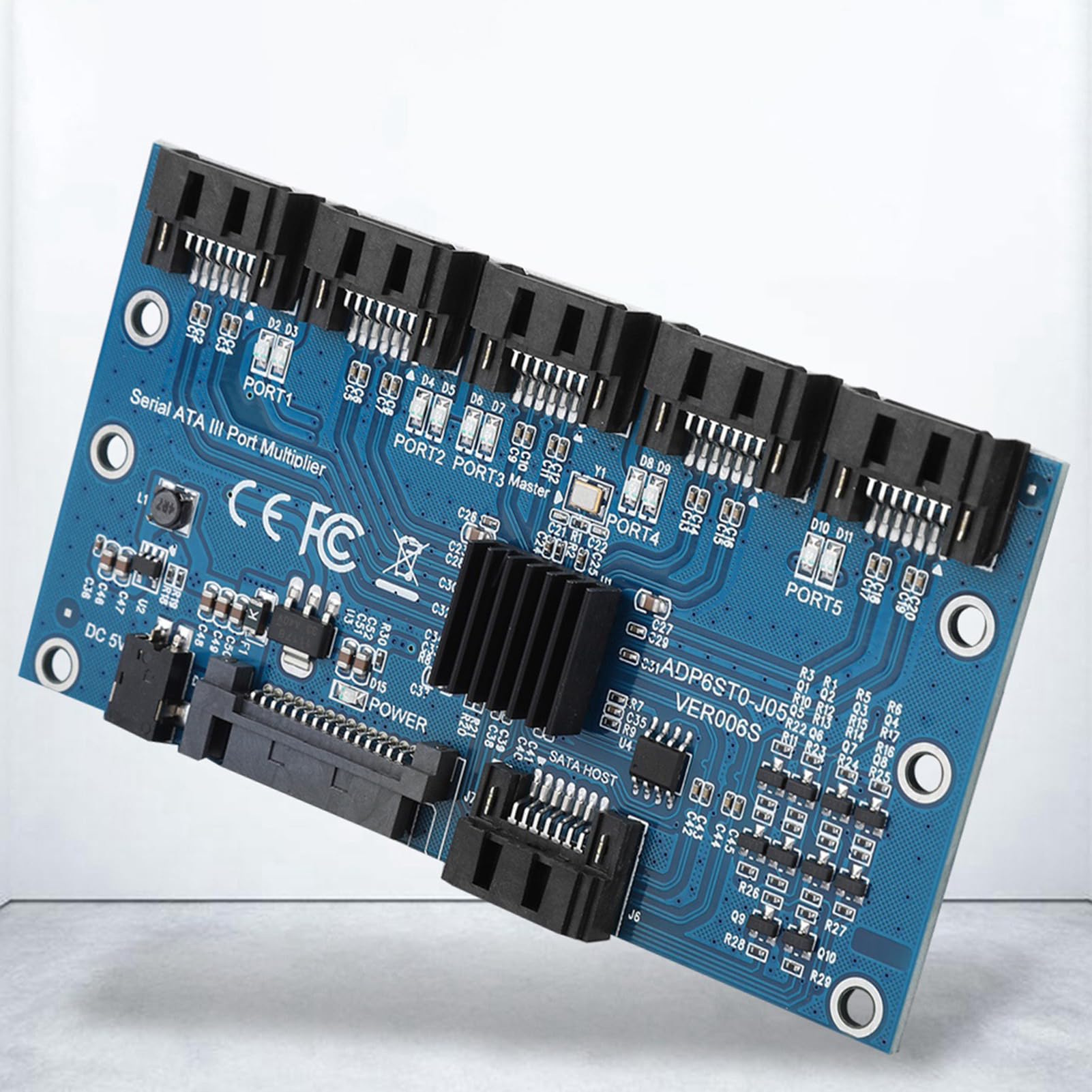

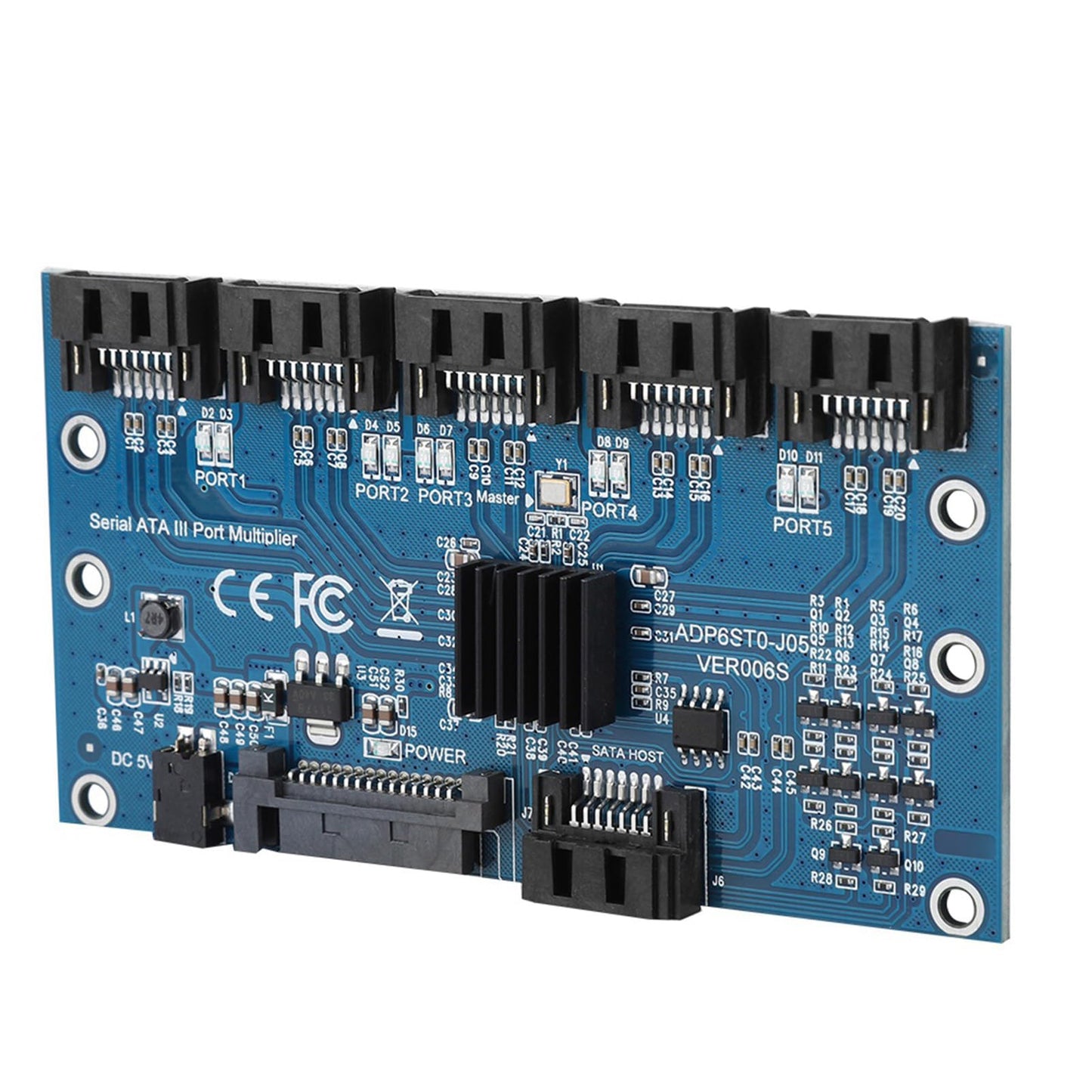

Sata3.0 1 To 5 Hard Disks Multiplier Adapter Converter Motherboard 6Gbps Interface Riser Support Pm, Jmicron, Adp6St0 J05, Adp6S

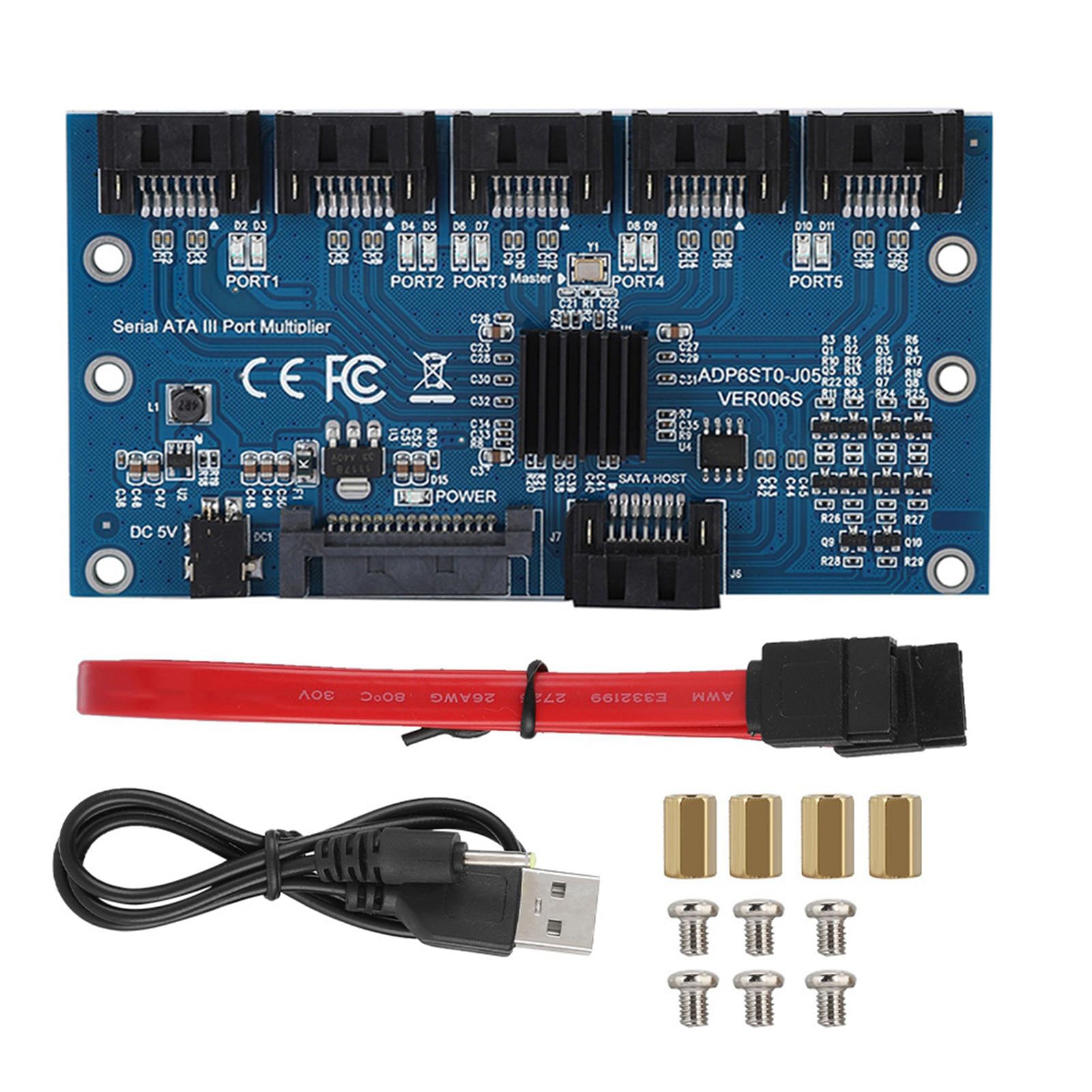

Features: 1. Automatic Speed Up Negotiation. 2. Support Bist And Loopback Mode. 3. Support Staggered Spin Up(Optional). 4. Support Hot Swap. 5. Support Asynchronous Inform. 6. Support Atap Drive. 7. Support Swit Based On Orders And Fi. Compliance: 1. Compliant With Serial Ata Port Multiplier Specifications. 2. Compliant With Serial Ata Port Selector Specifications. 3. Compliant With Ata Phy Series Electrical Specifications Revision 1.0 4. Compliant With Annex Specifications Ata Series High Speed Serialization. Specifications: Product: Sata3.0 1 To 5 Expansion Card Model: Adp6St0 J05&Nbsp;Adp6St0 J02 Product Master: Jmicron Jmb575 Product Package: Kraft Box Product Interface: Sata 7Pin System: For Winxp, Win10 Size: Approx. 10.2*5.5*0.7 Cm/4.02*2.17*0.28 In Package List: 1 * Sata3.0 1 To 5 Expansion Card 1 * Usb Dc Power Cable 1 * Connection Cable 1 * Screw Bag Note: 1. This Expansion Card Needs Motherboard Or Expansion Card To Support Point(Sata Interface Multiplier) Funtion To Identify 5 Hard Disks, Common Motherboard Sata Do Not Support Such Function. If Not, Only One Hard Disk Can Be Identified. 2. Do Plug In Sata Or Dc2.5 Power Cable To Expansion Card. 3. Cable Connection: Plug Sata Input Cable To Motherboard Or Expansion Card To Sata.
