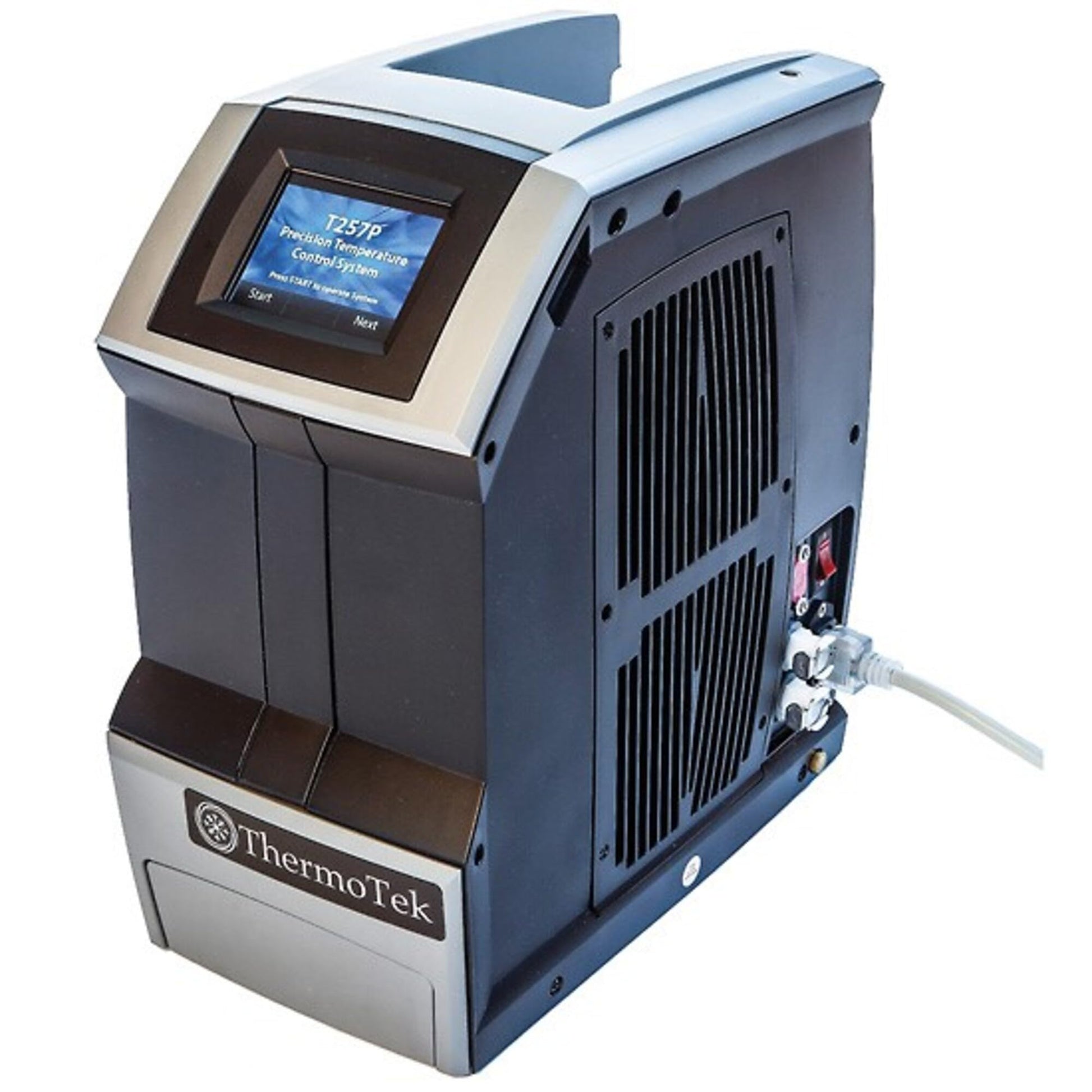

ThermoTek Thermoelectric Recirculating Chiller, 100-240 VAC

Brand: Thermotex

Features:

• Thermoelectric technology offers higher stability than traditional chillers that use compressors and refrigerant
• Powerful but compact—50% smaller and lighter than comparable compressor-driven models
• Core technology has no mechanical moving parts to break down
• Feature leak-free quick-disconnect ports

Release Date: 14-09-2018

model number: 0P9T257P20

Part Number: 0P9T257P20

Details: This solid-state unit contains no refrigerant and have no compressors—thermoelectric heat pump uses semiconductor materials and electric current to extract thermal energy from one region and move it to another. Air-cooled chillers utilize a system in which heat exchange is rejected to the air. Thermoelectric chips have the ability to both heat and cool. Variable control of chips allow chillers to operate using a very small reservoir while maintaining high stability. Use these compact, high-stability recirculating chillers in the lab or in the field. Excellent for laser cooling, process cooling, field temperature control, sample cooling, and distillation condenser. Precise temperature control (±0.1°C) makes them ideal for any application that requires accuracy and reliability. USB & RS-232 data port.
Specifications
Baths Circulators Interface: USB and RS-232
Temperature C: -5
Baths Circulators Power Hz: 50/60
Baths Circulators Pump Type: Variable Drive Centrifugal
Baths Circulators Temperature Stability C: ±0.1
Description: Thermoelectric Recirculating Chiller, 100-240 VAC
Universal Guarantee: 1 year
Baths Circulators Width (in): 7.125
Baths Circulators Max Temperature C: 45
Baths Circulators Power VAC: 100 to 240
Baths Circulators Max Pump Pressure (PSI): 21.75
Baths Circulators Max Pump Pressurembar: 1500
Baths Circulators Height (in): 13.40625
Baths Circulators Cooling Capacity At0C Watts: 210
Baths Circulators Depth (in): 12.203125
Baths Circulators Max Flow Rate Lm (in): 4

Package Dimensions: 18.0 x 17.0 x 12.0 inches
