Twotrees TTC450 Ultra CNC Router Desktop CNC Router 465x465mm Large Work Area, 500W Spindle 3.5-inch Touch Screen, All-Metal 3-Axis Engraving Machine for Wood, Acrylic, MDF, Aluminum, Plastic

Brand: Twotrees

Color: Silver-red

Features:

• 【500W Powerful Spindle with Wide Compatibility】CNC router Equipped with a high-performance 500W spindle motor (upgradeable to 3000W), supporting speeds from 8000 to 30000 RPM. Paired with an ER11 chuck (compatible with 0.5-7mm tools), it effortlessly handles diverse materials: including non-metals like hardwood, MDF, acrylic, and nylon, as well as metals such as aluminum, carbon fiber, and even stainless steel. This enables versatile applications ranging from intricate engraving to deep cutting.
• 【Precision Structure and Exceptional Accuracy】CNC machine Features an all-metal chassis (aluminum + stainless steel) with industrial-grade MGN12H dual linear rails and T8 precision lead screws for exceptional stability and durability. Achieves X/Y-axis positioning accuracy of 0.01mm and Z-axis precision up to 0.0025mm. The system delivers engraving accuracy of ±0.05mm/100mm and supports maximum engraving speeds of 3000mm/min, enabling professional-grade machining details.

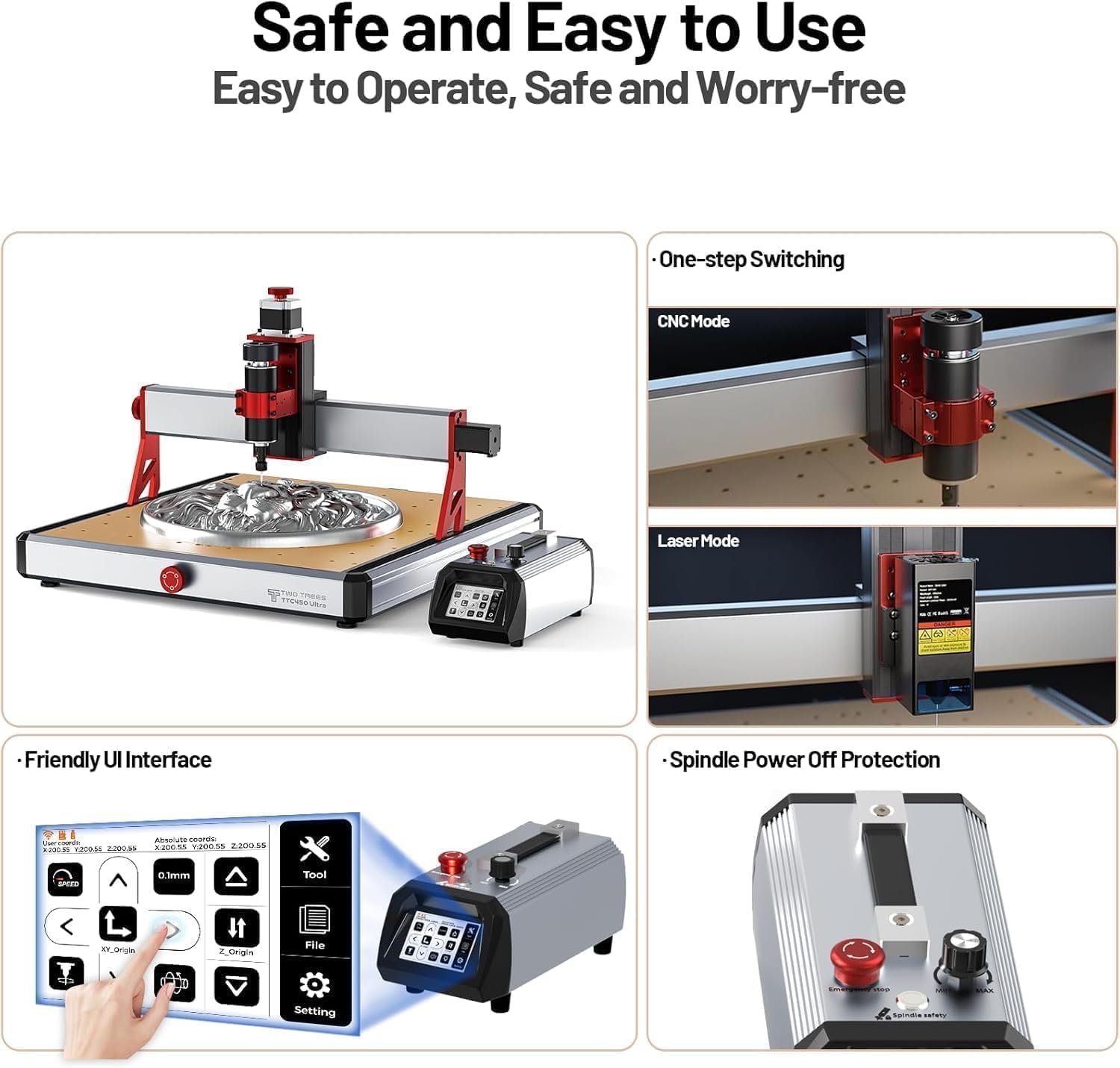

• 【Intelligent Control System & User-Friendly Operation】Features an integrated LKS CNC V1.0 motherboard with a 3.5-inch IPS capacitive touchscreen. Supports GRBL open-source firmware without flashing, and allows switching between CNC and laser modes. CNC wood carving machine Enables offline operation via TF card and USB interfaces, supports multiple languages, and is compatible with mainstream software like ArtCam and Fusion360 for intuitive, straightforward operation.
• 【High Expandability and Safety Assurance】The CNC router machine reserves interfaces for WiFi/Bluetooth modules, supports fourth-axis expansion, external handwheels, and tool-setting kits. Equipped with dual limit switches on XYZ axes, a spindle safety switch, and emergency stop function. Certified by CE/ROHS/FCC and other international standards to ensure safe and reliable operation.
• 【Out-of-the-Box Experience & Comprehensive Support】The CNC router machine woodworkin arrives 90% pre-assembled with a net weight of 19kg and a sturdy structure. The package includes a full set of accessories: various engraving tools, fixtures, wrenches, PP test engraving material, and data cables. We provide clear guidance to help you get started quickly, making it suitable for education, model making, prototype development, or personal DIY projects.

model number: TTC450 Ultra

Part Number: 622100013

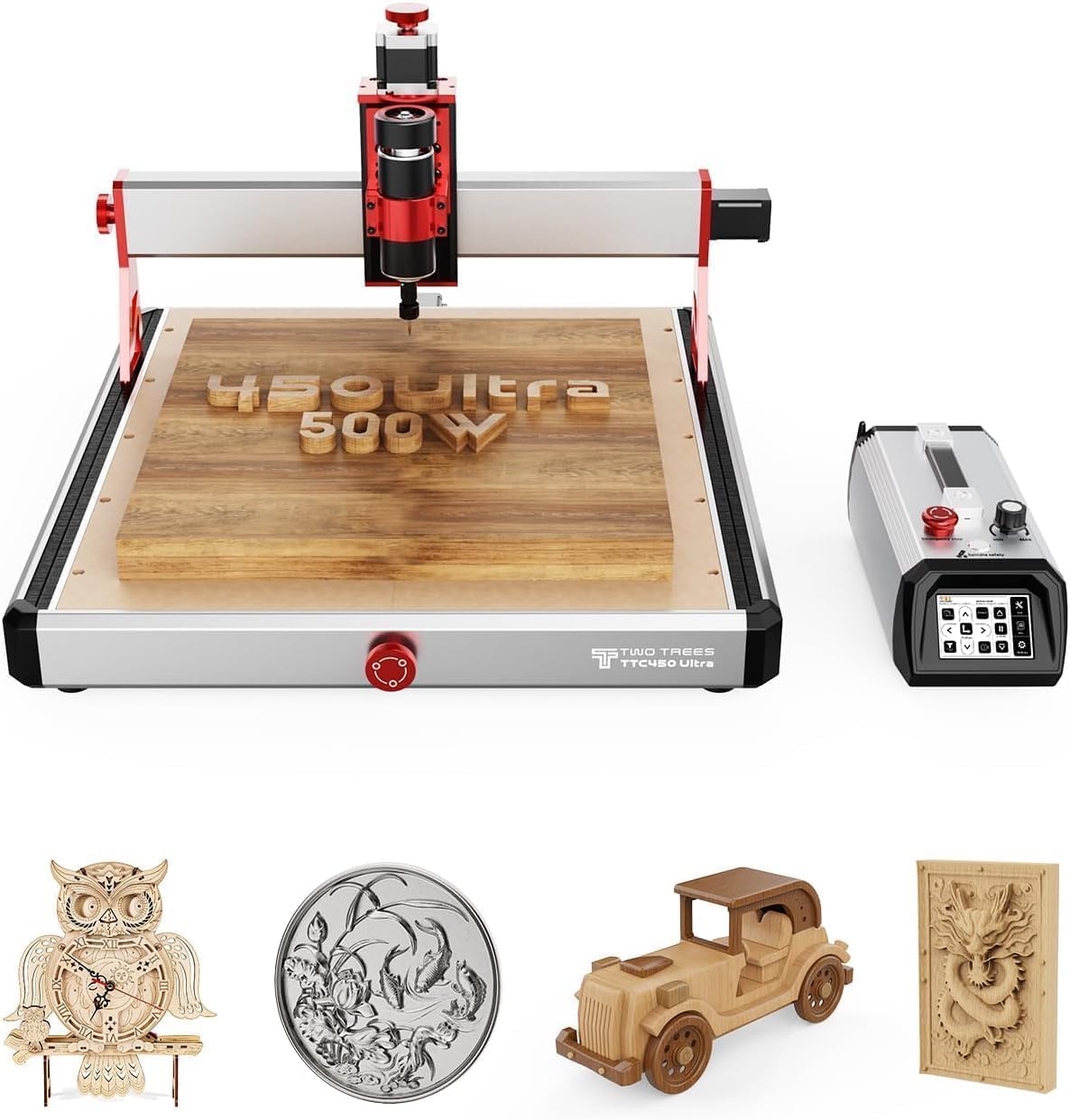

Details: The Twotrees TTC450 Ultra is a professional-grade desktop CNC router machine designed for makers, hobbyists, educators, and small businesses. Whether you're creating custom signs, intricate wood carvings, engraving aluminum, prototyping parts, or teaching STEM concepts, this robust machine offers industrial-level precision in a compact, user-friendly package. Its powerful 500W spindle, large 18" x 18" work area, and intuitive 3.5-inch touchscreen make it the perfect tool to bring your digital designs into the physical world.

Model: TTC450 Ultra

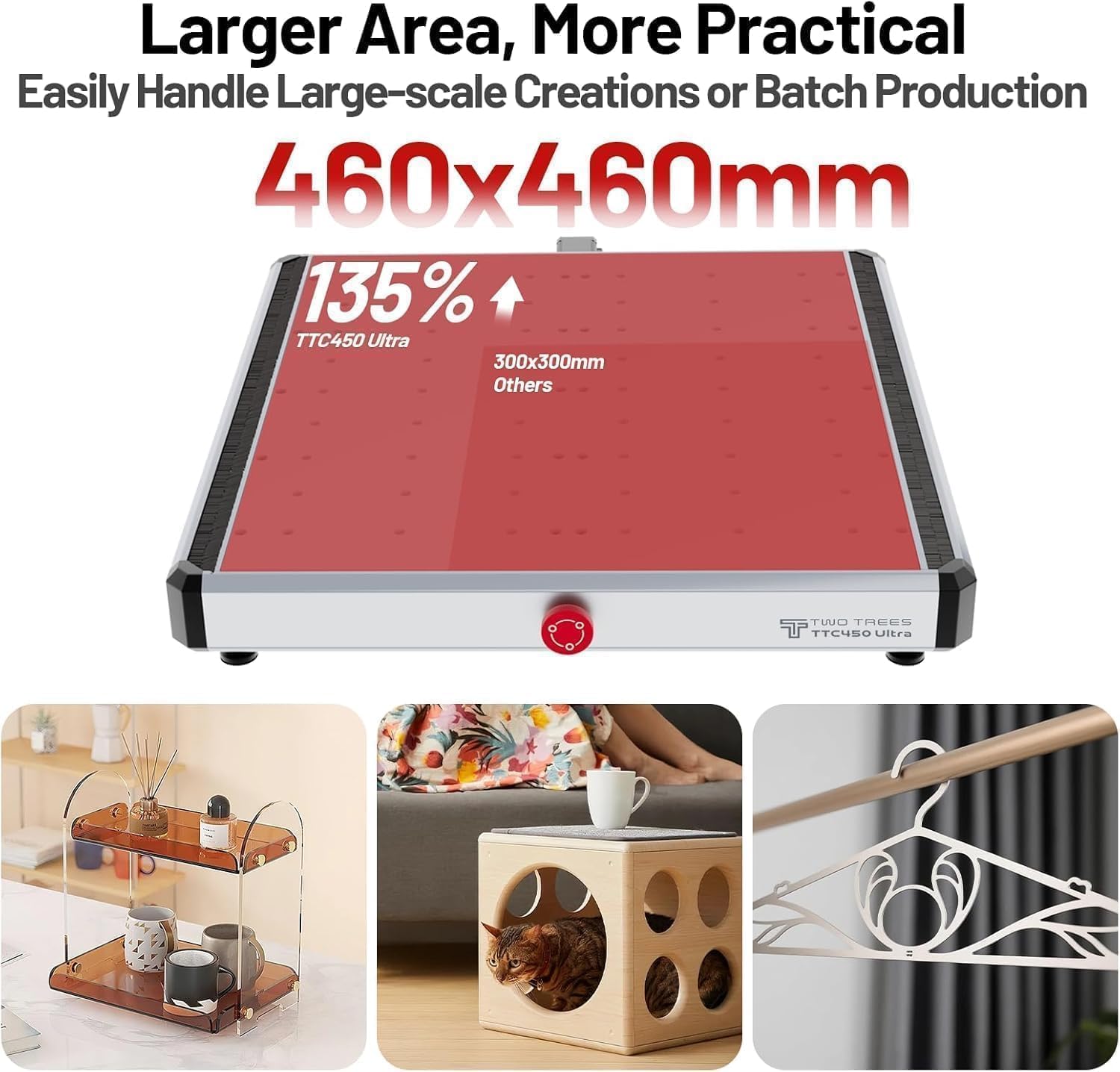

Working Area (WxLxH): 460 x 460 x 100 mm (18.11" x 18.11" x 3.94")
Machine Frame: Aluminum + Stainless Steel + ABS
Spindle (Included): 500W DC, ER11 Collet (0.5-7mm tools)
Spindle Speed: 8,000 – 30,000 RPM
Positioning Accuracy: X/Y: 0.01mm, Z: 0.0025mm
Max Engraving Speed: 3000 mm/min
Stepper Motors: 42 (X,Y) & 57 (Z) High-Torque Steppers
Drivers & Controller: A4988 Drivers, LKS CNC V1.0 Board
Linear Rails: Dual MGN12H on X, Y, and Z axes
Lead Screws: T8 (6mm pitch for X/Y, 4mm pitch for Z)
Limit Switches: Dual optical end-stops on all axes for safety
Display: 3.5" IPS Capacitive Touchscreen (480x320)
Input Power: 100-240V AC, 50/60Hz | Max Power: 80W
Connection: USB, TF Card | WiFi/Bluetooth via optional module

Package Dimensions: 25.0 x 7.0 x 0.9 inches
